Disassembly/Assembly
Diagrams and Spare Parts
Numbers

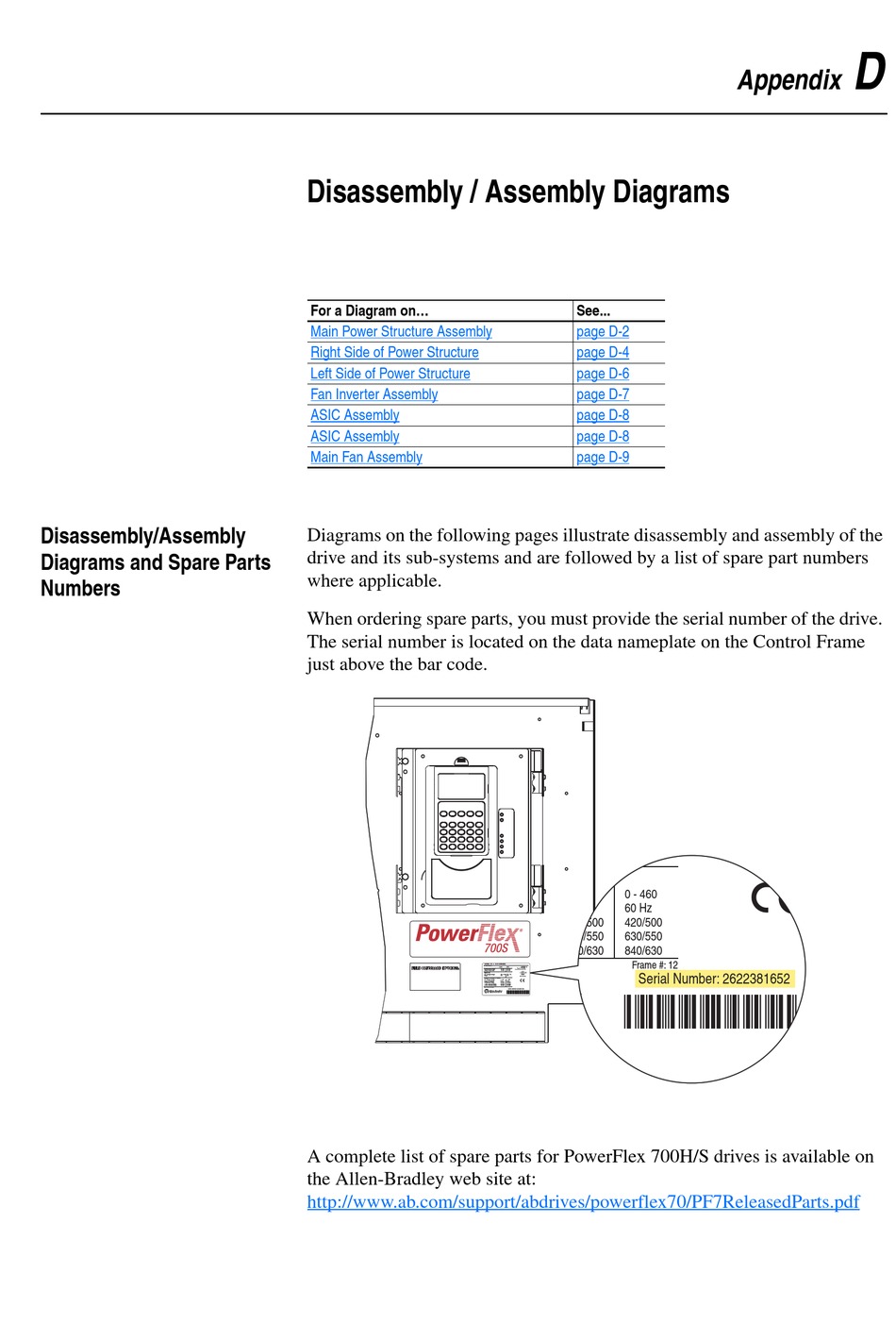

Disassembly / Assembly Diagrams
For a Diagram on...
Main Power Structure Assembly
Right Side of Power Structure
Left Side of Power Structure
Fan Inverter Assembly
ASIC Assembly
ASIC Assembly
Main Fan Assembly
Diagrams on the following pages illustrate disassembly and assembly of the
drive and its sub-systems and are followed by a list of spare part numbers
where applicable.
When ordering spare parts, you must provide the serial number of the drive.
The serial number is located on the data nameplate on the Control Frame
just above the bar code.
Cat No. 20D
UL Open Type/IP00
Normal Duty Power
Heavy Duty Power
Input: DC,
DC Voltage Range
Amps
Output: 3 Phase, 0 - 320Hz
AC Voltage Range
Base Hz (default)
Continuous Amps
1 Min Overload Amps
2 Sec Overload Amps
MFD. in 1989 on Nov 9
MADE IN THE USA (FAC 1B)
A complete list of spare parts for PowerFlex 700H/S drives is available on
the Allen-Bradley web site at:
http://www.ab.com/support/abdrives/powerflex70/PF7ReleasedParts.pdf
See...
page D-2
page D-4
page D-6
page D-7
page D-8
page D-8
page D-9
J 500 N 0 NNNBNNNN
540V
250 kW 450 kW
200 kW 500 kW
462 - 594 583 - 713
350 350
0 - 400 0 - 460
50 Hz 60 Hz
420/500 420/500
630/550 630/550
840/630 840/630
Frame #: 12
Cat No. 20D J 300 N 0 NNNBNNNN
UL Open Type/IP00
540V 650V Series: A
Normal Duty Power 160 kW 250 kW Standard I/O: NONE
Original Firmware No. 2.04
Heavy Duty Power 132 kW 200 kW
U L
Input: DC, C US
Æ Serial Number: 2622381652
DC Voltage Range 462 - 594 583 - 713 LISTED
Amps
350 350 IND CONT EQ
Output: 3 Phase, 0 - 320Hz
AC Voltage Range 0 - 400 0 - 460
Base Hz (default) 50 Hz 60 Hz
Continuous Amps 300/245 300/245
1 Min Overload Amps 330/368 330/368
2 Sec Overload Amps 450/490 450/490 26223816
MFD. in 2005 on Feb 29
Serial Number: 2622381652
2622381652
MADE IN THE USA (FAC 1B)
D
Appendix
Frame #: 10
