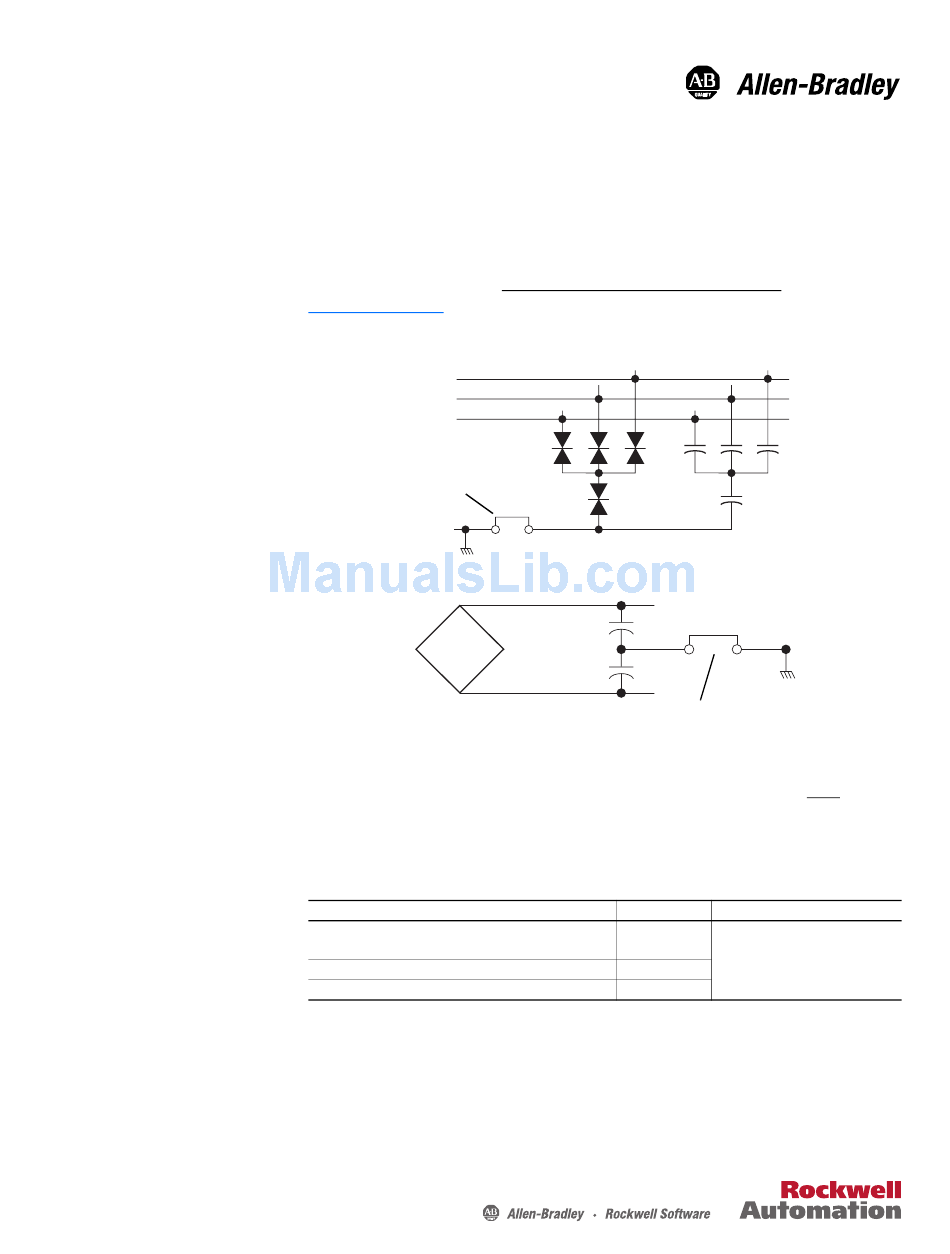

PowerFlex 700S Power Jumpers
Frames 1...6
Installation Instructions
The PowerFlex 700S drive contains protective MOVs and Common Mode
Capacitors referenced to ground (see below). To guard against unstable
operation and/or damage, the drive must be properly configured as shown in
Table A on page
2.
MOV and AC EMI Capacitor Phase to Ground
R/L1
S/L2
T/L3
Jumper-Wire
Important: All PowerFlex 700S drives, frames 1...6, are shipped with the DC
bus common mode capacitors referenced to ground.
For additional general information, refer to:
Title
PowerFlex 700S Phase II Drives, Frames 1...6
Installation Instructions
Wiring and Grounding Guidelines for PWM AC Drives DRIVES-IN001
Guarding Against Electrostatic Damage
Common Mode Capacitor to Ground
DC+
DC–
Jumper-Wire
Publication
20D-IN024
8000-4.5.2
Available Online at ...
www.rockwellautomation.com/
literature
Publication 20D-IN027A-EN-P
