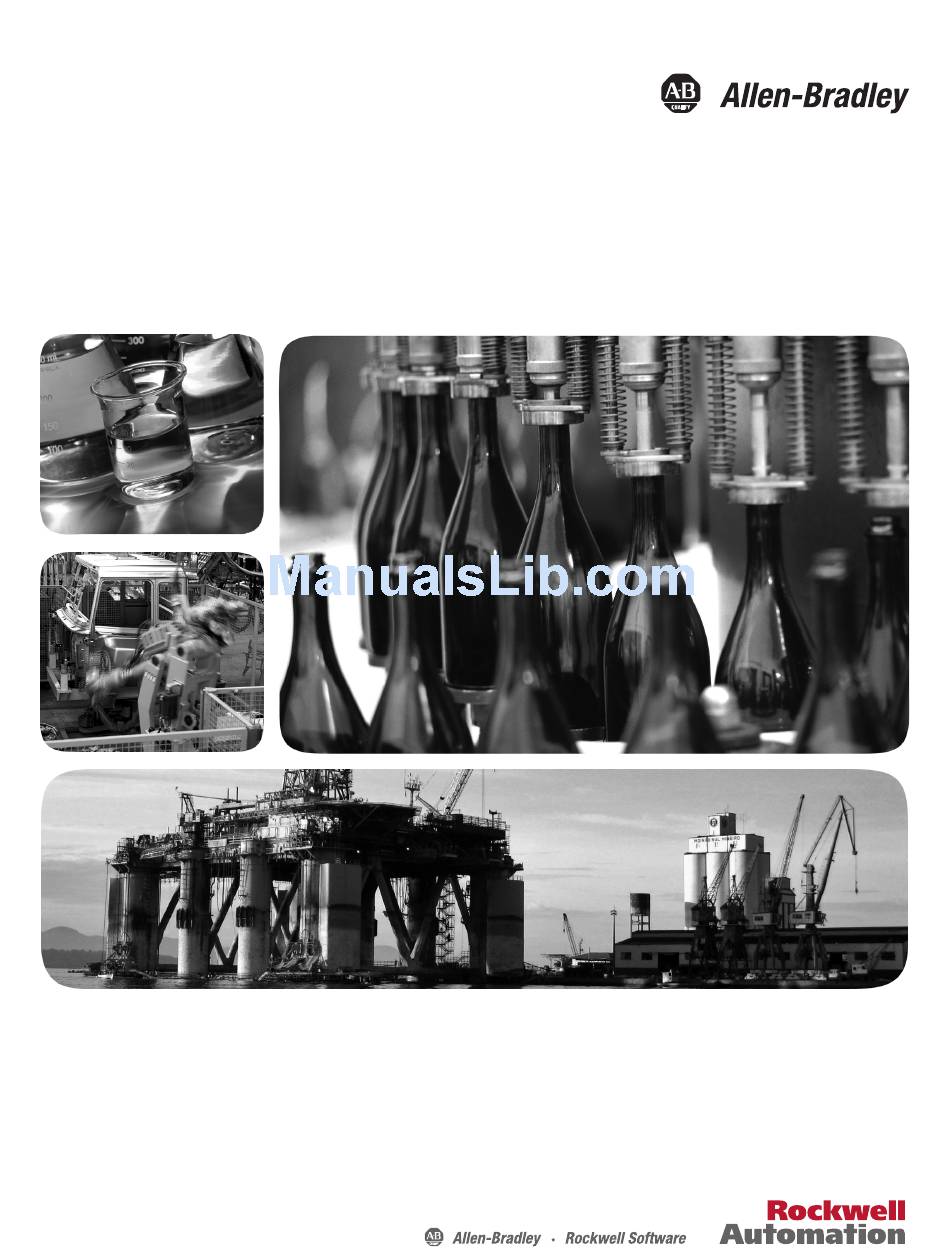

Programming Manual
Logix5000 Controllers Messages
Catalog Numbers 1756-L1, 1756-L55, 1756-L61, 1756-L62, 1756-L63, 1769-L31, 1769-L32C, 1769-L32E, 1769-L35CR, 1769-L35E,
1789-L60, 1794-L34, PowerFlex 700S/SE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1756-L5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Allen-Bradley 1756-L5

  • Page 1 Programming Manual Logix5000 Controllers Messages Catalog Numbers 1756-L1, 1756-L55, 1756-L61, 1756-L62, 1756-L63, 1769-L31, 1769-L32C, 1769-L32E, 1769-L35CR, 1769-L35E, 1789-L60, 1794-L34, PowerFlex 700S/SE...
  • Page 2 Identifies information that is critical for successful application and understanding of the product. IMPORTANT Allen-Bradley, Rockwell Automation, Logix5000, RSLogix 5000, ControlLogix, GuardLogix, CompactLogix, PowerFlex, SoftLogix, Rockwell Software, PLC-2, PLC-3, PLC-5, SLC, SLC 500, and TechConnect are trademarks of Rockwell Automation, Inc.
  • Page 3: New And Updated Information

    Summary of Changes This manual contains new and updated information. Changes throughout this revision are marked by change bars, as shown to the right of this paragraph. This table contains the changes made to this revision. New and Updated Information Topic Page Added information on the Large Connection checkbox to second footnote under...
  • Page 4 Summary of Changes Notes: Rockwell Automation Publication 1756-PM012D-EN-P - November 2011...
  • Page 5: Table Of Contents

    Table of Contents Summary of Changes New and Updated Information........3 Table of Contents Preface Purpose of This Manual.
  • Page 6 Table of Contents Notes: Rockwell Automation Publication 1756-PM012D-EN-P - November 2011...
  • Page 7: Purpose Of This Manual

    Provides declarations of conformity, certificates, and other certification details. You can view or download publications at http://www.rockwellautomation.com/ literature/. To order paper copies of technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative. Rockwell Automation Publication 1756-PM012D-EN-P - November 2011...
  • Page 8 Preface Notes: Rockwell Automation Publication 1756-PM012D-EN-P - November 2011...
  • Page 9: Introduction

    Chapter Controller Messages Introduction This section describes how to transfer data between controllers (send or receive data) by executing a message (MSG) instruction. Cache connections and buffers are explained so you can correctly program the controller. Supported Data Types The following data types are supported when sending CIP messages: •...
  • Page 10: Message Queue

    Chapter 1 Controller Messages This diagram shows how the controller processes MSG instructions. Message Queue Unconnected Outgoing Cache List Buffers (10 to 40) Cached? Throttle total Destination Device Description The controller scans the MSG instruction and its rung-condition-in goes true. The message will pass to a throttle, which has 16 positions. If the throttle is full, the message will stay enabled but is held until another controller scan.
  • Page 11: Cache List

    Controller Messages Chapter 1 Description The controller scans the MSG instruction. The rung-condition-in for the MSG instruction is true. The EN bit is set. The MSG instruction attempts to enter the queue but there are 16 throttle positions. If all 16 are filled and a 17th message is executed, the message goes enabled, but ...
  • Page 12: Unconnected Buffers

    Chapter 1 Controller Messages The controller has these limits on the number of connections that you can cache: If you have this software and Then you can cache firmware revision 11.x or earlier • Block transfer messages for up to 16 connections •...
  • Page 13: Guidelines

    Controller Messages Chapter 1 If a MSG instruction uses a connection, the instruction uses an unconnected buffer when it first executes to establish a connection. If you configure the instruction to cache the connection, it no longer requires an unconnected buffer once the connection is established.
  • Page 14: Get The Number Of Unconnected Buffers

    Chapter 1 Controller Messages Get the Number of Unconnected Buffers To determine the number of unconnected buffers that the controller currently has available, configure a Message (MSG) instruction as follows. On this tab For this item Type or select Configuration Message Type CIP Generic Service Type...
  • Page 15 Controller Messages Chapter 1 To change the number of unconnected buffers of the controller, configure a Message (MSG) instruction as follows. On this tab For this item Type or select Configuration Message Type CIP Generic Service Type Custom Service Code Class Instance Attribute...
  • Page 16: Convert Between Ints And Dints

    Chapter 1 Controller Messages Set the Number of Unconnected Buffers EXAMPLE If S:FS = 1 (first scan), then set the number of unconnected buffers for the controller. Source_Array[0] = 1 Source_Array[1] = 0 Source_Array[2] = 17 Source_Array[3] = 0 Source_Array[4] = 12 (The number of unconnected buffers that you want. In this example, we want 12 buffers.) If UCB_Set.EN = 0 (MSG instruction is not already enabled) then MSG instruction sets the number of unconnected buffers = Source_Array[4].
  • Page 17 Controller Messages Chapter 1 the message and DINTs throughout the project. This increases the efficiency of your project. Read 16-Bit Integers Data from the Buffer of INTs DINTs for use in the device project Word 1 INT_Buffer[0] DINT_Array[0] Word 2 INT_Buffer[1] DINT_Array[1] Word 3...
  • Page 18 Chapter 1 Controller Messages The FAL instruction sets DINT_Array = INT_Buffer. This converts the values to 32-bit integers (DINTs). Write integer values to a PLC-5 controller. EXAMPLE If Condition_2 = 1 then reset the FAL instruction. The FAL instruction sets INT_Buffer = DINT_Array. This converts the values to 16-bit integers (INTs). If Control_2.DN = 1 (FAL instruction has converted the DINTs to INTs) and Msg_2.EN = 0 (MSG instruction is not already enabled) then write the integers in INT_Buffer (3 INTs) to the PLC-5 controller.
  • Page 19: Introduction

    Chapter Manage Multiple Messages Introduction You can use ladder logic to send groups of message (MSG) instructions in sequence. • To be processed, each MSG instruction must enter the message queue. • The queue holds 48 MSGs. • If more than 16 MSGs are enabled at one time, the message throttle will prevent some of the messages from being able to be placed into the message queue.
  • Page 20: Initialize The Logic

    Chapter 2 Manage Multiple Messages Initialize the Logic If S:FS = 1 (first scan), then initialize the MSGs: Msg_Group = 0, which disables all the MSGs. Msg_Group.0 =1, which enables the first group of MSGs. Restart the Sequence If the MSGs in group 2 (last group) are currently enabled (Msg_Group.2 = 1) and Msg_4 is done or errored and Msg_5 is done or errored then restart the sequence of MSGs with the first group:...
  • Page 21: Enable The Second Group Of Msgs

    Manage Multiple Messages Chapter 2 Enable the Second Group of MSGs If the MSGs in group 0 are currently enabled (Msg_Group.0 = 1) and Msg_0 is done or errored and Msg_1 is done or errored then Msg_Group.0 = 0. This disables the current group of MSGs. Msg_Group.1 = 1.
  • Page 22: Send The Next Group Of Msgs

    Chapter 2 Manage Multiple Messages Send the Next Group of MSGs If Msg_Group.1 changes from 0 -> 1 then send Msg_2. send Msg_3. Rockwell Automation Publication 1756-PM012D-EN-P - November 2011...
  • Page 23: Introduction

    Chapter Send a Message to Multiple Controllers Introduction You can program a single message instruction to communicate with multiple controllers. To reconfigure a MSG instruction during runtime, write new values to the members of the MESSAGE data type. In the MESSAGE data type, the RemoteElement member stores the tag name or address of the data in the IMPORTANT controller that receives the message.
  • Page 24: Set Up The I/O Configuration

    Chapter 3 Send a Message to Multiple Controllers You need to complete the following to send a message to multiple controllers: • Set Up the I/O Configuration • Define Your Source and Destination Elements • Create the MESSAGE_ CONFIGURATION Data Type •...
  • Page 25: Create The Message_ Configuration Data Type

    Send a Message to Multiple Controllers Chapter 3 1. Use the following worksheet to organize the tag names in the local and remote controllers. Name of Remote Controller Tag or Address of Data in Remote Controller Tag in This Controller local_array[0] local_array[1] local_array[2]...
  • Page 26: Create The Configuration Array

    Chapter 3 Send a Message to Multiple Controllers To store the configuration variables for the message to each controller, create the Create New Data Type following user-defined data type. Controller Your_Project Data Type: MESSAGE_CONFIGURATION Tasks Name: MESSAGE_CONFIGURATION Motion Groups Description: Configuration properties for a message to another controller Trends Members −...
  • Page 27 Send a Message to Multiple Controllers Chapter 3 2. Into the message_config array, enter the path to the first controller that receives the message. Tag Name Value − message_config {…} − message_config[0] {…} Right-click and select Go To > Configure. message_config[0].Path message_config[0].RemoteElement For example:...
  • Page 28: Get The Size Of The Local Array

    Chapter 3 Send a Message to Multiple Controllers 4. Enter the path and remote element for each additional controller. Tag Name Value − message_config {…} − message_config[0] {…} message_config[0].Path message_config[0].RemoteElement − message_config[1] {…} message_config[1].Path message_config[1].RemoteElement Get the Size of the Local Array 43051 •...
  • Page 29: Load The Message Properties For A Controller

    Send a Message to Multiple Controllers Chapter 3 Load the Message Properties for a Controller 43051 1. The XIO instruction conditions the rung to continuously send the message. 2. The first COP instruction loads the path for the message. The value of index determines which element the instruction loads from message_config.
  • Page 30: Configure The Message

    Chapter 3 Send a Message to Multiple Controllers Configure the Message Although the logic controls the remote element and path for the message, there is initial configuration. IMPORTANT 43054 Clear the Cache Connections checkbox. Table 1 - Message Configuration On this tab If you want to For this item Type or select...
  • Page 31: Step To The Next Controller

    Send a Message to Multiple Controllers Chapter 3 Step to the Next Controller 43051 After the MSG instruction sends the message: 1. the first ADD instruction increments index. This lets the logic load the configuration properties for the next controller into the MSG instruction. 2.
  • Page 32 Chapter 3 Send a Message to Multiple Controllers Notes: Rockwell Automation Publication 1756-PM012D-EN-P - November 2011...
  • Page 33 Index array ladder logic controller configuration 26 manage messages 19 block transfer message guidelines 13 cache connection 11 buffer controller 9 convert between 16 and 32-bit data 16 for unconnected message 12 example illustration 10 guidelines 13 limits 10 manage multiple messages 19 cache processing 10 connection 11...
  • Page 34 Index Notes: Rockwell Automation Publication 1756-PM012D-EN-P - November 2011...
  • Page 36 Rockwell Automation Support Rockwell Automation provides technical information on the Web to assist you in using its products. At http://www.rockwellautomation.com/support/, you can find technical manuals, a knowledge base of FAQs, technical and application notes, sample code and links to software service packs, and a MySupport feature that you can customize to make the best use of these tools.
