Introduction
Reference Materials
®

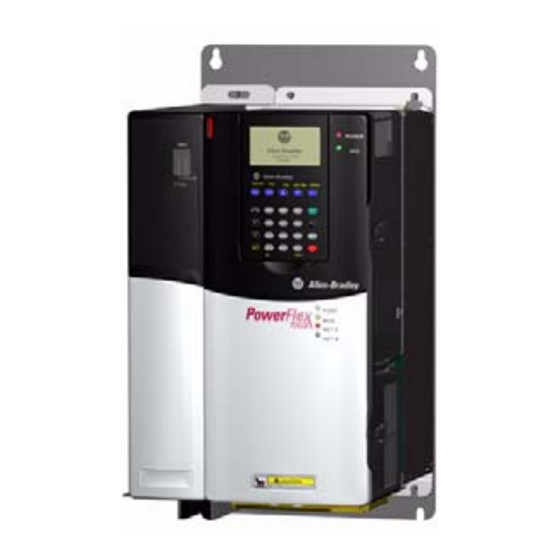

PowerFlex
Frequency AC Drive - Phase I
(Frames 1 - 6)
This document is designed to guide you through the basic steps needed to
install, start-up, and program the PowerFlex® 700S Adjustable Frequency
AC - Phase I drive for Frames 1 - 6. The information provided in this
document does not replace the user manual and is intended for
qualified personnel only. For detailed PowerFlex 700S information refer to
the appropriate publications listed below.
Allen-Bradley publications are available on the internet at:
www.rockwellautomation.com/literature.
Title
PowerFlex 700S Drives with Phase I Control User Manual
PowerFlex 700S Drives with Phase I Control Reference Manual
PowerFlex 700S and DriveLogix
PowerFlex 700S / 700H High Power Installation Instructions (Frames 9 - 12)
Wiring and Grounding Guidelines for Pulse Width Modulated (PWM) AC Drives DRIVES-IN001
700S Adjustable
™
Firmware Release Notes
Quick Start
Publication
20D-UM001
PFLEX-RM002
20D-RN007
PFLEX-IN006
