Tape Drive Installation

5. Attach the internal SCSI cable to the connector panel using two screw locks

(supplied).

CAUTION: The screw locks may be damaged if they are overtightened with a nut

driver. The screw threads have been treated with a thread-locking compound, so only

moderate tightening is necessary.

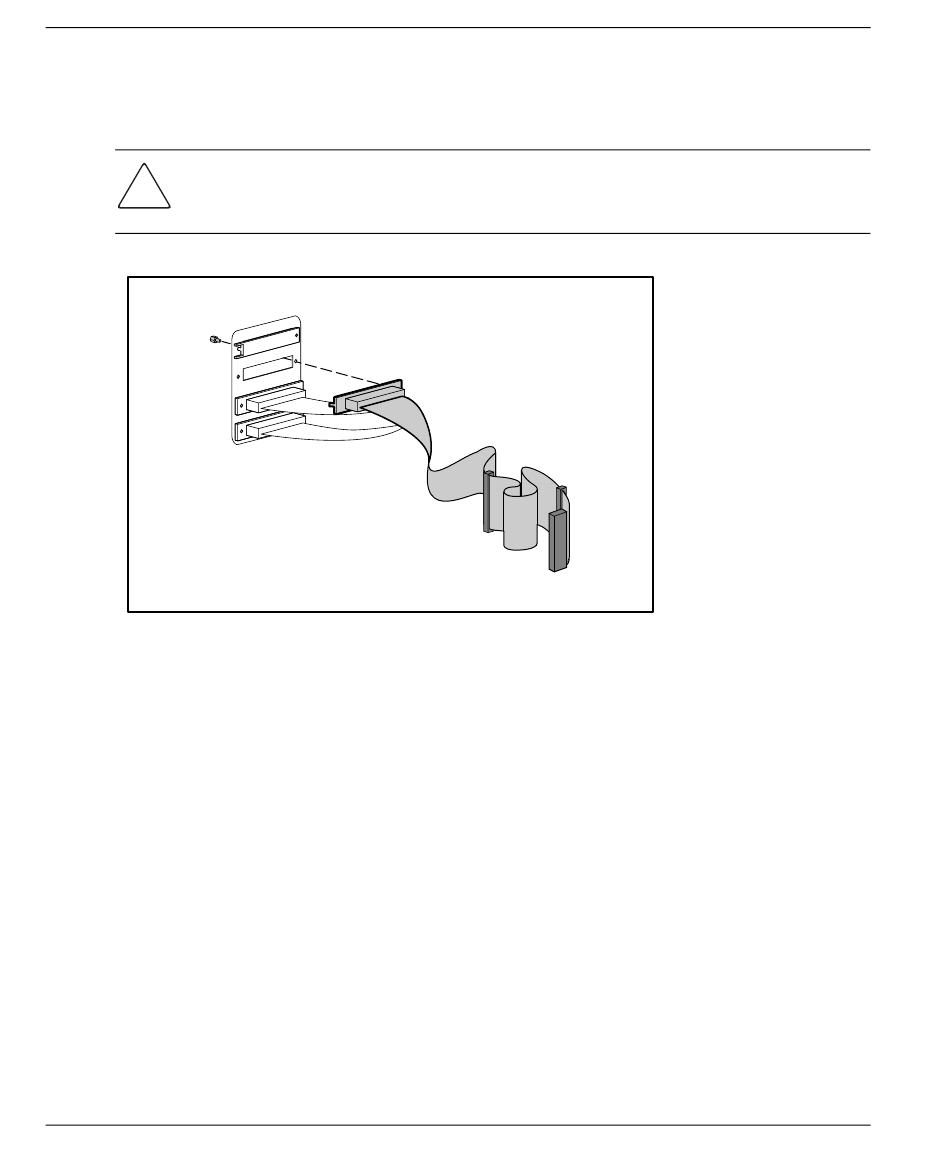

Figure 2–5: Attaching the internal SCSI cable to the connector panel

2–6

StorageWorks by Compaq 3U Rackmount Enclosure Reference Guide
