8. After the tape drive is aligned, secure the tape drive with retaining screws.
9. Repeat Steps 5 through 7 for all tape drives to be installed.
10. Place the slide-out drive tray in the enclosure at an angle and lay it flat. Then, slide
it toward the front of the enclosure.
NOTE: Make sure that the cut outs on the drive cage line up with the tabs on the enclosure.

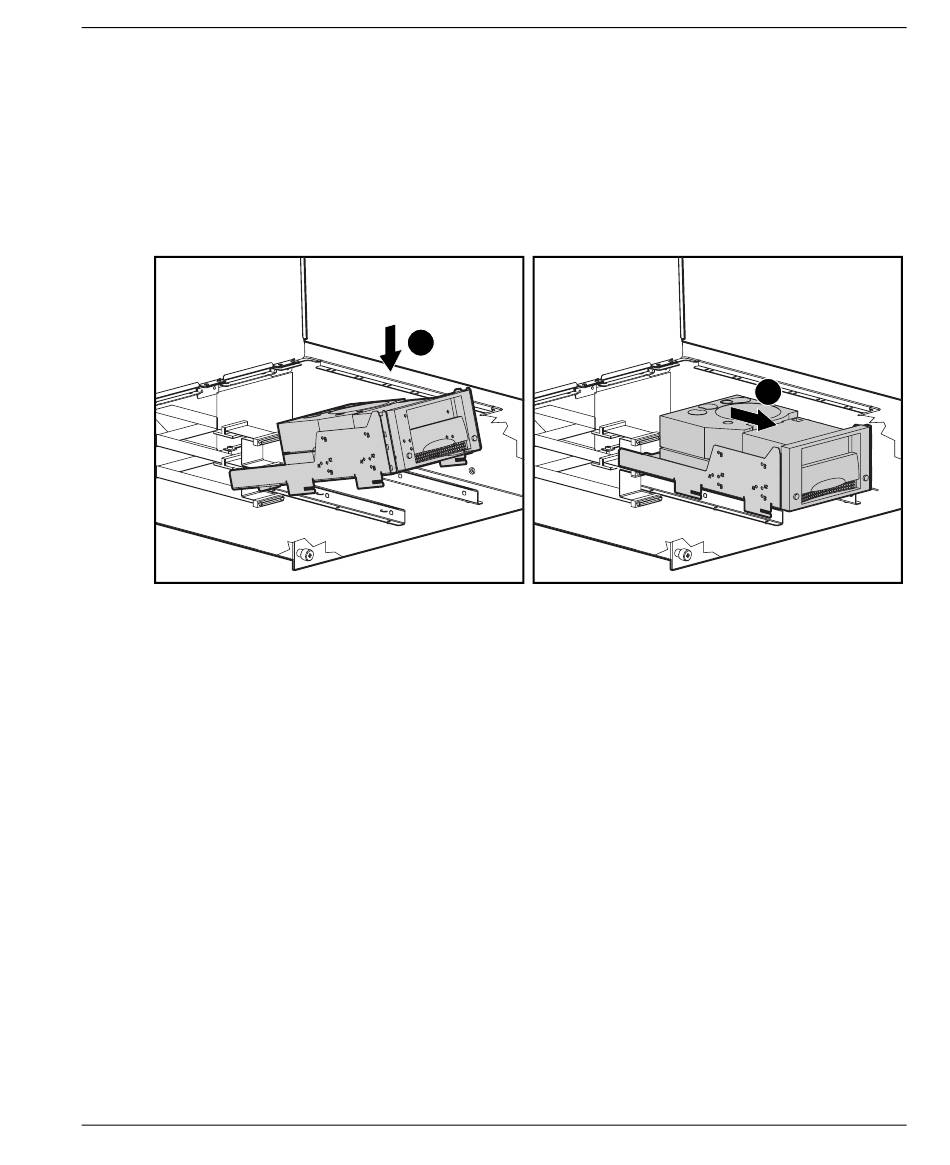

Figure 2–2: Installing the slide-out drive tray
11. Secure the tape drive assembly by tightening the thumbscrew.
NOTE: It is not necessary to replace the shipping screw.
12. After the slide-out drive tray is installed, connect the SCSI connector and the
power supply to the tape drives.
