Cable Management System

The 3U Rackmount Enclosure ships with a cable management system. This system
was designed to better assist you when maintenance is needed.
The following figure shows how the cable management system channels the system
cables along the back of the storage enclosure and to the connection points on the
rack.

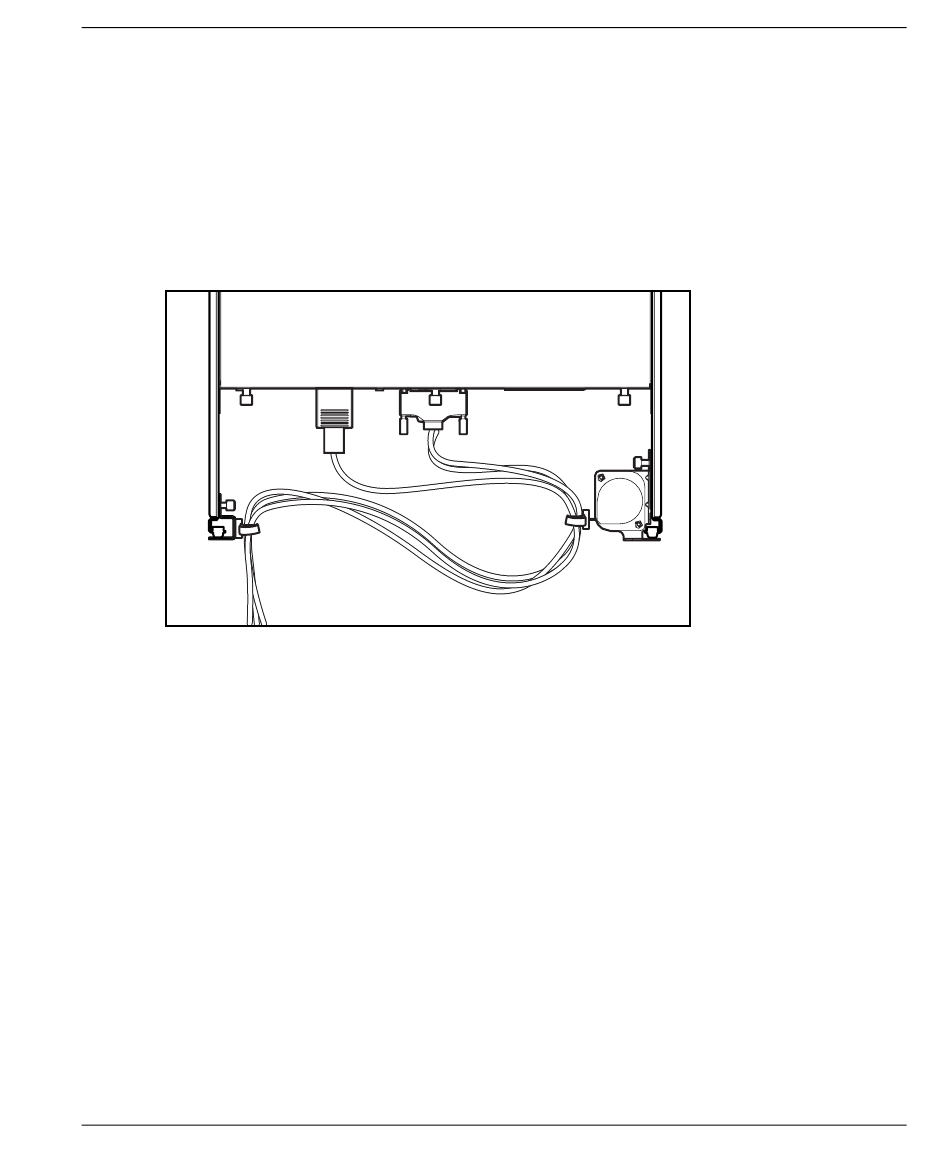

Figure 1–2: Cables routed at the rear of the enclosure
