3.2.20 P6, Stereo Line Input Connector
The P6 connector is provides a stereo line input to the TVL320AIC32 on the EVM. The
upper connector is the left channel, and the lower connector is the right channel. A view
of the connector from the card edge is shown in the figure below. The signals present
on this connector are defined in the following table.
3-16
Left
(upper)
Right
(lower)

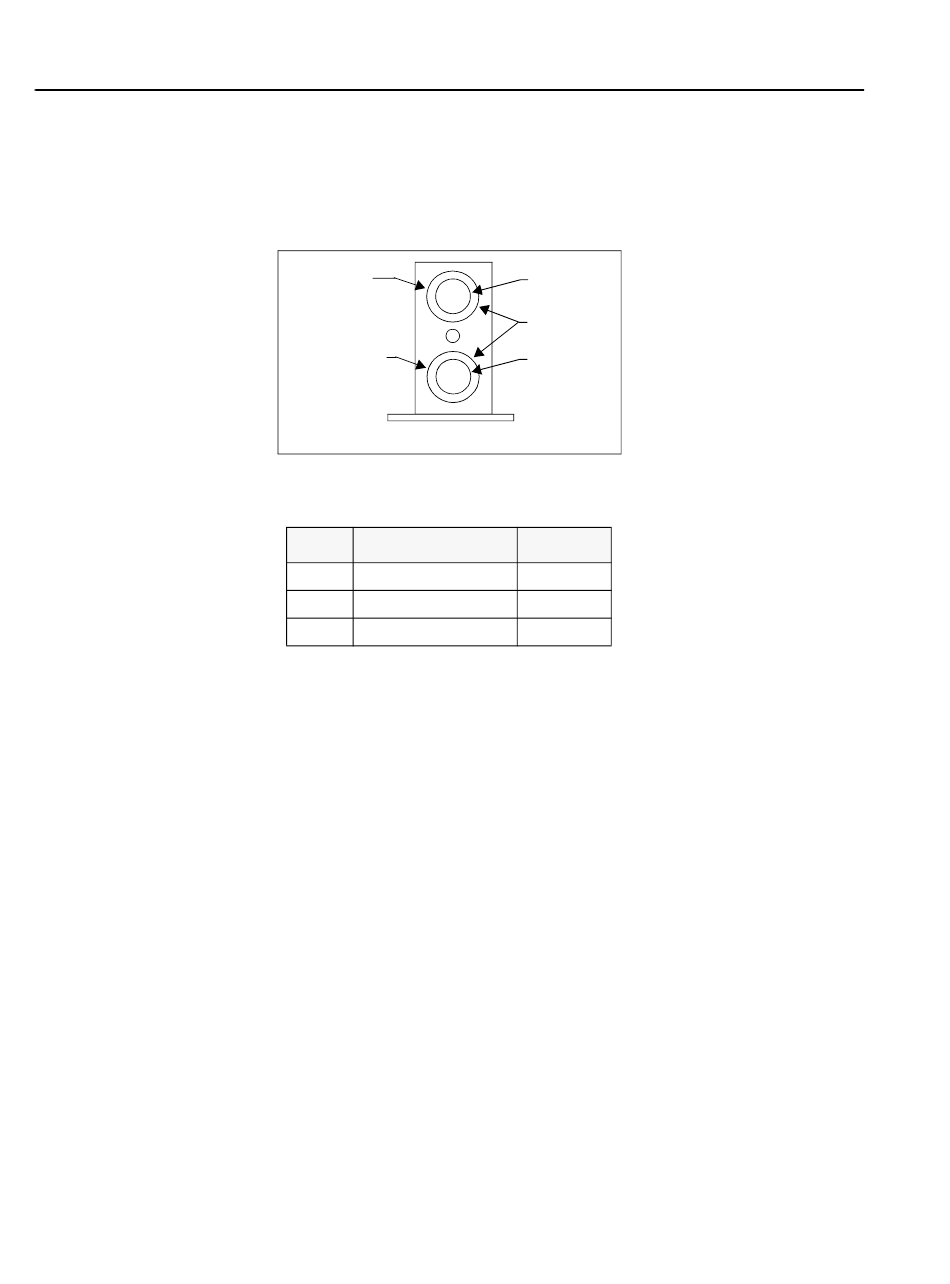

Figure 3-17, P6, Line In/Mic Interface
Table 10: P6, Line In/Mic Interface
Pin # Signal
1 Isolated Ground
2 LINE1L
3 LINE2L
Pin 2
Pin 1
Pin 3
Input
Mic
Mic
Mic
