3.2.16 P2, Video Out
Connector P2 is a four pin mini din connector which interfaces to an S-video output
display device. The ADV7343 drives this output via a THS7314 video driver. This
connector brings out the DAC B and DAC C. Do NOT plug into this connector with the
power on. The figure below shows this connector as viewed from the card edge.
3.2.17 P3, S/PDIF Out (Optical)
P3 is an optical transmitter connector used as an output from the McASP1 AxR[0]
signal on the TMS320DM6467 DSP. This connector brings out an optical S/PDIF
signal. Do NOT plug into this connector with the power on.
3.2.18 P4, Headphone Connector
Connector P4 is a headphone/speaker jack. It can drive standard headphones or a
high impedance speaker directly. The standard 3.5 mm jack is shown in the figure
below.
3-14
Pin 3
Pin 1

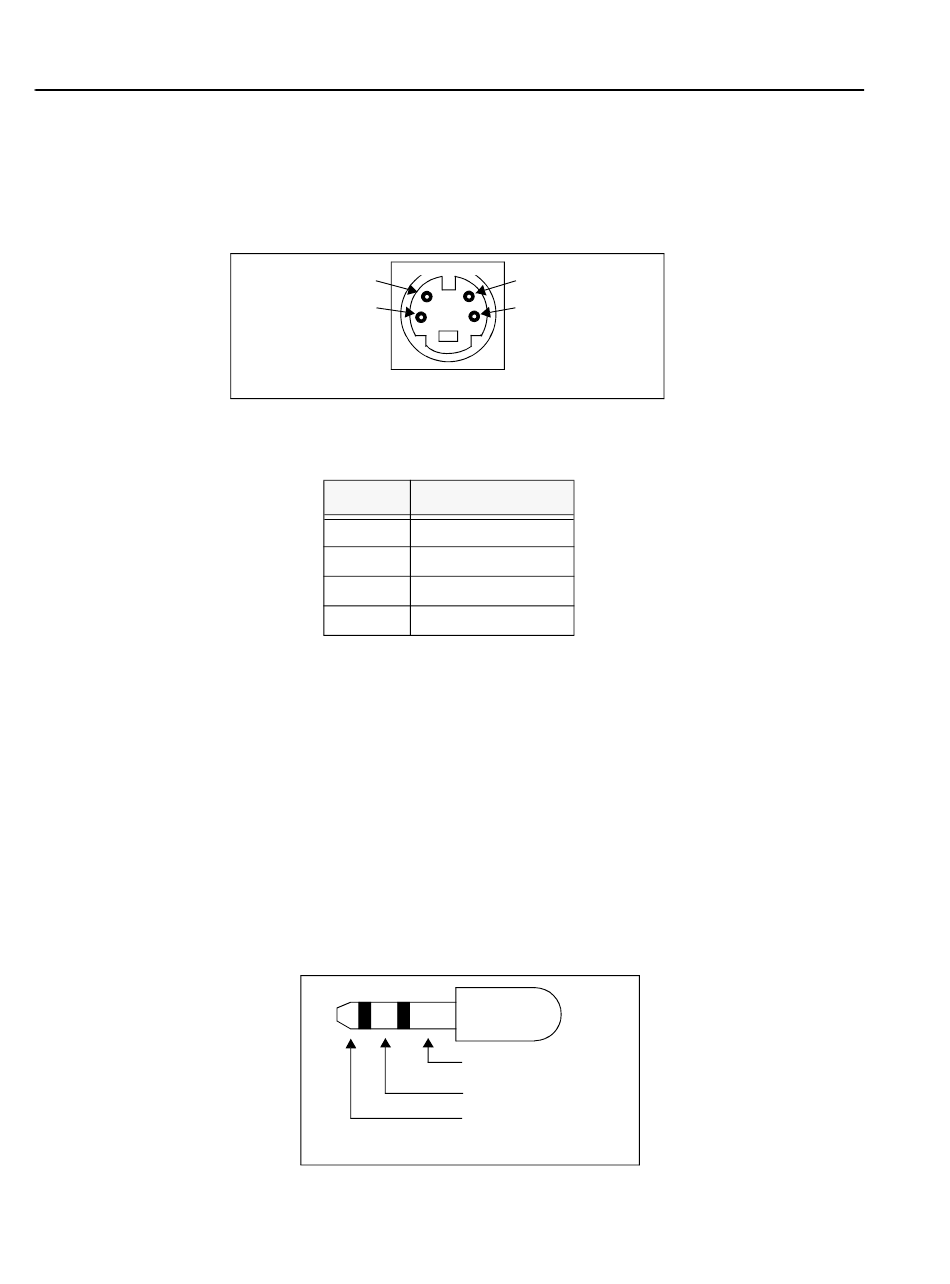

Figure 3-14, P2, Front View, Mini Din Connector
Table 8: P2, Video Out, Mini Din Connector
Pin #
1
2
3
4
Figure 3-15, Headphone Jack
Pin 4
Pin 2
Signal Name
Ground
Ground
Luma
Chroma
Ground
Right Headphone
Left Headphone
