3.2.19 P5, Stereo Line Output Connector
The P5 connector is provides a stereo output from the TVL320AIC32 on the EVM.
The upper connector is the left channel, and the lower connector is the right channel.
A view of the connector from the card edge is shown in the figure below. The signals
present on this connector are defined in the following table.
Left
(upper)
Right
(lower)

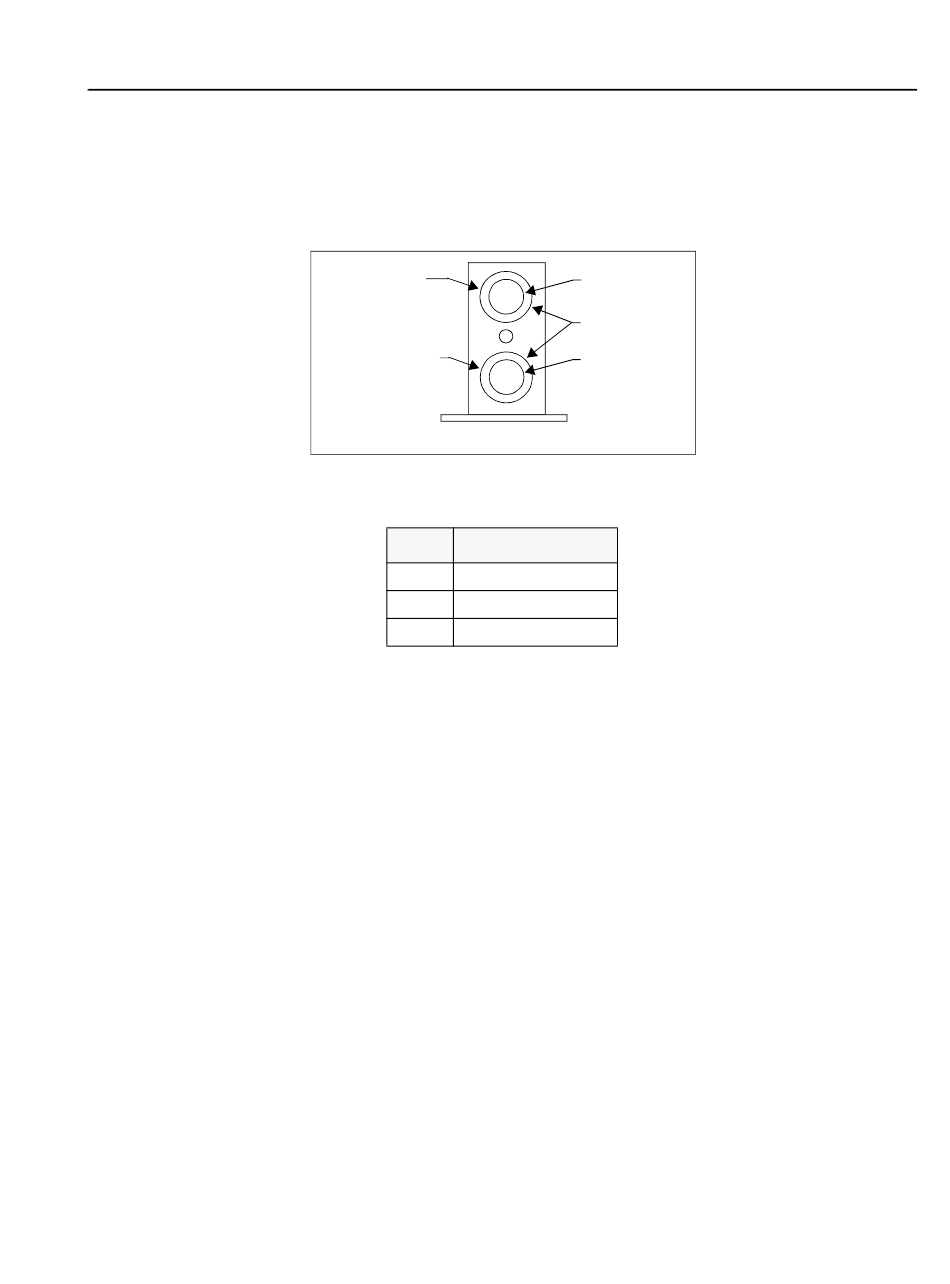

Figure 3-16, P5, Stereo Output Connector
Table 9: P5, Stereo Output Connector
Pin #
1 Isolated Ground
2 LEFT_LO+
3 RIGHT_LO+
Pin 2
Pin 1
Pin 3
Signal
