TM
eZdsp
for the TMS320F2804x

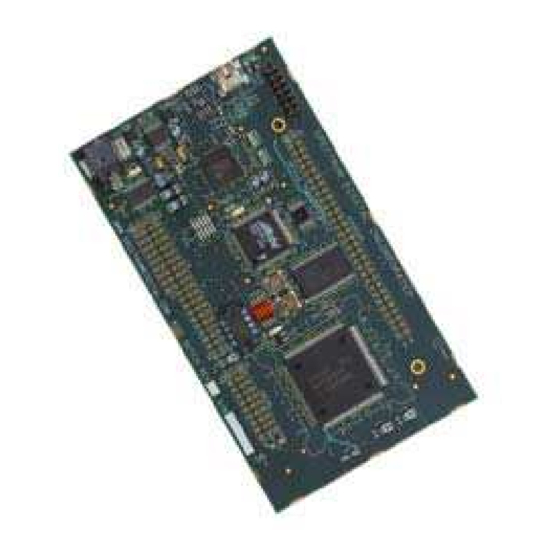

eZdsp Board
System Requirements
•
500MB of free hard disk space
•
Microsoft Windows™ 2000/XP
•
128MB of RAM
•
16-bit color display
•
CD-ROM Drive
Service and Support
Web
http://support.spectrumdigital.com
E-Mail
support@spectrumdigital.com
12502 Exchange Dr., Ste 440, Stafford, TX. 77477
Quick Start Installation Guide
Kit Contents
+5V Universal
Power Supply
eZdsp Code Composer
Studio CD ROM
509166-4001A
T:281.494.4505, F:281.494.5310
USB Cable
Description
The F28xx eZdsp is an all-in-one evaluation platform for
the TMS320F28xx Digital Signal Processor from Texas
Instruments. An on-board JTAG emulator allows debug
from Code Composer Studio through your PC's USB port.
This kit contains everything you need to get started with TI
DSPs. It can also be used with the full version of Code
Composer Studio and an external JTAG emulator.
AC Power
Cord
Page 1 of 4
www.spectrumdigital.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Spectrum Digital eZdsp F28 Series
Summary of Contents for Spectrum Digital eZdsp F28 Series
- Page 1 eZdsp for the TMS320F2804x Quick Start Installation Guide Kit Contents +5V Universal AC Power Power Supply eZdsp Board Cord eZdsp Code Composer USB Cable Studio CD ROM System Requirements Description • 500MB of free hard disk space The F28xx eZdsp is an all-in-one evaluation platform for •...
- Page 2 Install eZdsp Content from the CD-ROM Connect the included +5V power adapter brick to your AC power source using the AC power cord. Before you install the eZdsp software, please make sure you are using Administrator privileges and any virus Apply power to the eZdsp by connecting the power checking software is turned off.
- Page 3 (1) year after the date of purchase. For a product the enumeration status. to be considered "in warranty", Spectrum Digital must be notified of the defect within one (1) year after being purchased from Spectrum Digital or one of its authorized resellers.
- Page 4 509166-4001A Page 4 of 4 12502 Exchange Dr., Ste 440, Stafford, TX. 77477 T:281.494.4505, F:281.494.5310 www.spectrumdigital.com...
