3.2.12 J13, Composite Video In
J13 is an RCA jack used as a video input to the TVP51467 video decoder. This
connector brings in a video signal to the TVP5147. Do NOT plug into this
connector with the power on. The figure below shows this connector as viewed from the
card edge.
Pin 2, Shield (ground)
Pin 1, Signal Input

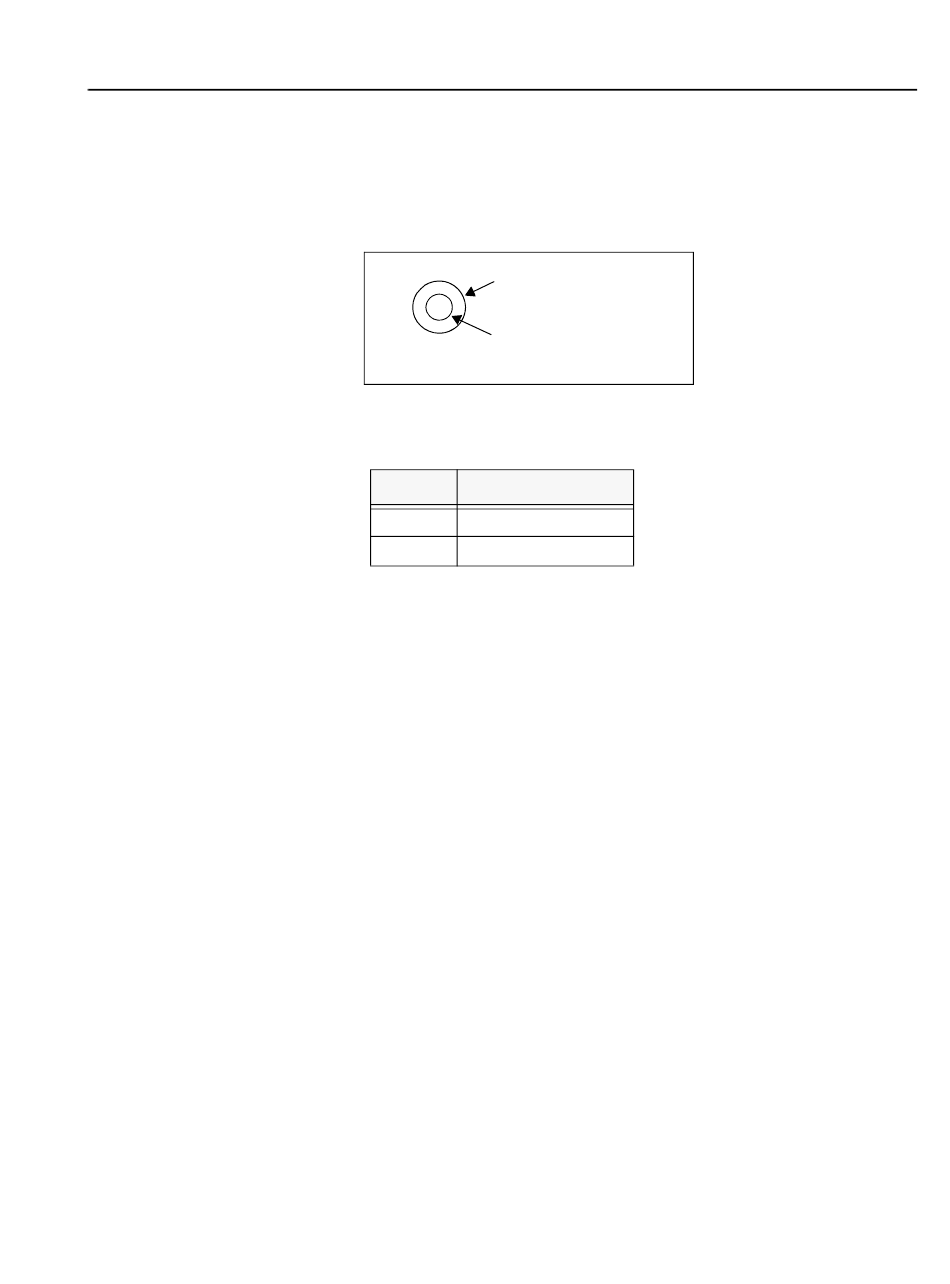

Figure 3-11, J5, Video In RCA Jack
Table 5: J5, Video In, RCA Jack
Pin # Signal Name
1 Pin 8, TVP5147
2 GND
