4.1
Board Overview
This section introduces the Atmel SAM3N Evaluation Kit design. It introduces system-level concepts,
such as power distribution, memory, and interface assignments.
The SAM3N-EK board is based on the integration of an ARM
Flash and a set of popular peripherals. It is designed to provide a high performance processor evaluation
solution with high flexibility for various kinds of applications.

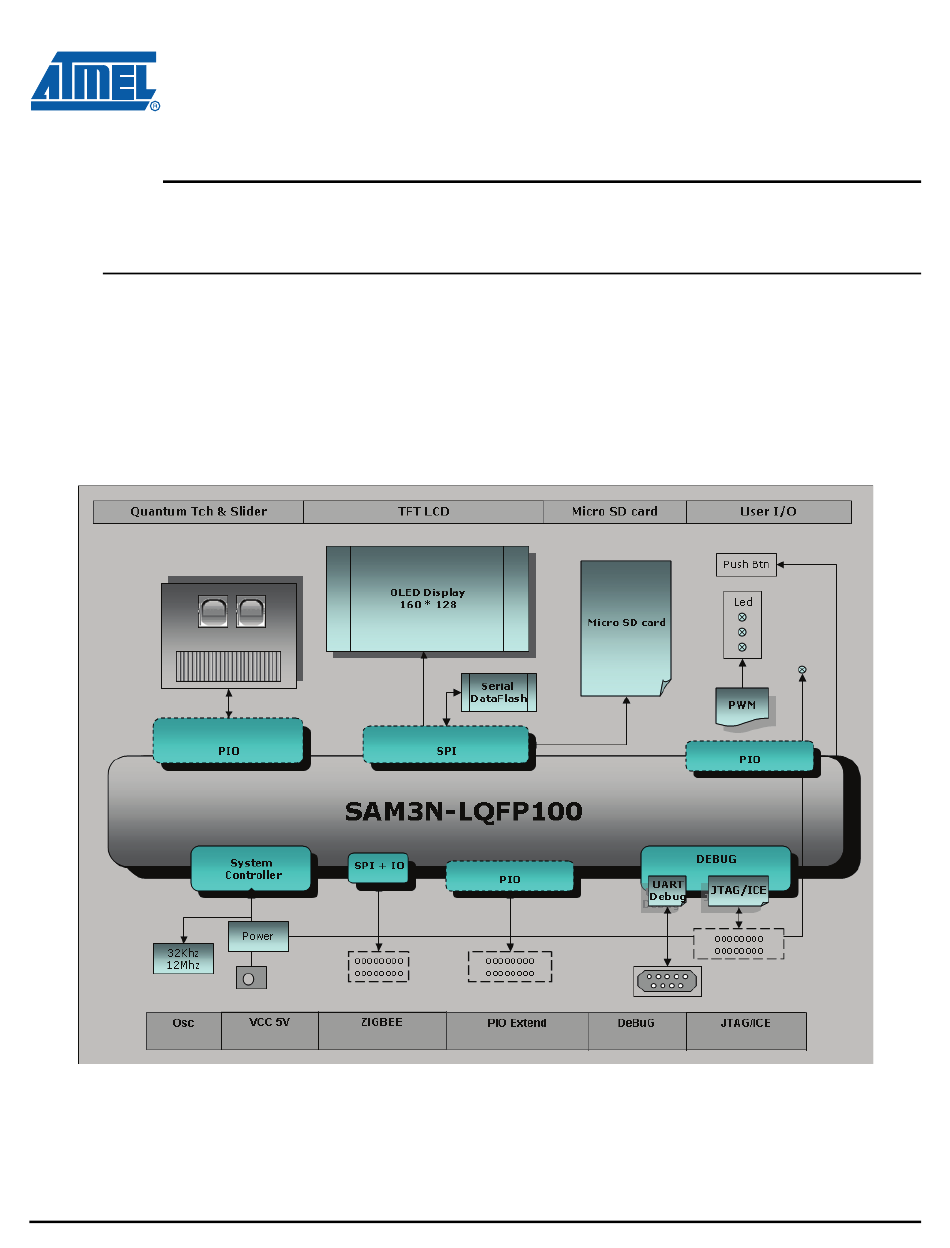

Figure 4-1.
SAM3N-EK Block Diagram
SAM3N-EK Development Board User Guide
Evaluation Kit Hardware
®
®
Cortex
-M3 processor with on-board
Section 4
4-1
11080C–ATARM–30-Mar-11
