Figure 4-12. User Buttons
4.3.14

LEDs

There are four LEDs on the SAM3N-EK board:
A blue LED (D1), a green LED (D2), and an amber LED (D3) which are user-defined and controlled by
the GPIO.
A red LED (D4), which is a power LED indicating that the 3.3V power rail is active. It is also controlled
by the GPIO and can be treated as a user LED as well. The only difference with the three others is that
it is controlled through a MOS transistor. By default, the PIO line is disabled; a pull-up resistor controls
the MOS to light the LED when the power is ON.

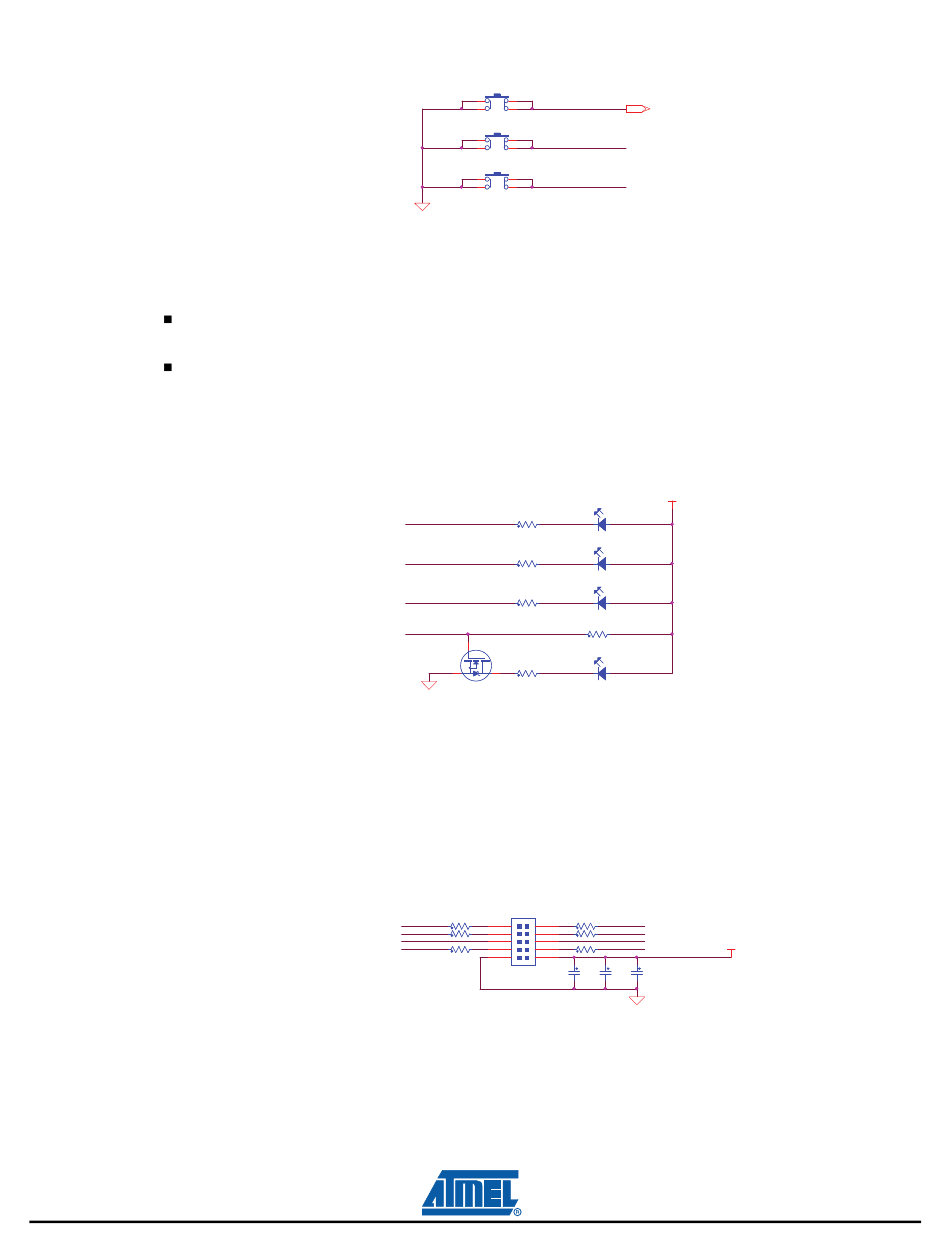

Figure 4-13. LEDs
4.3.15

ZigBee

SAM3N-EK has a 10-pin male connector for the RZ600 ZigBEE module.
Note:
Figure 4-14. ZigBee
4.3.16 PIO Expansion
The SAM3N product features three PIO controllers, PIOA, PIOB and PIOC, which are multiplexed with
the I/O lines of the embedded peripherals. Each PIO Controller controls up to 32 lines (15 for PIOB).
Expansion ports J5, J6 provide PIO lines access for customer defined usage.
4-8
11080C–ATARM–30-Mar-11
DGND
PA23
PB14
PA25
PA0
IRLML2502 IRLML2502
DGND
0 Ohm resistors have been implemented in series with the PIO lines that are used else-
where in the design, thereby enabling their individual disconnection, should a conflict occur
in your application.
ZB_RSTN
PC23
IRQ1_ZBEE
PC25
CS
PA31
MISO
PA12
BP1 BP1
1 3
2 4
BP2 BP2
1 3
2 4
PA15
BP3 BP3
1 3
2 4 PA16
BUTTONS
R42 R42
470R 470R
D1 D1
R43 R43
470R 470R
D2 D2
R44 R44
470R 470R
D3 D3
R45 R45 100K 100K
1
Q1 Q1
R46 R46
470R 470R
2 3 D4 D4
J7 J7
R47 R47 0R 0R 1 2 R49 R49 0R 0R
3 4
R48 R48 0R 0R R50 R50 0R 0R
5 6
R51 R51 10R 10R 7 8 R52 R52 0R 0R
9 10
C43 C43 C44 C44
18pF 18pF 2.2nF 2.2nF
NRST
+3V3
Blue-led Blue-led
Green-led Green-led
Amber-led Amber-led
Red-led Red-led
IRQ0_ZBEE
PC24
SLP_TR
PC26
MOSI
PA13
SPCK
+3V3
PA14
C45 C45
2.2uF 2.2uF
DGND
