USER GUIDE
Atmel SAM4E Xplained Pro
Preface
®
The Atmel
SAM4E Xplained Pro evaluation kit is a hardware platform to
evaluate the ATSAM4E16E microcontroller.
Supported by the Atmel Studio integrated development platform, the kit provides
easy access to the features of the Atmel ATSAM4E16E and explains how to
integrate the device in a custom design.
The Xplained Pro MCU series evaluation kits include an on-board Embedded
Debugger, and no external tools are necessary to program or debug the
ATSAM4E16E.
The Xplained Pro extension series evaluation kits offers additional peripherals to
extend the features of the board and ease the development of custom designs.
42216A-MCU-01/2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atmel SAM4E Xplained Pro
Summary of Contents for Atmel SAM4E Xplained Pro
-
Page 1: Preface
ATSAM4E16E microcontroller. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the Atmel ATSAM4E16E and explains how to integrate the device in a custom design. The Xplained Pro MCU series evaluation kits include an on-board Embedded Debugger, and no external tools are necessary to program or debug the ATSAM4E16E. -
Page 2: Table Of Contents
6. Hardware Revision History and Known Issues ..... 21 6.1. Identifying Product ID and Revision ......... 21 6.2. Revision 3 ................21 7. Document Revision History ........... 22 8. Evaluation Board/Kit Important Notice ........23 Atmel SAM4E Xplained Pro [USER GUIDE] 42216A-MCU-01/2014... -
Page 3: Introduction

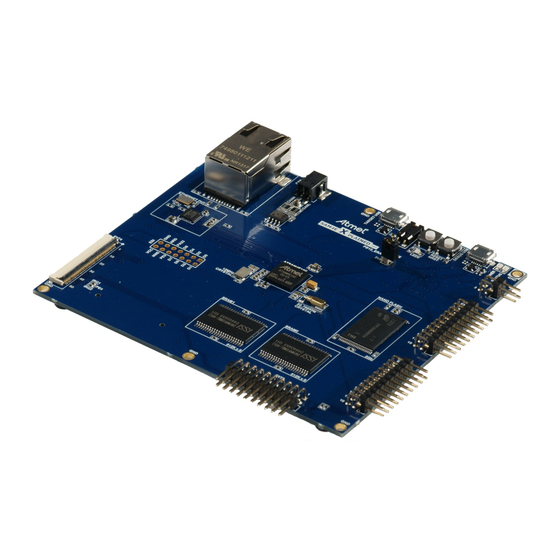

32kHz crystal Kit Overview The Atmel SAM4E Xplained Pro evaluation kit is a hardware platform to evaluate the Atmel ATSAM4E16E. The kit offers a set of features that enables the ATSAM4E16E user to get started using the ATSAM4E16E peripherals right away and to get an understanding of how to integrate the device in their own design. - Page 4 Figure 1-1. SAM4E Xplained Pro Evaluation Kit Overview Atmel SAM4E Xplained Pro [USER GUIDE] 42216A-MCU-01/2014...
-
Page 5: Getting Started
● Connect a Micro-B cable to the DEBUG USB port Connecting the Kit When connecting Atmel SAM4E Xplained Pro to your computer for the first time, the operating system will do a ® ® driver software installation. The driver file supports both 32-bit and 64-bit versions of Microsoft Windows and Windows 7. -
Page 6: Xplained Pro
Note that timestamping imposes an overhead that reduces maximal throughput. The DGI uses a proprietary protocol, and is thus only compatible with Atmel Studio. The EDBG controls two LEDs on SAM4E Xplained Pro, a power LED and a status LED. Table 3-1, “EDBG LED Control”... -
Page 7: Power Supply
Maximum Current [mA] uint16_t Power Supply The SAM4E Xplained Pro kit can be powered either by USB or by an external power source through the 4- pin power header, marked PWR. This connector is described in “Xplained Pro Power Header” on page The available power sources and specifications are listed in Table 3-3, “Power Sources for SAM4E Xplained... -
Page 8: Xplained Pro Lcd Connector
(XF2M-5015-1A) from Omron is used on several designs and can be used as a reference. Table 3-5. Xplained Pro LCD Connector Pin number Name RGB interface MCU interface description description Communication line to ID chip on extension board. Ground Data line Atmel SAM4E Xplained Pro [USER GUIDE] 42216A-MCU-01/2014... - Page 9 Master out slave in line of Serial peripheral interface SPI MISO Master in slave out line of Serial peripheral interface SPI SS Slave select for SPI. Should be unique if possible ENABLE Display enable signal Atmel SAM4E Xplained Pro [USER GUIDE] 42216A-MCU-01/2014...
-
Page 10: Xplained Pro Power Header
Xplained Pro Power Header The power header can be used to connect external power to the SAM4E Xplained Pro kit. The kit will automatically detect and switch to the external power if supplied. The power header can also be used as supply for external peripherals or extension boards. -
Page 11: Hardware User Guide
4.1.1 I/O Extension Headers The SAM4E Xplained Pro headers EXT1, EXT2 and EXT3 offers access to the I/O of the microcontroller in order to expand the board e.g. by connecting extensions to the board. These headers all comply with the... -
Page 12: Lcd Extension Connector
Extension connector EXT4 is a special connector for LCD displays. The physical connector is a TE Connectivity 5-1734839-0 FPC connector. Table 4-4. LCD Display Connector EXT4 Pin on EXT4 SAM4E pin Function Shared functionality 1 [ID] Communication line to ID chip on extension board. Atmel SAM4E Xplained Pro [USER GUIDE] 42216A-MCU-01/2014... - Page 13 41 [DISP ENABLE] GPIO EDBG DGI and EBI spare header 42 [TWI SDA] TWD0 EXT1, EXT2, EXT3 and EDBG 43 [TWI SCL] TWCK0 EXT1, EXT2, EXT3 and EDBG 44 [IRQ1] IRQ1 IRQ2 and EDBG DGI Atmel SAM4E Xplained Pro [USER GUIDE] 42216A-MCU-01/2014...
-
Page 14: Chip Erase Header
4.1.4 Other Headers In addition to the Xplained Pro standard connectors, SAM4E Xplained Pro has one header with spare signals that offers access to the I/O of the microcontroller which are otherwise not easily available elsewhere or might be favourable to have collected toghether. The headers has a pitch of 2.54mm. -
Page 15: Nand Flash
4.2.2 NAND Flash The SAM4E Xplained Pro kit has one external Micron MT29F2G08ABAEAWP:E 2Gb NAND flash connected to the external bus interface of the SAM4E. The NAND flash is connected to chip select NCS0. NAND flash access can be configures in the Static Memory Controller in the SAM4E. -
Page 16: Ethernet
RJ45 Ethernet connector. Every SAM4E Xplained Pro kit is assigned a unique MAC48 address that can be used in an application, this address is printed on the label on the bottom side of the kit and stored in the EDBG. For more information see “Hardware Revision History and Known Issues”... -
Page 17: Sd Card Connector
Crystals The SAM4E Xplained Pro kit contains two crystals that can be used as clock sources for the SAM4E device. Each crystal has a cut-strap next to it that can be used to measure the oscillator safety factor. This is done by... -
Page 18: Mechanical Buttons
NRST RESET 4.2.9 There is one yellow LED available on the SAM4E Xplained Pro board that can be turned on and off. The LED can be activated by driving the connected I/O line to GND. Table 4-15. LED Connections Pin on SAM4E... -
Page 19: Atmel Data Gateway Interface
Atmel Data Gateway Interface The Embedded Debugger features an Atmel Data Gateway Interface (DGI) by using either a USART or TWI port. The DGI can be used to send a variety of data from the SAM4E to the host PC. For further information on how to use the DGI interface see “Embedded Debugger”... -
Page 20: Kit Specific Data
Kit Specific Data One of the user pages in the EDBG is programmed with data specific to the SAM4E Xplained Pro. The data can be read through the I C interface connected to the EDBG, for detailed information see the... -
Page 21: Hardware Revision History And Known Issues
Hardware Revision History and Known Issues Identifying Product ID and Revision The revision and product identifier of Xplained Pro boards can be found in two ways, through Atmel Studio or by looking at the sticker on the bottom side of the PCB. -
Page 22: Document Revision History
Document Revision History Document Date Comment revision 42216A 02/2013 Initial document release Atmel SAM4E Xplained Pro [USER GUIDE] 42216A-MCU-01/2014... -
Page 23: Evaluation Board/Kit Important Notice
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies Atmel from all claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user's responsibility to take any and all appropriate precautions with regard to electrostatic discharge and any other technical or legal concerns. - Page 24 ARM Ltd. Other terms and product names may be trademarks of others. Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products.
