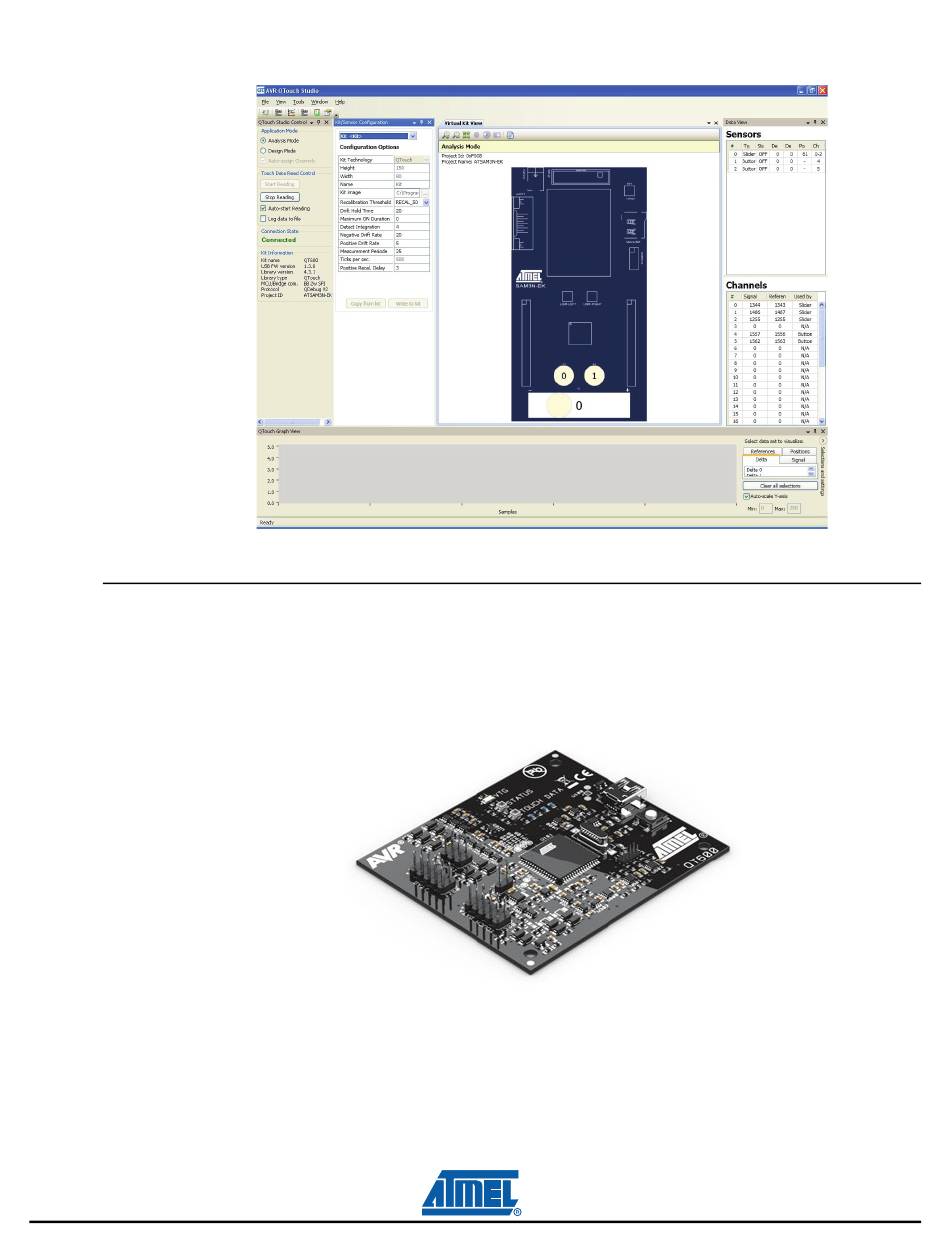

Figure 5-5.
5.5
Hardware Description
5.5.1
QT600 Interface Board
Figure 5-6.
The QT600 Interface Board is the communication interface between the touch system (presently
SAM3N-EK) and the AVR QTouch Studio. It receives touch signal data from the MCU running the
QTouch Library, and forwards this data to the AVR QTouch Studio for visual presentation.
The QT600 can also be used as a programmer for programming the on-chip flash memory of the micro-
controllers on the SAM3N-EK board.
SAM3N-EK Development Board User Guide
QTouch Studio GUI
QT600 Interface Board
QT600
5-5
11080C–ATARM–30-Mar-11
