SMART ARM-based Microcontrollers
SAM4E Xplained Pro
USER GUIDE
Preface
®
The Atmel
SAM4E Xplained Pro evaluation kit is a hardware platform to
evaluate the ATSAM4E16E microcontroller.
Supported by the Atmel Studio integrated development platform, the kit
provides easy access to the features of the Atmel ATSAM4E16E and
explains how to integrate the device in a custom design.
The Xplained Pro MCU series evaluation kits include an on-board
Embedded Debugger, and no external tools are necessary to program or
debug the ATSAM4E16E.
The Xplained Pro extension series evaluation kits offers additional
peripherals to extend the features of the board and ease the development of
custom designs.
Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015
Advertisement
Table of Contents
Related Manuals for Atmel SAM4E Xplained Pro
Summary of Contents for Atmel SAM4E Xplained Pro
-
Page 1: Preface
USER GUIDE Preface ® The Atmel SAM4E Xplained Pro evaluation kit is a hardware platform to evaluate the ATSAM4E16E microcontroller. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the Atmel ATSAM4E16E and explains how to integrate the device in a custom design. -
Page 2: Table Of Contents
4.3.1. Serial Wire Debug......................23 4.3.2. Virtual COM Port......................23 4.3.3. Atmel Data Gateway Interface..................24 5. Kit Specific Data...................... 25 6. Hardware Revision History and Known Issues............26 6.1. Identifying Product ID and Revision................... 26 Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015... - Page 3 6.2. Revision 3...........................26 6.2.1. 12MHz Crystal Selection..................... 26 7. Appendix........................27 7.1. Getting Started with IAR......................27 8. Document Revision History..................30 9. Evaluation Board/kit Important Notice..............31 Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015...
-
Page 4: Introduction

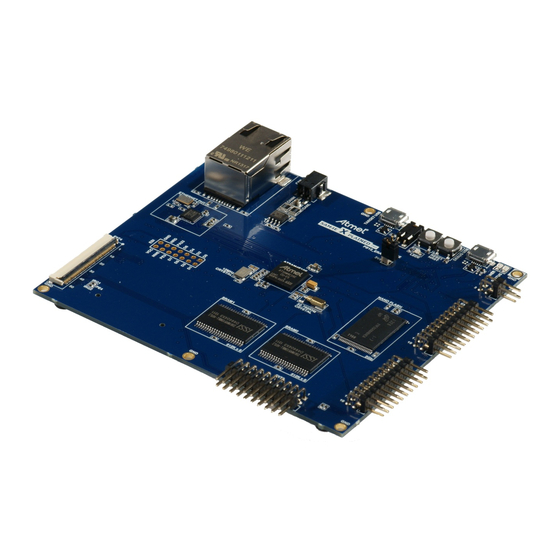

32kHz crystal 1.2. Kit Overview The Atmel SAM4E Xplained Pro evaluation kit is a hardware platform to evaluate the Atmel ATSAM4E16E. The kit offers a set of features that enables the ATSAM4E16E user to get started using the ATSAM4E16E peripherals right away and to get an understanding of how to integrate the device in their own design. - Page 5 Figure 1-1 SAM4E Xplained Pro Evaluation Kit Overview Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015...
-
Page 6: Getting Started
, Windows 7, and Windows 8. Once the Xplained Pro MCU board is powered the green power LED will be lit and Atmel Studio will auto detect which Xplained Pro MCU- and extension board(s) are connected. Atmel Studio will present relevant information like datasheets and kit documentation. -
Page 7: Xplained Pro
Atmel Data Visualizer is used to send and receive data through DGI. The EDBG controls two LEDs on SAM4E Xplained Pro; a power LED and a status LED. Table 3-1 EDBG LED Control on page 7 shows how the LEDs are controlled in different operation modes. -
Page 8: Power Sources
When an Xplained Pro extension is connected to an Xplained Pro MCU board the information is read and sent to Atmel Studio. The Atmel Kits extension, installed with Atmel Studio, will give relevant information, code examples, and links to relevant documents. -
Page 9: Xplained Pro Headers And Connectors
Receiver line of target device UART UART_TX Transmitter line of target device UART SPI_SS_A Slave select for SPI. Should preferably be unique. SPI_MOSI Master out slave in line of serial peripheral interface. Always implemented, bus type. Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015... -
Page 10: Xplained Pro Lcd Extension Connector
Ground Data line Data line Data line Data line Ground Data line Data line Data line Data line Ground Data line Data line Data line Data line Ground Data line Data line Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015... - Page 11 Slave select for serial peripheral interface. Preferably a dedicated pin. ENABLE Display enable C SDA C data C SCL C clock IRQ1 Interrupt 1 IRQ2 Interrupt 2 Backlight control RESET Extension reset 3.3V power supply for extension board Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015...
-
Page 12: Xplained Pro Power Header
Xplained Pro Power Header The power header can be used to connect external power to the SAM4E Xplained Pro kit. The kit will automatically detect and switch to any external power if supplied. The power header can also be used as supply for external peripherals or extension boards. -
Page 13: Hardware User Guide
4.1.1. Xplained Pro Extension Headers The SAM4E Xplained Pro headers EXT1, EXT2, and EXT3 offers access to the I/O of the microcontroller in order to expand the board e.g. by connecting extensions to the board. These headers all comply with... - Page 14 EXT1 and EXT3 PA12 MISO EXT1 and EXT3 PA14 SPCK EXT1 and EXT3 Table 4-3 Extension Header EXT3 Pin on EXT3 SAM4E pin Function Shared functionality Communication line to ID chip on extension board Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015...
-
Page 15: Lcd Extension Connector
SRAM, NAND, and EBI spare header 4 [D1] SRAM, NAND, and EBI spare header 5 [D2] SRAM, NAND, and EBI spare header 6 [D3] SRAM, NAND, and EBI spare header 7 [GND] Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015... - Page 16 34 [VSYNC / CS] PA23 GPIO EBI spare header 35 [HSYNC / WE] SRAM and EBI spare header 36 [DATA PC11 SRAM and EBI spare header ENABLE / RE] 37 [SPI SCK] 38 [SPI MOSI] Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015...
-
Page 17: Chip Erase Header
An angled 1x2, 100mil pin-header marked with MCU current measurement is located at the upper edge of the SAM4E Xplained Pro. All power to the ATSAM4E16E is routed through this header. To measure the power consumption of the device remove the jumper and replace it with an ammeter. -
Page 18: Peripherals
4.2.1. SRAM The SAM4E Xplained Pro features two external ISSI IS61WV5128BLL-10TLI, 512Kx8, 10ns, SRAMs, SRAM0 and SRAM1. SRAM0 is connected to chip select NCS1 and SRAM1 is connected to chip select NCS3. SRAM access can be configured in the Static Memory Controller in the SAM4E. -
Page 19: Nand Flash
4.2.2. NAND Flash The SAM4E Xplained Pro kit has one external Micron MT29F2G08ABAEAWP:E 2Gb NAND flash connected to the external bus interface of the SAM4E. The NAND flash is connected to chip select NCS0. NAND flash access can be configures in the Static Memory Controller in the SAM4E. -
Page 20: Ethernet
RJ45 Ethernet connector. Every SAM4E Xplained Pro kit is assigned a unique MAC48 address that can be used in an application. This address is printed on the label on the bottom side of the kit and stored in the EDBG. For more... -
Page 21: Sd Card Connector
#RST 4.2.4. SD Card Connector The SAM4E Xplained Pro kit has one SD card connector which is connected to High Speed Multimedia Card Interface (HSMCI) of the SAM4E Table 4-9 SD Card Connections on page 21 lists all I/O-lines connected to the SD card connector. -
Page 22: Usb
4.2.7. Crystals The SAM4E Xplained Pro kit contains two crystals that can be used as clock sources for the SAM4E device. Each crystal has a cut-strap next to it that can be used to measure the oscillator safety factor. This is done by cutting the strap and adding a resistor across the strap. More information about oscillator... -
Page 23: Led
NRST RESET 4.2.9. There is one yellow LED available on the SAM4E Xplained Pro board that can be turned on and off. The LED can be activated by driving the connected I/O line to GND. Table 4-15 LED Connections Pin on SAM4E... -
Page 24: Atmel Data Gateway Interface
Atmel Data Gateway Interface The Embedded Debugger features an Atmel Data Gateway Interface (DGI) by using either a USART or TWI port. The DGI can be used to send a variety of data from the SAM4E to the host PC. For further... -
Page 25: Kit Specific Data
Kit Specific Data One of the user pages in the EDBG is programmed with data specific to the SAM4E Xplained Pro. The data can be read through the I C interface connected to the EDBG. For detailed information, see the EDBG User Guide . -
Page 26: Hardware Revision History And Known Issues
Atmel Studio or by looking at the sticker on the bottom side of the PCB. By connecting an Xplained Pro MCU board to a computer with Atmel Studio running, an information window will pop up. The first six digits of the serial number, which is listed under kit details, contain the product identifier and revision. -
Page 27: Appendix
Select System (default) as the reset method. In the category Debugger > CMSIS DAP, select the JTAG/SWD tab. Select SWD as the interface and optionally select the SWD speed. Figure 7-1 Select Target Device Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015... - Page 28 Figure 7-2 Select Debugger Figure 7-3 Configure Flash Loader Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015...
- Page 29 Figure 7-4 Configure Reset Figure 7-5 Configure Interface Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015...
-
Page 30: Document Revision History
Document Revision History Doc. rev. Date Comment 42216B 09/2015 Added ERRATA about 12MHz crystal and IAR getting started guide. 42216A 02/2013 Initial document release. Atmel SAM4E Xplained Pro [USER GUIDE] Atmel-42216B-SAM4E-Xplained-Pro_User Guide-09/2015... -
Page 31: Evaluation Board/Kit Important Notice
(WEEE), FCC, CE or UL (except as may be otherwise noted on the board/kit). Atmel supplied this board/kit "AS IS," without any warranties, with all faults, at the buyer's and further users' sole risk. The user assumes all responsibility and liability for proper and safe handling of the goods. - Page 32 DISCLAIMER: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND...
