USER GUIDE
Atmel SAM4S Xplained Pro
Preface
The Atmel® SAM4S Xplained Pro evaluation kit is a hardware platform to
evaluate the ATSAM4SD32C microcontroller.
Supported by the Atmel Studio integrated development platform, the kit provides
easy access to the features of the Atmel ATSAM4SD32C and explains how to
integrate the device in a custom design.
The Xplained Pro MCU series evaluation kits include an on-board Embedded
Debugger, and no external tools are necessary to program or debug the
ATSAM4SD32C.
The Xplained Pro extension series evaluation kits offers additional peripherals to
extend the features of the board and ease the development of custom designs.
Atmel-42075B-MCU-Atmel SAM4S Xplained Pro-USER GUIDE-03/2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atmel SAM4S Xplained Pro
Summary of Contents for Atmel SAM4S Xplained Pro
-
Page 1: Preface

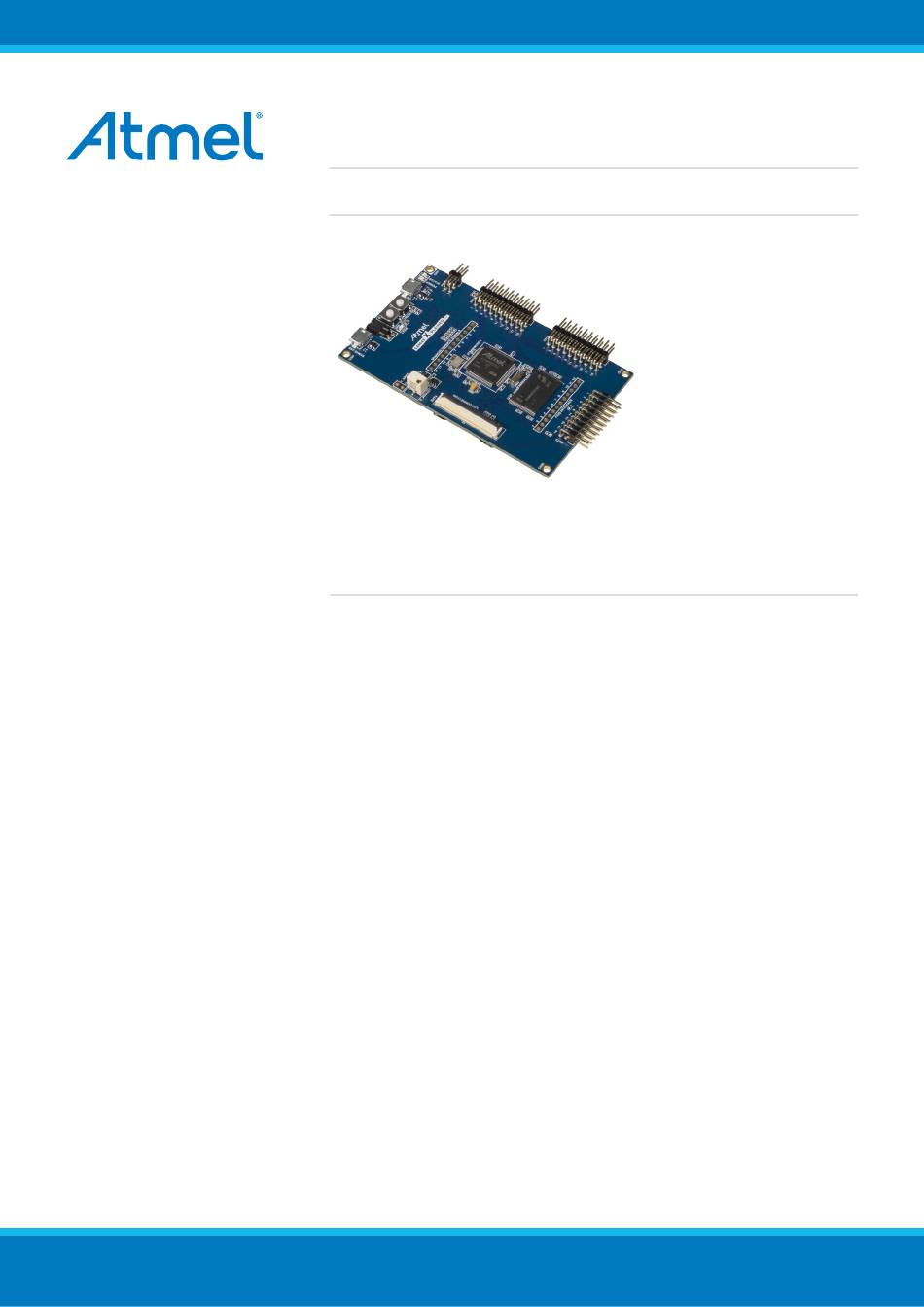

USER GUIDE Atmel SAM4S Xplained Pro Preface The Atmel® SAM4S Xplained Pro evaluation kit is a hardware platform to evaluate the ATSAM4SD32C microcontroller. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the Atmel ATSAM4SD32C and explains how to integrate the device in a custom design. -
Page 2: Table Of Contents
Identifying product ID and revision .......... 18 5.2. Revision 5 ................18 5.3. Revision 4 ................18 6. Document revision history ............. 19 7. Evaluation board/kit important notice ........20 Atmel SAM4S Xplained Pro [USER GUIDE] Atmel-42075B-MCU-Atmel SAM4S Xplained Pro-USER GUIDE-03/2013... -
Page 3: Introduction

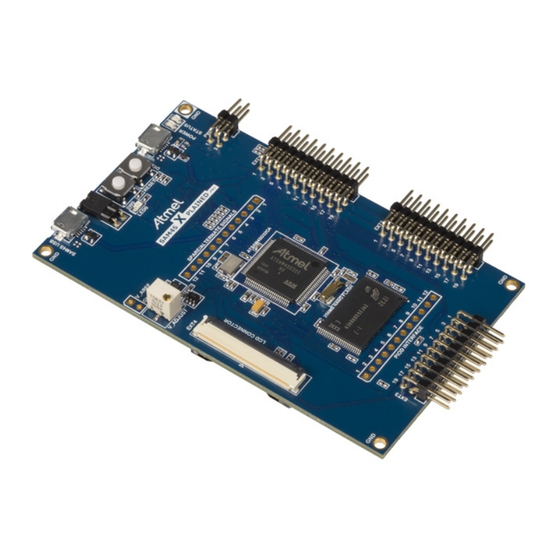

32kHz crystal Kit overview The Atmel SAM4S Xplained Pro evaluation kit is a hardware platform to evaluate the Atmel ATSAM4SD32C. The kit offers a set of features that enables the ATSAM4SD32C user to get started using the ATSAM4SD32C peripherals right away and to get an understanding of how to integrate the device in their own design. - Page 4 Figure 1.1. SAM4S Xplained Pro evaluation kit overview Atmel SAM4S Xplained Pro [USER GUIDE] Atmel-42075B-MCU-Atmel SAM4S Xplained Pro-USER GUIDE-03/2013...
-
Page 5: Getting Started
Connect an USB cable to the DEBUG USB port. Connecting the kit When connecting Atmel SAM4S Xplained Pro to your computer for the first time, the operating system will do a driver software installation. The driver file supports both 32-bit and 64-bit versions of Microsoft® Windows® XP and Windows 7. -
Page 6: Xplained Pro
In conjunction with Atmel Studio, the EDBG debugger interface can program and debug the ATSAM4SD32C. On the SAM4S Xplained Pro, the SWD interface is connected between the EDBG and the ATSAM4SD32C. The Virtual COM Port is connected to a UART port on the ATSAM4SD32C (see section “Embedded Debugger... -
Page 7: Power Supply
Maximum Current [mA] uint16_t Power supply The SAM4S Xplained Pro kit can be powered either by USB or by an external power source through the 4- pin power header, marked PWR. This connector is described in “Power header” on page 10. -
Page 8: Xplained Pro Lcd Connector
Table 3.5. Xplained Pro LCD connector Pin number Name RGB interface MCU interface description description Communication line to ID chip on extension board. Ground Data line Data line Data line Data line Atmel SAM4S Xplained Pro [USER GUIDE] Atmel-42075B-MCU-Atmel SAM4S Xplained Pro-USER GUIDE-03/2013... - Page 9 Slave select for SPI. Should be unique if possible ENABLE Display enable signal TWI SDA I2C data line (maxTouch) TWI SCL I2C clock line (maxTouch) IRQ1 maxTouch interrupt line Atmel SAM4S Xplained Pro [USER GUIDE] Atmel-42075B-MCU-Atmel SAM4S Xplained Pro-USER GUIDE-03/2013...
-
Page 10: Power Header
Power header The power header can be used to connect external power to the SAM4S Xplained Pro kit. The kit will automatically detect and switch to the external power if supplied. The power header can also be used as supply for external peripherals or extension boards. -
Page 11: Hardware User Guide
4.1.1 I/O extension headers The SAM4S Xplained Pro headers EXT1, EXT2 and EXT3 offers access to the I/O of the microcontroller in order to expand the board e.g. by connecting extensions to the board. These headers all comply with the... -
Page 12: Lcd Extension Connector
EXT1, EXT2, LCD connector (EXT4) and EDBG 4.1.2 LCD extension connector Extension connector EXT4 is a special connector for LCD displays. The physical connector is an Omron Electronics XF2M-5015-1A FPC connector. Atmel SAM4S Xplained Pro [USER GUIDE] Atmel-42075B-MCU-Atmel SAM4S Xplained Pro-USER GUIDE-03/2013... - Page 13 Communication line to ID chip on extension board. NAND Flash NAND Flash NAND Flash NAND Flash NAND Flash NAND Flash NAND Flash NAND Flash PC18 PC15 NPCS[1] PC11 PB14 GPIO TWD1/SDA EXT3 Atmel SAM4S Xplained Pro [USER GUIDE] Atmel-42075B-MCU-Atmel SAM4S Xplained Pro-USER GUIDE-03/2013...
-
Page 14: Other Headers
SD Card and SPARE Signals header Peripherals 4.2.1 NAND Flash The SAM4S Xplained Pro kit has one 2Gb NAND Flash connected to the external bus interface of the SAM4S. Atmel SAM4S Xplained Pro [USER GUIDE] Atmel-42075B-MCU-Atmel SAM4S Xplained Pro-USER GUIDE-03/2013... -
Page 15: Sd Card Connector
Crystals The SAM4S Xplained Pro kit contains two crystals that can be used as clock sources for the SAM4S device. Each crystal has a cut-strap next to it that can be used to measure the oscillator safety factor. This is done by cutting the strap and adding a resistor across the strap. -
Page 16: Mechanical Buttons
RESET PC24 4.2.5 There is one yellow LED available on the SAM4S Xplained Pro board that can be turned on and off. The LED can be activated by driving the connected I/O line to GND. Table 4.12. LED connections Pin on SAM4S... -
Page 17: Atmel Data Gateway Interface
Atmel Data Gateway Interface The Embedded Debugger features an Atmel Data Gateway Interface (DGI) by using either a SPI or TWI port. The DGI can be used to send a variety of data from the SAM4S to the host PC. For further information on how to use the DGI interface see “Embedded Debugger”... -
Page 18: Hardware Revision History And Known Issues
Hardware revision history and known issues Identifying product ID and revision The revision and product identifier of Xplained Pro boards can be found in two ways, through Atmel Studio or by looking at the sticker on the bottom side of the PCB. -
Page 19: Document Revision History
Document revision history Doc. Rev. Date Comment 15/03/2013 Added information about changes done on rev 5 11/02/2013 First release Atmel SAM4S Xplained Pro [USER GUIDE] Atmel-42075B-MCU-Atmel SAM4S Xplained Pro-USER GUIDE-03/2013... -
Page 20: Evaluation Board/Kit Important Notice
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies Atmel from all claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user's responsibility to take any and all appropriate precautions with regard to electrostatic discharge and any other technical or legal concerns. - Page 21 ARM Ltd. Other terms and product names may be trademarks of others. Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products.
