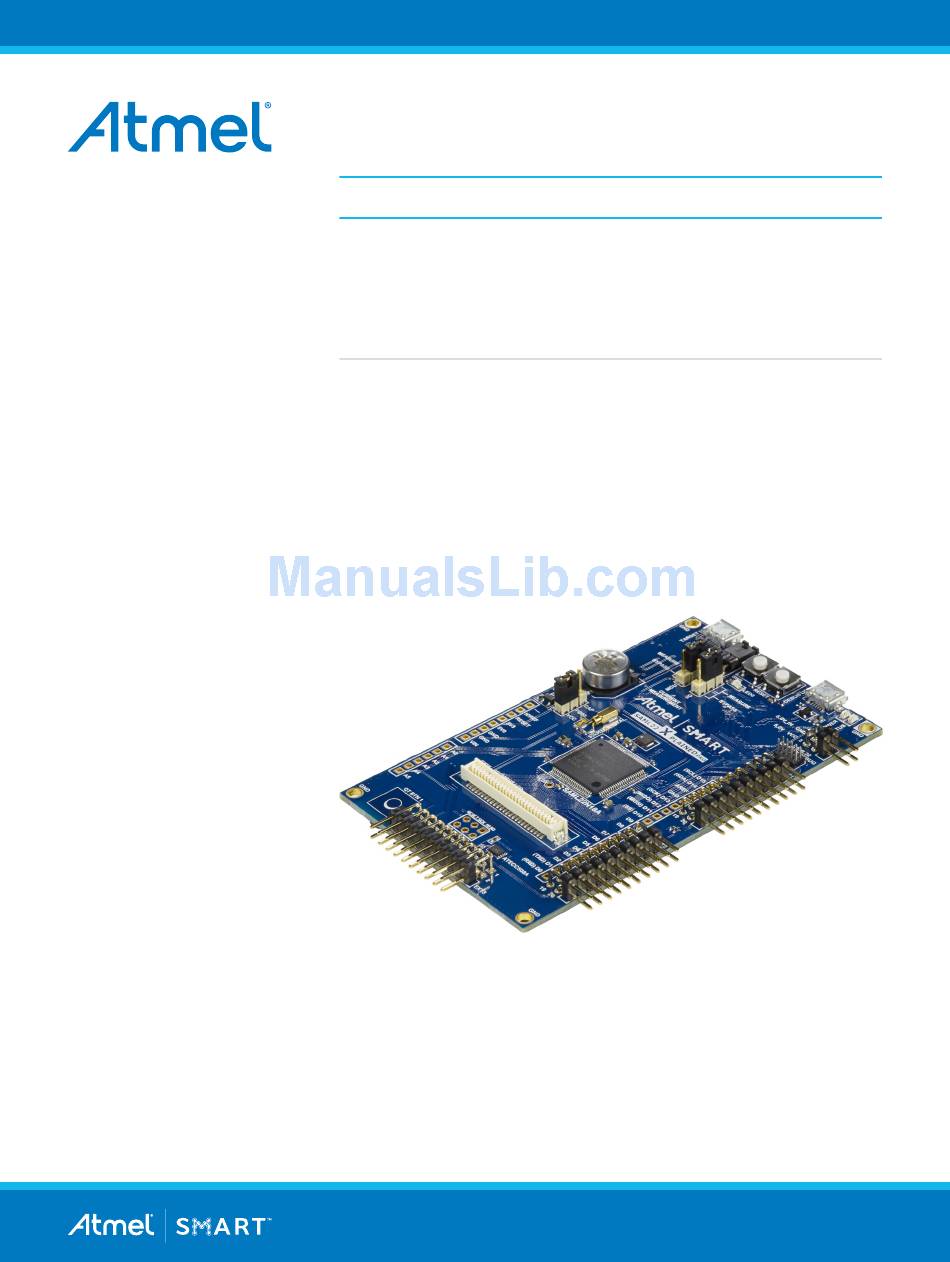

SMART ARM-based Microcontrollers
SAM L22 Xplained Pro
USER GUIDE

Preface

®
The Atmel

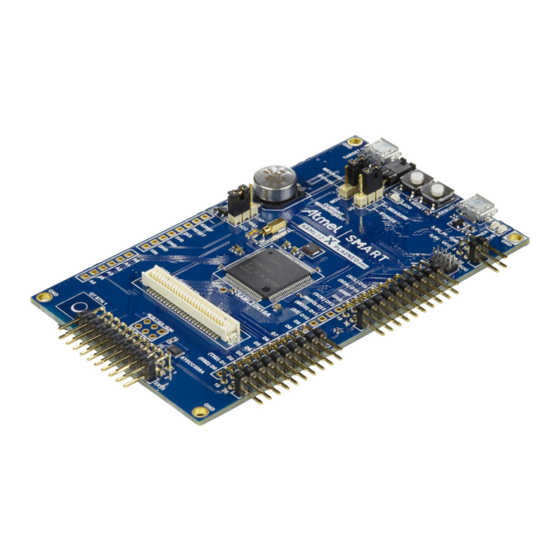

SAM L22 Xplained Pro evaluation kit is a hardware platform to
evaluate the ATSAML22N18A microcontroller.
Supported by the Atmel Studio integrated development platform, the kit
provides easy access to the features of the Atmel ATSAML22N18A and
explains how to integrate the device in a custom design.
The Xplained Pro MCU series evaluation kits include an on-board
Embedded Debugger, and no external tools are necessary to program or
debug the ATSAML22N18A.
The Xplained Pro extension kits offers additional peripherals to extend the
features of the board and ease the development of custom designs.
Atmel-42474B-SAM-L22-Xplained-Pro_User Guide-12/2015
