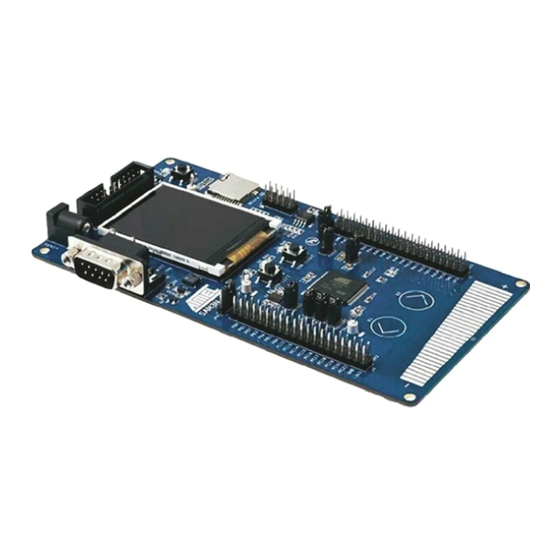

SAM3N-EK Development Board
....................................................................................................................
User Guide
11080C–ATARM–30-Mar-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAM3N-EK and is the answer not in the manual?

Questions and answers

Summary of Contents for Atmel SAM3N-EK

  • Page 1 SAM3N-EK Development Board ........................User Guide 11080C–ATARM–30-Mar-11...
  • Page 2: Table Of Contents

    4.3.11 SD/MMC Card ..................... 4-6 4.3.12 Touch Elements ....................4-7 4.3.13 User Buttons ......................4-7 4.3.14 LEDs ........................4-8 4.3.15 ZigBee ......................... 4-8 4.3.16 PIO Expansion ..................... 4-8 Configuration........................4-9 4.4.1 PIO Usage ......................4-9 SAM3N-EK Development Board User Guide 11080C–ATARM–30-Mar-11...
  • Page 3 Technical Support ....................5-10 5.8.2 Force Firmware Upgrade ................... 5-10 Section 6 Schematics .........................6-1 Schematics......................... 6-1 Section 7 Troubleshooting ......................7-1 Self-Test..........................7-1 Board Recovery ......................... 7-1 Section 8 Revision History......................8-1 Revision History ......................... 8-1 SAM3N-EK Development Board User Guide 11080C–ATARM–30-Mar-11...
  • Page 4: Introduction

    User Guide This guide focuses on the SAM3N-EK board as an evaluation platform. It is made up of 6 sections: Section 1 includes references, applicable documents, acronyms and abbreviations.
  • Page 5: Kit Contents

    AC/DC power supply with US, Europe and UK plug adapters one serial RS232 cable a welcome letter Figure 2-1. Unpacked SAM3N-EK Unpack and inspect the kit carefully. Contact your local Atmel distributor, should you have issues con- cerning the contents of the kit. SAM3N-EK Development Board User Guide 11080C–ATARM–30-Mar-11...
  • Page 6: Electrostatic Warning

    Kit Contents Electrostatic Warning The SAM3N-EK board must not be subjected to high electrostatic potentials. A grounding strap or similar protective device should be worn when handling the board. Avoid touching the components or any other metallic element of the board.
  • Page 7: Power Up

    Recovery Procedure The DevStart ends by giving step-by-step instructions on how to recover the SAM3N-EK to the state as it was when shipped by Atmel. SAM3N-EK Test Software, Chapter 3.1 "Flash Recovery" gives instructions if you deleted the contents of ®...
  • Page 8: Evaluation Kit Hardware

    Section 4 Evaluation Kit Hardware Board Overview This section introduces the Atmel SAM3N Evaluation Kit design. It introduces system-level concepts, such as power distribution, memory, and interface assignments. ® ® The SAM3N-EK board is based on the integration of an ARM...
  • Page 9: Features List

    2x32 bit PIO connection interfaces (PIOA, PIOC) and 1x15 bit PIO connection interface (PIOB) Function Blocks 4.3.1 Processor The SAM3N-EK is equipped with a SAM3N4C device in LQFP100 package. 4.3.2 Memory The SAM3N4 chip embeds: 256 Kbytes of embedded Flash...
  • Page 10: Clock Circuitry

    The SAM3N-EK board is equipped with one 12 MHz crystal, and one 32.768 Hz crystal. An optional 12 MHz Piezoelectric Ceramic Resonator can be mounted in place of the 12 MHz crystal (for low cost clocking option evaluation).
  • Page 11: Power Supply And Management

    Power Supply and Management The SAM3N-EK board is supplied with an external 5V DC block through the J1 socket. It is protected by a PolyZen diode MN3. The PolyZen protects the board in the case of an incorrect power supply connection.
  • Page 12: Display Interface

    FGND 4.3.7 Display Interface The SAM3N-EK carries a TFT Transmissive LCD module with touch panel, TM020GDZ18. Its integrated driver IC is ILI9225B. The LCD display area is 2.0 inches diagonally measured, with a native resolution of 176x220 pixels. The LCD module gets reset from GPIO PA29. The LCD chip select signal is connected to NPCS2. The SAM3N communicates with the LCD through the SPI bus.
  • Page 13: Jtag/Ice

    4.3.9 JTAG/ICE A standard 20-pin JTAG/ICE connector is implemented on the SAM3N-EK for the connection of a com- patible ARM JTAG emulator interface, such as the SAM-ICE from Segger. Notes: 1. The NRST signal is connected to BP1 system button. The 0 ohm resistor R30 may be removed in order to isolate the JTAG port from this system reset signal.
  • Page 14: Touch Elements

    A typical slider implementation is volume control. 4.3.13 User Buttons There are two mechanical user buttons on the SAM3N-EK, which are connected to PIO lines and defined to be "left" and "right" buttons by default. In addition, a mechanical button controls the system reset, signal NRST.
  • Page 15: Leds

    DGND 4.3.15 ZigBee SAM3N-EK has a 10-pin male connector for the RZ600 ZigBEE module. Note: 0 Ohm resistors have been implemented in series with the PIO lines that are used else- where in the design, thereby enabling their individual disconnection, should a conflict occur in your application.
  • Page 16: Configuration

    +3V3 DGND DGND DGND DGND PC[0..31] Configuration This section describes the PIO usage, the jumpers, the test points and the solder drops of a SAM3N-EK board. 4.4.1 PIO Usage Table 4-1. PIO Port A Assignment I/O Line Peripheral A Peripheral B...
  • Page 17 Table 4-2. PIO Port B Assignment I/O Line Peripheral A Peripheral B Peripheral C Extra Function EK Usage Device PWM0 PWM1 URXD1 NPCS2 AD6/ WKUP12 UTXD1 PCK2 TWD1 PWM2 JTAG TDO/ TWCK1 WKUP13 JTAG TRACESWO 4-10 SAM3N-EK Development Board User Guide 11080C–ATARM–30-Mar-11...
  • Page 18 PC11 PWM3 QT2_ SNSK QTOUCH_KEY_Right PC12 AD12 PC13 AD10 EN_LCD PC14 PCK2 PC15 AD11 PC16 PCK0 PC17 PCK1 PC18 PWM0 PC19 PWM1 PC20 PWM2 PC21 PWM3 PC22 PWM0 AD16 PC23 TIOA3 ZB_RSTN ZigBee SAM3N-EK Development Board User Guide 4-11 11080C–ATARM–30-Mar-11...
  • Page 19: Jumpers

    DC voltage selection between 3.3V and 5V on PIO +3V3 expansion ports, default for 3.3V 4.4.3 Test Points Some test points have been placed on the SAM3N-EK board for the verification of important signals. Table 4-5. Test Points Designation Part Description...
  • Page 20: Assigned Pio Lines, Disconnection Possibility

    As pointed out in previous interface descriptions, 0-Ohm resistors have been inserted on the PIO lines receiver path of the SAM3N-EK. Some PIO lines are connected to an external driver on the board. The 0-Ohm resistors allow disconnecting each of these for custom usage (through PIO expansion connec- tors, for example).
  • Page 21: Qt600

    ™ using the Atmel QTouch Library . QT600 has been designed to give developers a quick and easy way to start developing touch solutions on Atmel ATx Microcontrollers. ® QT600 is fully supported by QTouch Library and AVR Studio , and together these tools form the Atmel ™...
  • Page 22: System Description

    QTouch Studio SPI or PIO MCU Board + Touch Interface Board The QT600 Interface board is used to stream live touch data from the SAM3N-EK board. ™ QTouch Studio is used as the PC front-end, for visualization of the touch data.
  • Page 23: Getting Started

    2. Accept the terms of the licence agreement 3. Choose the destination location of the folder 4. Update the QT600 firmware 5. Install the program 6. When the installation is complete, click the “Finish” button Figure 5-4. Installation Step 6 SAM3N-EK Development Board User Guide 11080C–ATARM–30-Mar-11...
  • Page 24 QT600 The SAM3N-EK boards must be programmed with the QTouch application code. For ARM products, the examples can be retrieved from the QTouch Library (installation process described on page 5-3). The example projects must be compiled for the application to work. Refer to the main.c file in each proj- ect for details.
  • Page 25: Hardware Description

    The QT600 Interface Board is the communication interface between the touch system (presently SAM3N-EK) and the AVR QTouch Studio. It receives touch signal data from the MCU running the QTouch Library, and forwards this data to the AVR QTouch Studio for visual presentation.
  • Page 26 QT600 Figure 5-7. QT600 Interface Board Block Diagram SAM3N-EK Development Board User Guide 11080C–ATARM–30-Mar-11...
  • Page 27: Touch Data Connectors

    Not used Bi-directional Bi-directional Output Input UART Not used Input Output Input Output MOSI Input Output MISO Output Input Input Output Keep Jumper Open Figure 5-9. TOUCH DATA Connector Touch Data Connectors Touch Data SAM3N-EK Development Board User Guide 11080C–ATARM–30-Mar-11...
  • Page 28: Target Voltage Vtg

    5.5.5.1 Touch Streaming Mode When the QT600 is in Touch streaming mode (for use with AVR QTouch Studio), the TOUCH DATA LED is green. When touch data is received from the SAM3N-EK, the LED starts to flash. 5.5.5.2 Programming Mode When the QT600 is in programming mode (for use with AVR Qtouch Studio), the TOUCH DATA LED is not lit.
  • Page 29: Status Led

    5.4). Example projects for both GCC and IAR compilers are available. 1. Connect a 10-wire cable between the Touch Data Connector on the SAM3N-EK board and the Touch Data connector on the QT600 Interface board (see Figure 5-9 on page 5-7) 2.
  • Page 30: Troubleshooting And Support

    3. In AVR Studio, go to the Tools menu and select QT600 Upgrade. 4. The Atmel QT600 Upgrade program starts. If a connection has been established, the Status shows "QT600 present". 5. Press the Start Upgrade button: the upgrade program upgrades QT600's firmware.
  • Page 31: Schematics

    Section 6 Schematics Schematics This section contains the following schematics: Block Diagram Reference Guide Microcontroller, Power DataFlash, Micro SD, LCD, BL Driver, JTAG, RS232 IO Expansion, Buzzer, ZigBEE, LEDs, Buttons, QTouch SAM3N-EK Development Board User Guide 11080C–ATARM–30-Mar-11...
  • Page 32 SAM3N-EK RevA Block Diagram ATMEL Cortex M3 Processor SAM3N (LQFP100) PBs, LEDs SPI LCD BUZZER DATA Flash RS232 QTouch JTAG ZIGBEE User Interface (PIO Port A,B,C) 05-MAY-10 05-MAY-10 05-MAY-10 INIT EDIT INIT EDIT INIT EDIT 05-MAR-10 05-MAR-10 05-MAR-10 XX-XXX-XX XX-XXX-XX XX-XXX-XX MODIF.
  • Page 33 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAM3N-EK SAM3N-EK SAM3N-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET Describe Describe Describe This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.
  • Page 34 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAM3N-EK SAM3N-EK SAM3N-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET Microcontroller Microcontroller Microcontroller This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.
  • Page 35 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAM3N-EK SAM3N-EK SAM3N-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET Peripheral_1 Peripheral_1 Peripheral_1 This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.
  • Page 36 MODIF. MODIF. MODIF. DES. DES. DES. DATE DATE DATE VER. VER. VER. DATE DATE DATE SAM3N-EK SAM3N-EK SAM3N-EK SCALE SCALE SCALE REV. REV. REV. SHEET SHEET SHEET Peripheral_2 Peripheral_2 Peripheral_2 This agreement is our property. Reproduction and publication without our written authorization shall expose offender to legal proceedings.
  • Page 37: Troubleshooting

    Self-Test A test package software is available to implement a functional test for each section of the board. Refer to the SAM3N-EK page on http://www.atmel.com/dyn/products/tools_card.asp?tool_id=4846. Board Recovery The CDROM provided in the kit contains a recovery procedure allowing to reprogram the board as it was when shipped.
  • Page 38: Revision History

    Section 8 Revision History Revision History Table 8-1. Change Request Document Comments Ref. Section 4.3.9 ”JTAG/ICE” 11080C Note 2 added to 7636 Section 5 “QT600” 11080B added. 7544 11080A First issue. SAM3N-EK Development Board User Guide 11080C–ATARM–30-Mar-11...
  • Page 39 Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI- TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY...
