FM Discriminator Measurement Examples
FM Discriminator Single Channel Measurement using Double-Sided Spur Calibration
5. The system can now run the measurement. At the appropriate point,

When the measurement is complete

When the measurement is complete, refer to
Measurement Results"
test system has problems completing the measurement, it will inform you by
placing a message on the computer display.
Figure 10-10

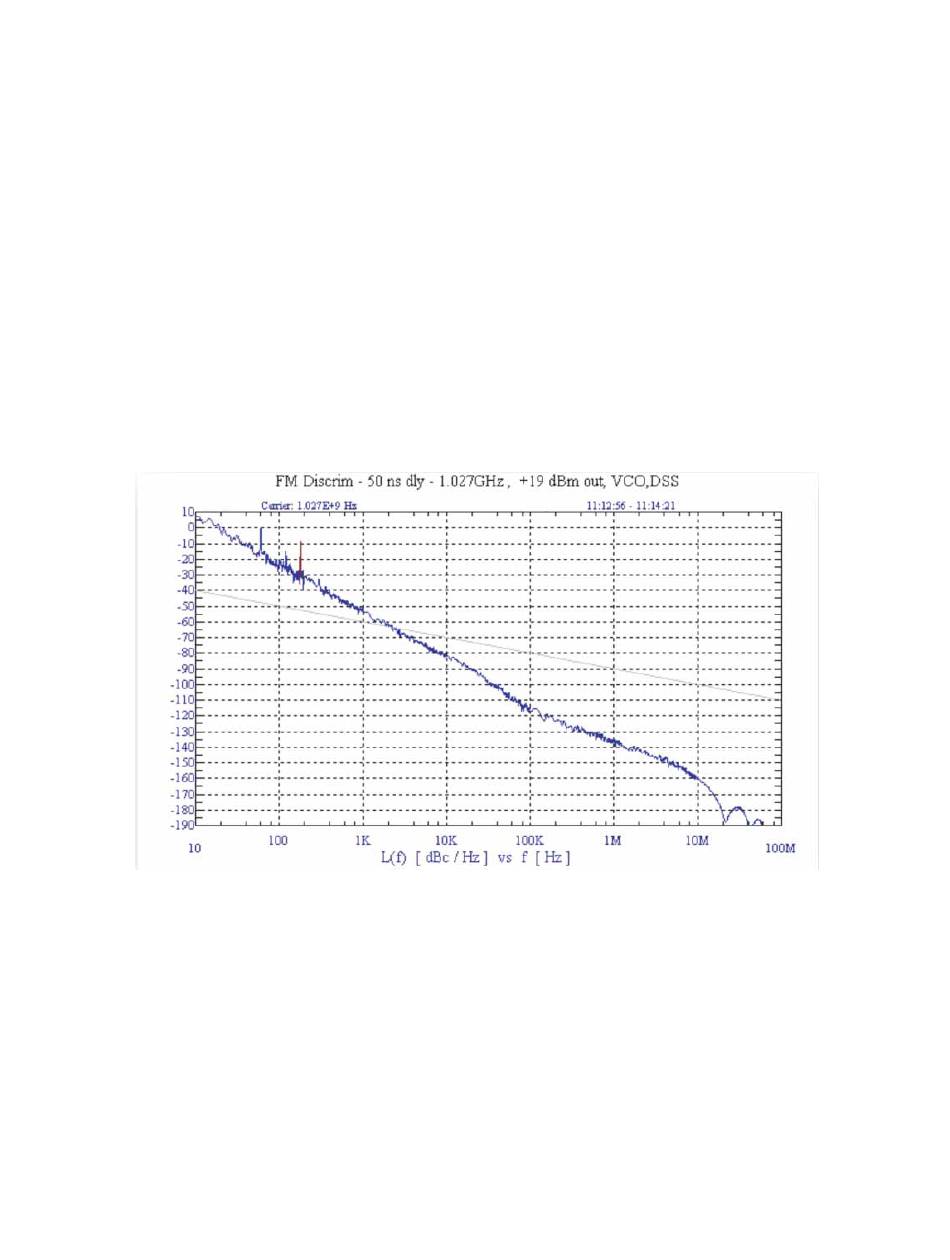

Figure 10-10 Typical phase noise curve using double-sided spur calibration
N5511A Phase Noise Test System User's Guide
re-establish quadrature and continue the measurement.
The segment data will be displayed on the computer screen as the data is
taken until all segments have been taken over the entire range you
specified in the Measurement definition's Type and Range.
for help in evaluating your measurement results. (If the
shows a typical absolute measurement using FM discrimination.
Chapter 14, "Evaluating Your
