Configuring Equipment

Configure the equipment to the settings for this lab:
1) Power
2) Set up the DUT carrier signal
3) Set up modulating tone
4) Measure tone
Reconnect DUT to test set
N5511A Phase Noise Test System User's Guide
Power on all the equipment: Keysight N5511A PNTS, E8257D PSG
Frequency, 1 GHz
Amplitude 14 dBm
,
RF On/Off On
,
AM AM Depth 1.5%
, ,
AM Rate 10 kHz
,

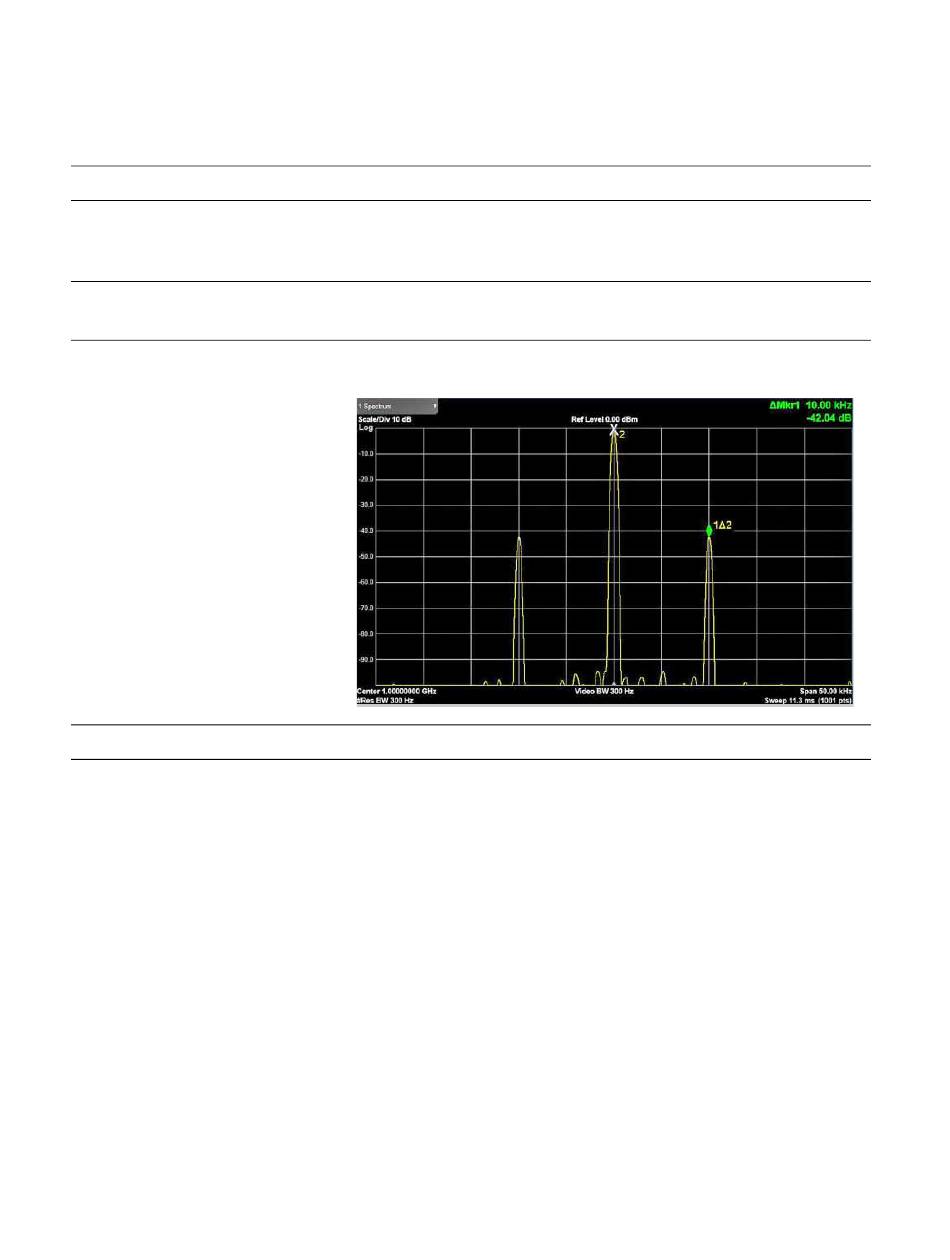

Use an analyzer to measure the calibration tone's power level and offset relative
to the carrier.
See Figure 12-1
