Evaluating Your Measurement Results

Graph of Results

Graph of Results
Use the Graph of Results to display and evaluate your measurement results.
The Graph of Results screen is automatically displayed as a measurement is
being made. However, you can also access the Graph of Results functions from
the main graph menu. You can load a result file using the File/System
functions, and then display the results.
The following functions are available to help you evaluate your results:
—
—
—

Marker

The marker function allows you to display the exact frequency and amplitude
of any point on the results graph. To access the marker function:
1. On the View menu, click Markers. See

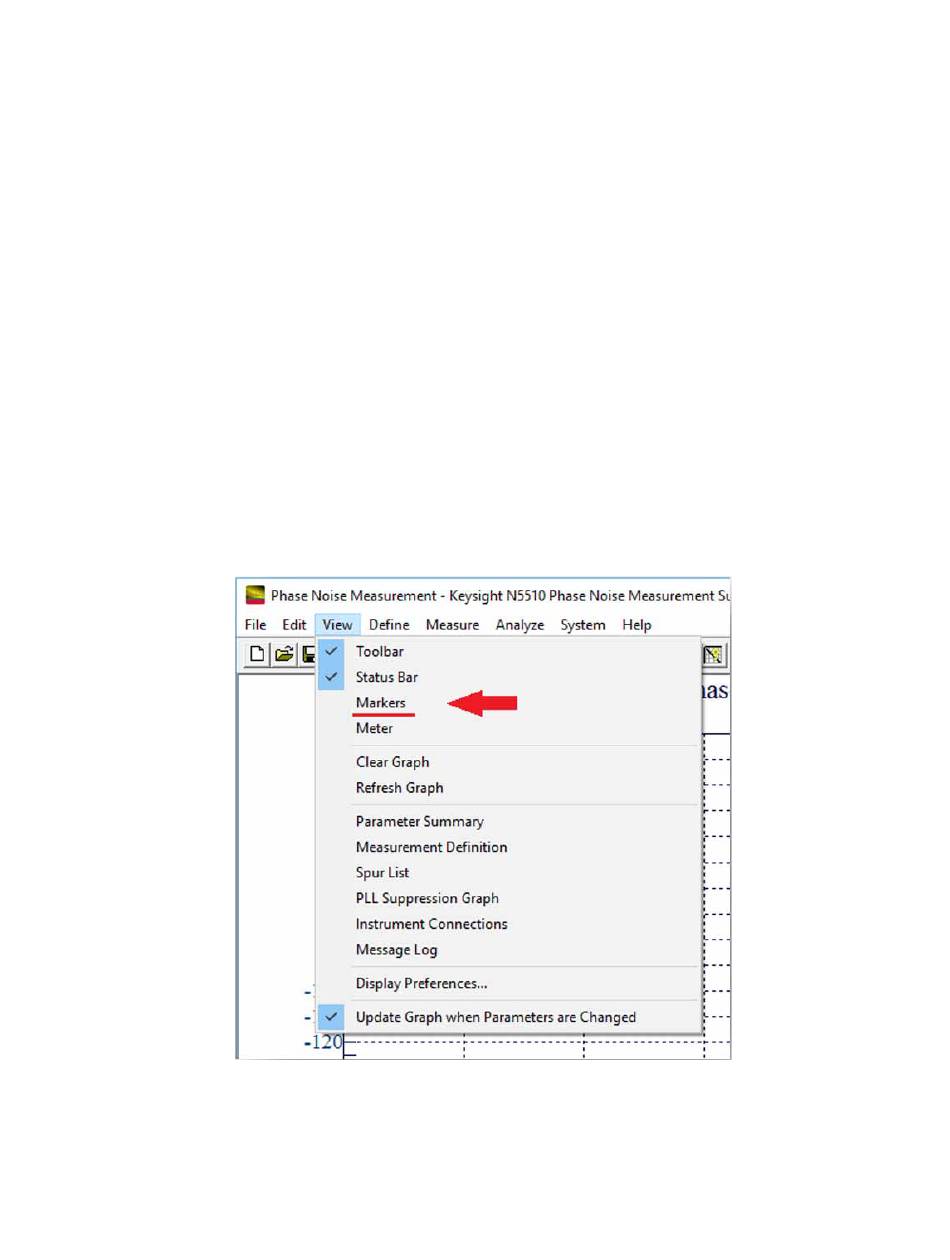

Figure 14-5 Navigate to marker
N5511A Phase Noise Test System User's Guide
"Marker" on page 295
"Omit Spurs" on page 297
"Parameter summary" on page 300
Figure 14-5.
