FM Discriminator Measurement Examples
FM Discriminator Single Channel Measurement using Double-Sided Spur Calibration
Block Diagram Configuration
1. Choose the Block Diagram tab. Refer to
Figure
10-6.
2. From the Reference Source pull-down, select Manual.
3. From the Phase Detector pull-down, select Automatic Detector Selection.

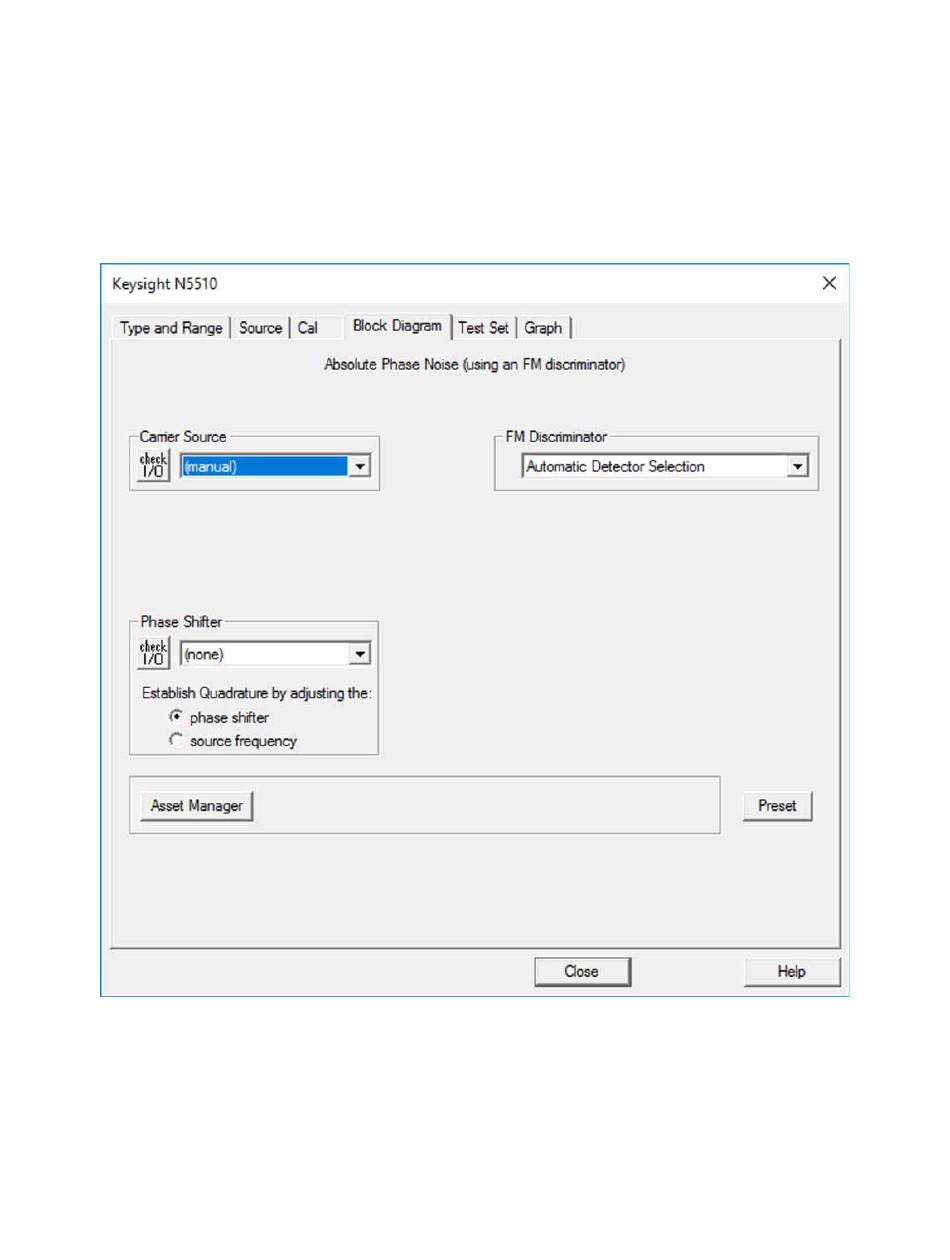

Figure 10-6
Select Parameters in the Block Diagram Tab
230
N5511A Phase Noise Test System User's Guide
