FM Discriminator Measurement Examples
FM Discriminator Single Channel Measurement using FM Rate and Deviation
Calibration
Define the measurement
Measurement Type and Range
From the Define menu, navigate to the Measurement window. Refer to
Figure
10-12.
1. Choose the Type and Range tab.
2. From the Measurement Type pull-down in Type and Range tab, select
Absolute Phase Noise (using an FM discriminator).

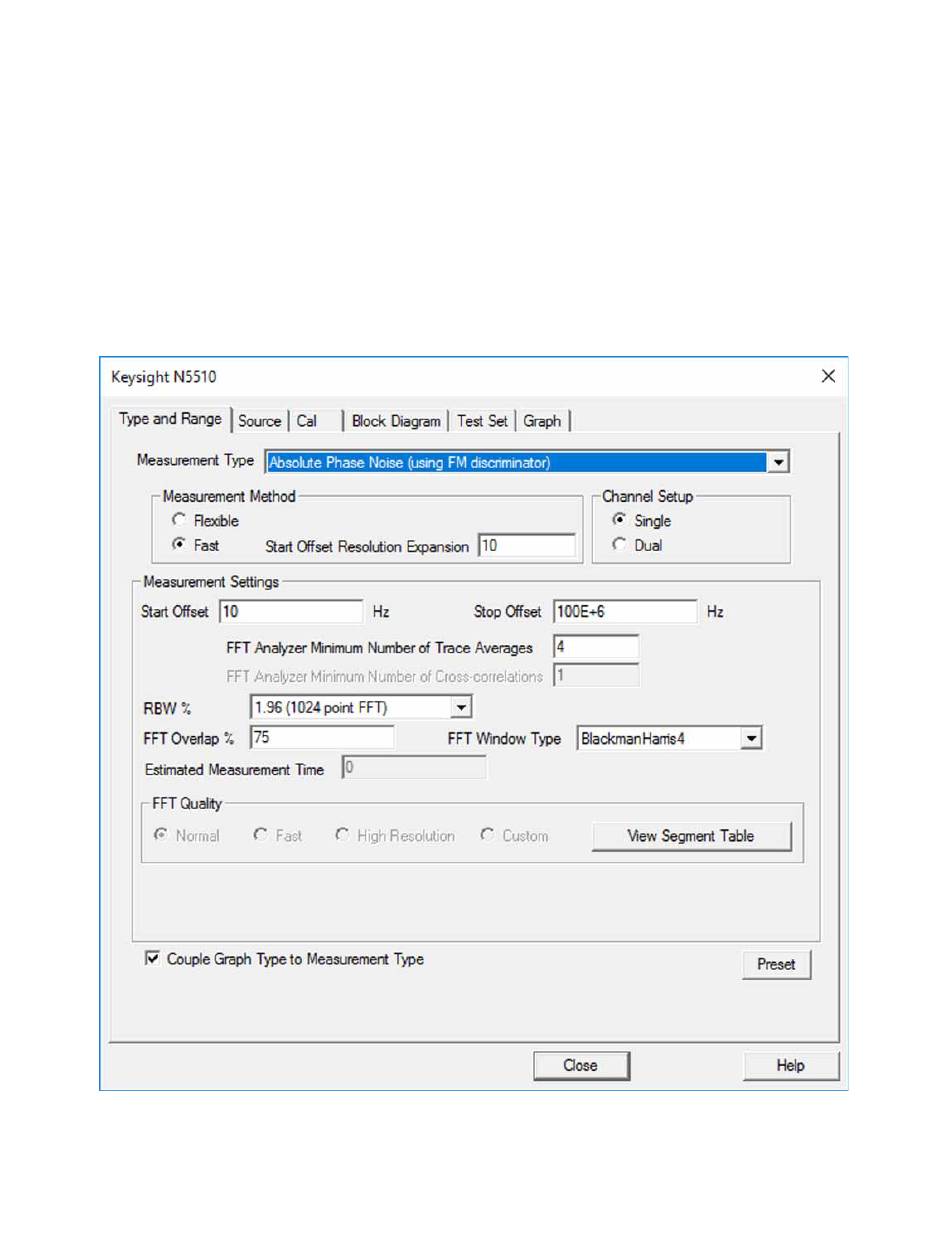

Figure 10-12
Select the Measurement Type
242
N5511A Phase Noise Test System User's Guide
