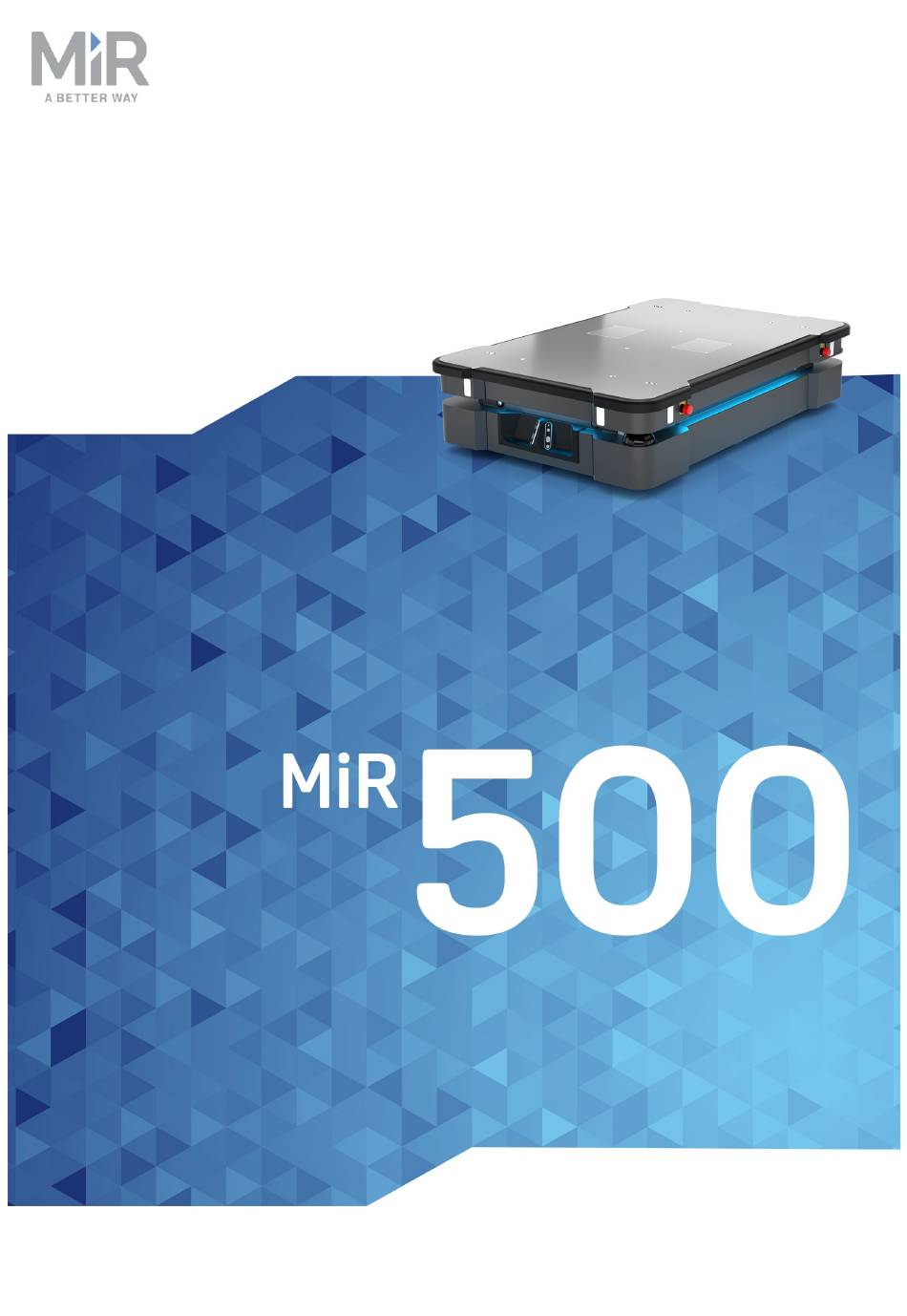

Quick start (en)
Date: 07/2019
Revision: v.1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIR500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MIR MIR500

Summary of Contents for MIR MIR500

  • Page 1 Quick start (en) Date: 07/2019 Revision: v.1.2...

  • Page 2: Table Of Contents

    2.2 Connecting to the robot interface 2.3 Driving the robot in manual mode 2.4 Checking the hardware status 2.5 Shutting down the robot 2.6 Charging the robot 2.7 MiR500 control panel 2.8 MiR500 operating modes 2.9 Packing for transportation 3. Safety 3.1 Safety message types 3.2 General safety precautions...

  • Page 3: Getting Started

    MiR robot REST API reference • MiRCharge 48V Operating Guide • MiR500 Lift Operating Guide • MiR500 EU Pallet Lift Operating Guide • MiR username and passwords • CE declaration of conformity MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 4: Unpacking Mir500

    This is necessary since the robot drives out of the box on the ramp. Remove the screws that attach the walls of the box to the box lid and the base of the box. Remove the lid from the box. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.
  • Page 5 Take the folder with the printed documents and the USB drive out of the box. Remove the walls of the box and the protective foam blocks. Cut the protective straps. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.
  • Page 6 Place the lid of the box so that you can use it as a ramp. Align the lid so that it is flush with the base of the box. Remove the wheel stop board from the pallet to let the robot drive on the ramp. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 7: Commissioning

    Open the rear maintenance hatch. To open the hatch, push two buttons on the hatch and pull the hatch. Turn the battery disconnect switch to position ON. The On/Off button turns blue. See MiR500 control panel on page 15. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.
  • Page 8 The robot turns on the red indicator lights and starts the software initialization process. When the initialization process ends, the robot goes into the emergency stop mode. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 9: Connecting To The Robot Interface

    Follow these steps to connect to the robot interface: Using your pc, tablet or phone, connect the WiFi access point of the robot. The access point name has the following format: MiR_UXXXX. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 10: Driving The Robot In Manual Mode

    Put the Operating mode key into the Manual mode (turn to the right). In the robot interface, select the joystick icon. The joystick control appears. Select Manual control. The Restart button on the robot starts blinking. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.
  • Page 11 Press the Restart button. The status lights turn blue indicating that the robot is in Manual mode. Note! The robot is shown with an EU pallet lift. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 12: Checking The Hardware Status

    To check that all hardware components work as intended follow the steps below: Sign in to the robot interface. See the section Connecting to the robot interface on page 1. Go to Monitoring > Hardware health. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.
  • Page 13 Check that all elements on the page have the OK status and that they have green dots on the left. For more information, see Hardware health in MiR Robot Interface 2.0 Reference Guide. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 14: Shutting Down The Robot

    On/Off button turns blue. If shutting the robot down for transportation or service/repair, the battery disconnect switch must be turned off as well and the battery cable disconnected, see MiR500 User guide. 2.6 Charging the robot A charger cable and an external charger is not part of the MiR500 standard delivery.

  • Page 15: Mir500 Control Panel

    For information about the charging time, see the robot specifications at www.mir- robots.com. 2.7 MiR500 control panel MiR500 has a control panel in the rear-left corner of the robot. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.
  • Page 16 Pressing the button stops the robot. After pressing this button, you must press the Restart button to let the robot continue operating. Color indication: • Red: The robot is on. Restart Pressing this button: MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 17: Mir500 Operating Modes

    In this mode, the robot executes the programmed mission. After switching the key to this mode, you can remove the key and the robot will continue driving autonomously. The joystick is disabled in the robot interface. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.
  • Page 18 In the prompt dialog, select Yes to acknowledge the muting of personnel detection means. The status and the signal lights start flashing yellow, the robot is ready to drive with muted personnel detection means. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 19: Packing For Transportation

    Protective foam blocks: Side blocks and the top layer. • Protective corner braces. The braces prevent the robot from being damaged by the trans- port straps. • Screws. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.
  • Page 20 The lithium battery is subject to transport regulations. Make sure that you follow the safety precautions in this section and the instructions in section Packing for transportation on the MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.
  • Page 21 United Nations Regulation of Dangerous Goods, UN 3171. Special transport documentation is required to comply with these regulations. This may influ- ence both transport time and costs. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 22: Safety

    Alerts against unsafe practices. • Take proper precautions to avoid damage or injury. NOTICE Indicates important information, including situations that can result in damage to equipment or property. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 23: General Safety Precautions

    The robot can not see staircases going downwards and holes in the floor. • Mark staircases or holes on maps with Forbidden zones. • Keep the maps up to date. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 24: Intended Use

    MiR500 is a partly completed machine as defined in the EU machinery directive and does not have a CE mark. A correctly installed MiR500 is covered by the CE mark of MiRFleet PC. However, a CE marked product does not guarantee a CE marked setup. It is the responsibility of the integrator to safely commission MiR500.

  • Page 25: Foreseeable Misuse

    A safe machine does not guarantee a safe system. Follow the Commissioning guide to ensure safe commissioning. MiR500 is intended to be commissioned indoor in a light industrial environment where public access is restricted. For detailed description of the environment in which the robot should operate, see technical specifications on our website.

  • Page 26: Risk Assessment

    MiR500. The risk assessment must cover not only MiR500 itself, but also take into account potential potential load transfer stations, work cells and the environment it will be used in. See MiR100 and MiR200 Risk Analysis on the distributor page.

  • Page 27: Safety-Related Functions And Interfaces

    Nevertheless, if a limit is violated, the safety system issues a category 0 stop (stopping by “immediate removal of power to the machine actuators according to IEC 60204-1”) followed by a controlled brake which brings MiR500 to a stop. See Technical specifications on our website for more details.

  • Page 28: Safety-Related Electrical Interfaces

    3. Safety Safe load position The safe load position safety function ensures that the robot will not drive, while MiR500 Lift or MiR500 EU Pallet Lift is not in the lowest position and hence there is a risk of compromising stability. The safe load position safety system consists of interlock switches that detect if the lift modules are in the lowest position or not.
  • Page 29 External emergency stop button input This input is for connection of an optional emergency stop button. If activated, the safety system issues a category 0 stop followed by a controlled brake which brings MiR500 to a stop. Must be manually deactivated by activation of the restart button.
  • Page 30 Activated by an emergency stop button or emergency stop input. MiR500 Quick start (en) 07/2019 - v.1.2 ©Copyright 2019: Mobile Industrial Robots A/S.

  • Page 31: Lithium Battery

    3.10 Lithium battery This section contains safety precautions related to lithium batteries in MiR robots. NOTICE MiR does not support any additional batteries applied to the MiR500 by the customer. WARNING Lithium battery packs may get hot, explode or ignite and cause serious injury if they are abused electrically or mechanically.
  • Page 32 All rights reserved. No parts of this manual may be reproduced in any form without the express written permission of Mobile Industrial Robots A/S (MiR). MiR makes no warranties, express or implied, in respect of this document or its contents. In addition, the contents of the document are subject to change without prior notice.
