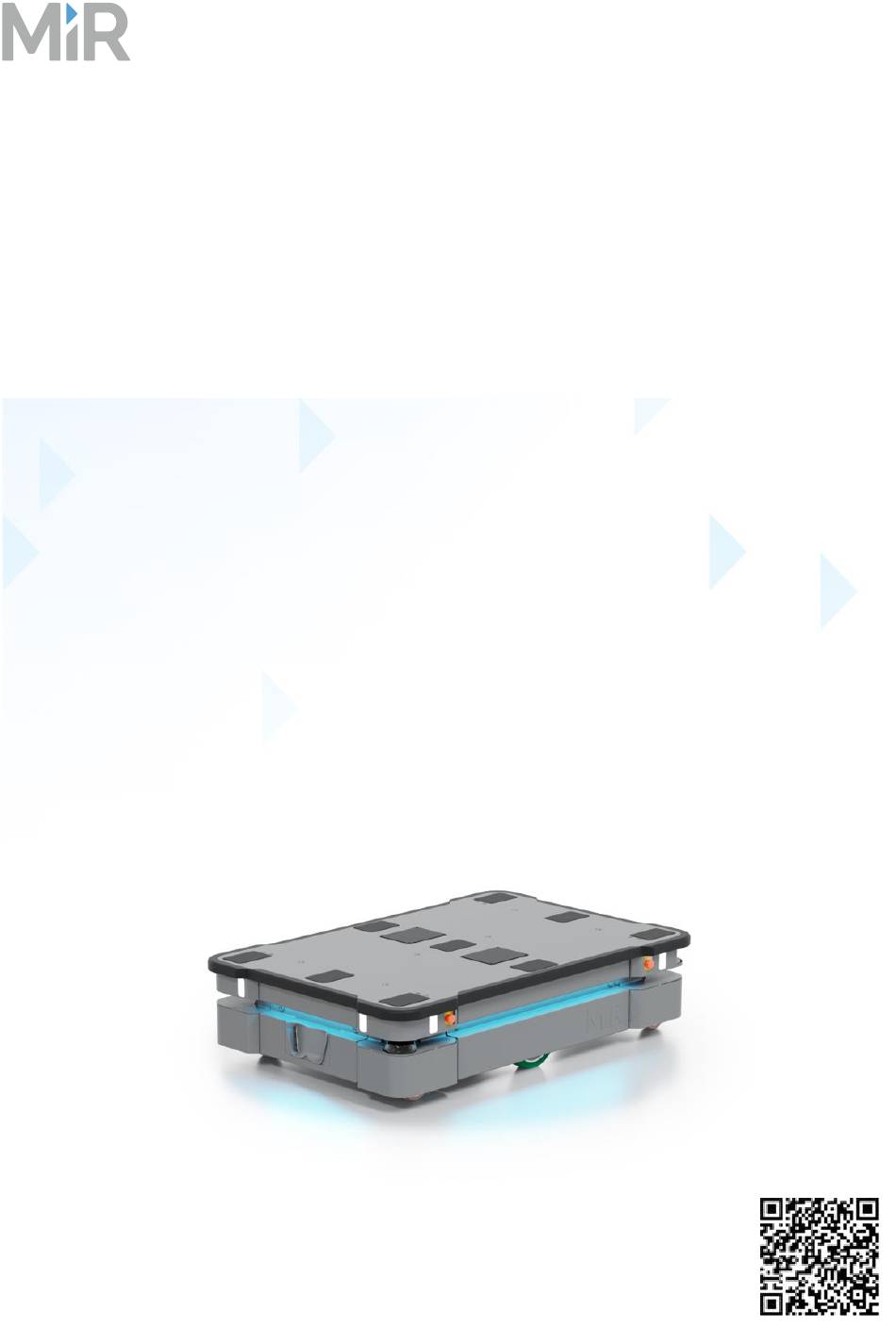

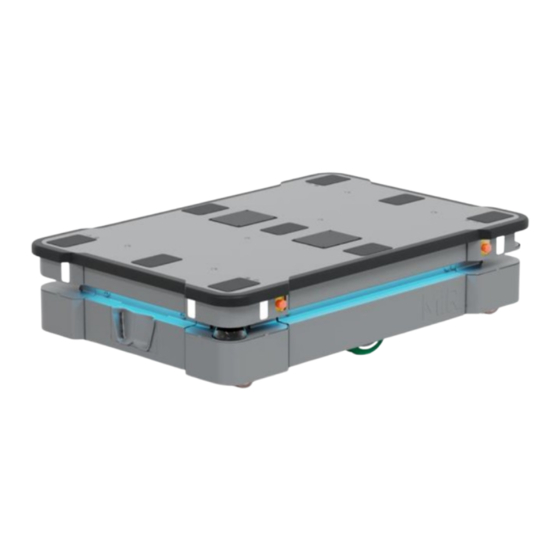

MiR600 Quick Start
Date: 12/2023
Version: 2.0 (en)
Robot hardware version: 1.0
For the full documentation package and for translated guides for your robot, go to:
https://www.mobile-industrial-robots.com/product-documents/mir600-hw-10-sw-3-v1/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiR600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MIR MiR600

Summary of Contents for MIR MiR600

  • Page 1 MiR600 Quick Start Date: 12/2023 Version: 2.0 (en) Robot hardware version: 1.0 For the full documentation package and for translated guides for your robot, go to: https://www.mobile-industrial-robots.com/product-documents/mir600-hw-10-sw-3-v1/...

  • Page 2: Copyright And Disclaimer

    Copyright and disclaimer Copyright and disclaimer Mobile Industrial Robots A/S (MiR) makes no warranties, expressed or implied, in respect of this document or its contents. In addition, the contents of this document are subject to change without prior notice. Every precaution has been taken in the preparation of this document.

  • Page 3: Table Of Contents

    6.2 Accessing the rear maintenance compartment 6.3 Accessing the side compartment Removing the corner shield 6.4 Accessing the top compartments 7. Getting started 7.1 In the box MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 4 7.6 Connecting the robot to a Wi-Fi network 7.7 Driving the robot in Manual mode 7.8 Checking the robot 7.9 Shutting down the robot 7.10 Battery and charging MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 5: Version History

    Added link to a documentation package page. Affects section: Front cover. Removed instructions for charging with cable charger. Affects section: Battery and charging. Removed section: Cybersecurity. Date: 2023-01-31 Robot HW: 1.0 MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 6 Date: 2021-10-07 Robot HW: 1.0 Updated manual to ensure compliance with radio equipment directives. Affects sections: Safety, Connecting to the robot interface, and Connecting the robot to a Wi-Fi network MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 7 1. Version history Revision Description Date: 2021-08-12 Robot HW: 1.0 General improvements throughout the manual. Date: 2021-07-23 Robot HW: 1.0 First edition. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 8: Safety

    NOTICE Indicates important information, including situations that can result in damage to equipment or property. Tells you where you can find more information about the topic. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 9: General Safety Precautions

    The robot may drive into a ladder, scaffold, or similar equipment that has a person standing on it. Personnel risk fall injuries, and equipment may be damaged. Do not place ladders, scaffolds, or similar equipment in the robot's work environment. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 10 Test and evaluate the robot’s performance after applying any changes to ensure the robot performs as intended. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 11: Intended Use

    2.3 Intended use MiR600 is intended to be commissioned and used in indoor industrial environments where access for the public is restricted. For details about the environmental conditions in which MiR600 should operate, see the manual for your robot application.

  • Page 12: Foreseeable Misuse

    If used with custom modules, all obligations of a manufacturer apply to the individual who performs the modifications. All modifications must be in accordance with the machinery directive. MiR600 is designed for and all risks are considered when used with one of the following types of top modules: MiR Pallet Lift 600 used with MiR Pallet Rack...

  • Page 13: Residual Risks

    Using the robot together with an external radio module that in any way results in simultaneously active radio transmitters The following list gives examples of custom modules that are foreseeable misuse of MiR600: Top modules (including the payload) that increase the physical dimensions of MiR600...

  • Page 14: Warning Label

    Identify all hazards specific to your robot installation during commissioning. 2.6 Warning label MiR600 is supplied with a warning label that specifies that it is strictly prohibited to ride on the robot. The label must be placed on the robot or top module so that it is clearly visible.

  • Page 15: Storage

    The storage time of the robot and battery depends on the battery's state of charge, the storage conditions, and the battery version. For more information about storage time, see MiR 48V Battery Technical Guide. You can find this guide on MiR Support Portal.
  • Page 16 To properly troubleshoot any battery issues and for information about the exact time periods and battery voltages that trigger the transitions between states, see MiR 48V Battery Technical Guide. You can find this guide on MiR Support Portal. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 17: Light Indicators And Speaker

    Protective fields are muted. Figure 4.1 Light indicators on MiR600 Table 4.1 Identification of light indicators in Figure 4.1 Pos. Description Pos. Description Signal lights Status lights MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 18: Status Lights

    When the robot's battery reaches a critically low level of power (0-1%), the ends of the status lights flash red. 4.2 Signal lights Signal lights are used to indicate the robot’s immediate motion plans by signaling forwards- backwards-braking and left-right turns. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 19: Speaker

    In Setup > Sounds, you can upload new sounds to the robot or edit the volume and length of the default sounds. Sounds can be used in missions and zones to alert or to attract people's attention. For more information about how to set up sounds, see MiR Commissioning Guide. You can find this guide on MiR Support Portal.
  • Page 20 Settings > Features, you can choose which sound the robot makes and the volume of the sound. Figure 4.2 In the Features settings, you can modify the sounds the robot plays when the robot mutes its Protective fields MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 21 Do not disable the sound in the safety system. This will also cause the robot to not comply with safety standards. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 22: Control Panel

    Pressing this button stops the robot. After pressing this button, you must press the Resume button to let the robot continue operating. Color indication: Red: It is possible to engage the Manual stop. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 23 Middle position: Locked mode. The robot blocks the wheels; you cannot start a mission or drive the robot manually. Right position: Manual mode. Puts the robot in Manual mode. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 24: Accessing The Internal Parts

    6. Accessing the internal parts 6. Accessing the internal parts Most internal parts of MiR600 are accessed through maintenance hatches that open to different compartments. CAUTION Opening or removing hatches from the robot exposes parts connected to the power supply, which can result in a short circuit that will damage the robot and could injure personnel.

  • Page 25: Accessing The Rear Maintenance Compartment

    6.2 Accessing the rear maintenance compartment See a video of the process on the MiR TechComm videos channel on vimeo.com. Press the two buttons on the rear hatch. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 26 To access the motor controller carrier board and dynamic brake contactors, you must remove the rear compartment cover. See a video of the process on the MiR TechComm videos channel on vimeo.com. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 27 6. Accessing the internal parts To remove the cover, follow these steps: Disconnect the status light cable. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 28 6. Accessing the internal parts Turn the two hinges in the bottom corners to release the hatch, and remove the hatch from the robot. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 29 Remove the seven screws on the rear cover. Use a T25 bit. Loosen the top three screws while holding the bottom of the cover. Use a T25 bit. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 30: Accessing The Side Compartment

    6.3 Accessing the side compartment See a video of the process on the MiR TechComm videos channel on vimeo.com. Press the two buttons on the side maintenance hatch. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 31: Removing The Corner Shield

    Remove the four screws from the corner shield. Use a T30 screwdriver. When reattaching the corner shields, tighten the screws to 11.6 Nm. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 32: Accessing The Top Compartments

    Pull it downward firmly to remove it from the bumper. 6.4 Accessing the top compartments To open a top compartment, remove the four screws, and lift off the top cover. Use a T20 bit. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 33: Getting Started

    Place the box with the robot so that there is at least three meters of free space at the front or the back of the box. This is necessary as the robot drives out of the box on a ramp. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 34 Remove the screws that attach the walls of the box to the box lid and the base of the box. Use a T20 bit. Remove the lid from the box, and remove the wooden lath beneath the lid. Use a T20 bit. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 35 7. Getting started Take the package with the printed documents and accessories out of the box. Remove the pallet collars and the protective foam blocks. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 36 Place the lid of the box so that you can use it as a ramp. Align the lid so that it is flush with the base of the box. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 37: Connecting The Battery

    Once you have accessed the left side compartment, pull the Battery lock pin out, and pull the Battery lever to the top position. The battery is now connected, and you can close the side maintenance hatch. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 38: Powering Up The Robot

    The robot turns on the red signal lights and the orange wavering status lights and starts the software initialization process. When the initialization process ends, the robot goes into Protective stop. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 39 Press the Resume button to clear the Protective stop. The robot is now ready for operation. If you are not able to power up the robot upon delivery, see MiR 48V Battery Technical Guide to troubleshoot the issue. You can find this guide on MiR Support Portal.

  • Page 40: Connecting To The Robot Interface

    You can connect to the robot using an Ethernet cable or an access point. If you are located in North America, the EU, or a part of the EAC, you can purchase a MiR Access Point from MiR. Outside these areas, you need to use your own access point that is approved for use in your region.
  • Page 41 If you are using an access point, connect your device to the access point. The MiR Access Point Wi-Fi has the following format: MiR_3042XXXXX. Use the password shipped with the access point to connect. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 42: Connecting The Robot To A Wi-Fi Network

    To comply with the robot's certification, you must use an Ethernet cable to avoid simultaneously active radio transmitters while setting up the connection to the local Wi-Fi network. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 43 7. Getting started Go to System > Settings > Wi-Fi, and select Add connection. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 44 Select the network you want the robot to be connected to, and fill out the displayed fields—see the guide How to connect a MiR robot to a Wi-Fi network for more information about the Wi-Fi settings. You can find this guide on MiR Support Portal.
  • Page 45 When you are connected to the same network, you can access the robot's interface by entering the IP address displayed under the connection description into your internet browser. To disconnect the robot from a Wi-Fi network, select Disconnect. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 46: Driving The Robot In Manual Mode

    To drive the robot in Manual mode, follow these steps: On the robot, turn the Operating mode key to Manual mode (turn it to the right). The robot enters Emergency stop. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 47 7. Getting started In the robot interface, select the Manual control joystick icon . Select Manual control. The Resume button on the robot starts blinking. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 48 Drive the robot off the ramp using the joystick. NOTICE Place your foot in front of the ramp while the robot drives on it to keep the ramp from slipping. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 49: Checking The Robot

    MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 50 You can see the software version your robot is running in the bottom left corner of the robot interface. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 51: Shutting Down The Robot

    All elements on the page must have the OK status and a green dot on the left. If you for any reason suspect that the safety configuration may have been modified, verify that the checksum values of the safety configuration have not been changed—see MiR600 User Guide.
  • Page 52 Wait for the robot to finish the shutdown process. The status lights waver orange, and the Power button blinks red. When the robot finishes the shutdown process, the status and signal lights go off. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.

  • Page 53: Battery And Charging

    7.10 Battery and charging The robot is powered by a lithium-ion battery that can be charged with a MiR cable charger or a MiR Charge 48V charging station. Instructions for charging depend on the charger type and are described in the guides included with each charger.
  • Page 54 Never smoke or allow an open spark or flame in the vicinity of the robot's battery. Do not use the battery for anything other than MiR600. MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
  • Page 55 7. Getting started Doc. no.: 301008 MiR600 Quick Start (en) 12/2023 - v.2.0 ©Copyright 2021–2023: Mobile Industrial Robots A/S.
