Hearth & Home BRICK-MI30 Refractory Installation Instructions

Models:
SUPREME-I25-IFT, SUPREME-I30-IFT, SUPREME-I35-IFT, RUBY25IN, RUBY25IL, RUBY30IN, RUBY30IL, RU-
BY35IN, RUBY35IL, EXCURSION-I, EXCURSION-II, EXCURSION-II, PROV-I30-IPI, PROV-I35-IPI JASPER30IN, I30X-AU
Leave this manual with party responsible for use
and operation.
I30X-Au Installation Instructions,
SKIP TO PAGE 3.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
NOTICE: Handle refractory panels with care. Refractory
may chip or crack if dropped or impacted.

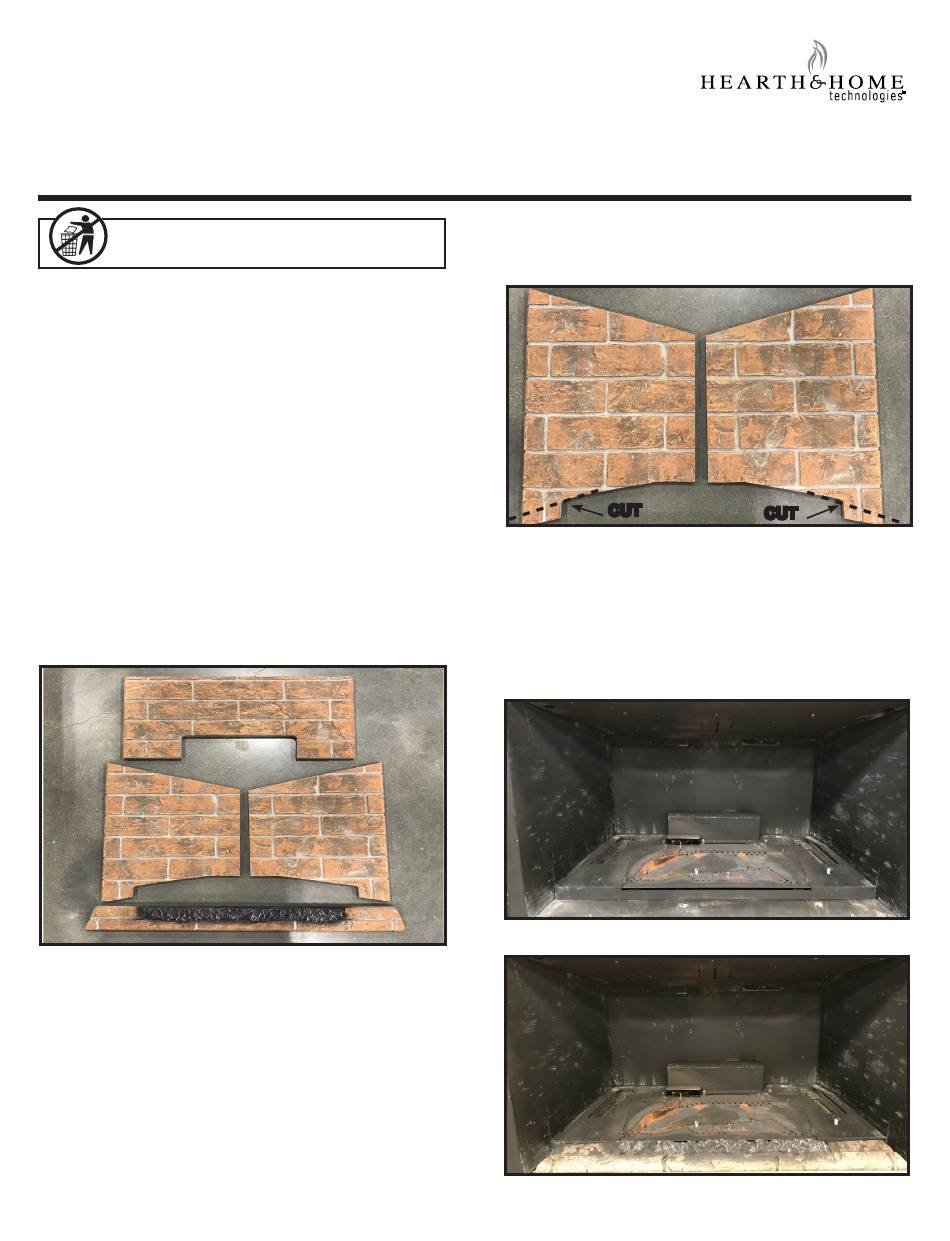

KIT COMPONENTS (Refractory shown in Figure 1)
(1) Left Refractory
(1) Right Refractory
(1) Back Refractory
(1) Base Refractory
Service Parts:
If replacement panels are needed, the entire kit must be
ordered.
Figure 1. Refractory Kit Components
Hearth & Home Technologies • BRICK-MI25, BRICK-MI30, BRICK-MI35 Refractory Kit Instructions • 2532-936 Rev. C • 3/19
BRICK-MI25, BRICK-MI30, BRICK-MI35
- Refractory Installation Instructions -
PROV-I30-IPI, PROV-I35-IPI & JASPER30IN Only:
Cut the bottom leg off of the right and left refractory. See
Figure 2.
CUT
Figure 2. Cut Side Panels - PROV-I30-IPI & JASPER30IN Only

INSTALLATION

PROV-I30-IPI, PROV-I35-IPI & JASPER30IN Only:
Discard base refractory. Base refractory not used with
these models.
1. Install base refractory. See Figure 4.
Figure 3. Empty Firebox
Figure 4. Base Refractory Installed
CUT
