Hearth & Home CERONA-IFT Series Installation Instructions Manual

Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
CAUTION! Do not install damaged components.
If any parts are missing or damaged, contact your dealer before
starting installation. DO NOT install a damaged kit.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Good Faith TV Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Framing Dimensions- Passive Heat Front Discharge . . . . . . . 5
Framing Dimensions - Passive Heat Side Discharge . . . . . . . 6
Framing Dimensions - Passive Heat Open Top Discharge . . 7
Adapter Installation - Front, Side and Open Top Discharge . . 8
Passive Heat Template - Front and Side Discharge . . . . . . . . 9
Finishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installation of Passive Heat with Other Optional Heat
Management Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

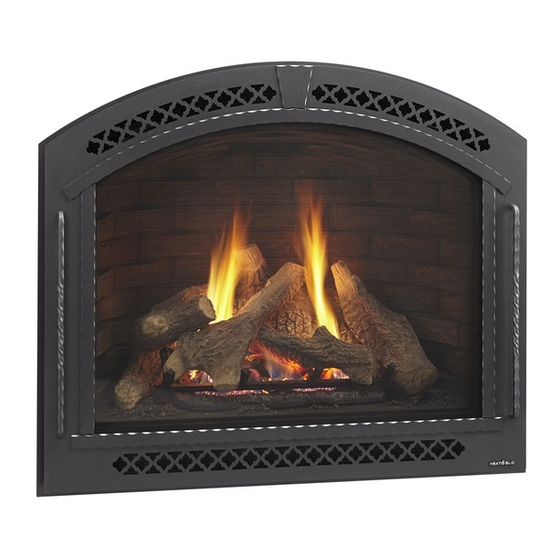

Models: CERONA-IFT Series
Passive Heat Kit Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
PH-CERONA

Introduction

The Passive Heat (PH-CERONA) Heat Management
System conveys warm air from the fireplace into the same
room through either one front discharge slot, two side dis-
charge heat registers or an open top discharge.
Installation of the Passive Heat kit must be done in con-
junction with the appliance installation. Installation of this
kit MUST be performed by a qualified service technician.
WARNING! Risk of Fire! DO NOT install the Passive
Heat (PH-CERONA) Heat Management System with
models that are not approved. Overheating will occur.
Side Discharge Passive Heat systems require the use of
the Register Cover Kit (PH-SIDETRIM), which must be
purchased separately, to complete the installation. Contact
your dealer to order the kit.
Passive Heat Trim Kits are also available for installation
with the Front Discharge Passive Heat system which must
be purchased separately. Contact your dealer to order
the appropriate kit: PH-FRTTRIM-36 or PH-FRTTRIM-42.
Follow instructions included with the trim kit to complete
installation of the Passive Heat system.
The Passive Heat kit is tested and safe when installed in
accordance with this installation manual. It is your respon-
sibility to read all instructions before starting installation
and to follow these instructions carefully during installation.
The Passive Heat kit is carefully engineered and must
be installed only as specified. If you modify it or any of
its components you will void the warranty, and you may
possibly cause a fire hazard. Installation must be done
according to applicable local, state, provincial, and/or
national codes.

Preparation

Plan the location of the appliance.
Determine whether front, open top or side discharge is
to be installed and follow instructions for the appropriate
application.
CAUTION! Risk of Burns!
• The appliance should be turned off and cooled before
kit is installed.
• Shut off gas supply.
1
