Hearth & Home WTB36-ST Installation Instructions

WTB36-ST, WTB36-PR, BRICKST36TB, BRICKST36CR, BRICKPIER36TB,
BRICKPIER36CR, BRICK-36ST-S, BRICK-36PR-S
Models: ST-36TRB-IFT, ST-36TR-IFT, PIER-36TRB-IFT, PIER-36TR-IFT, ST-DV36IN, PIER-DV36IN,
PEARL36STIN, PEARL36PRIN, GDST4336IFT, GDFL4136IFT
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts or Abrasions! Wear protective
gloves and safety glasses during installation.
CAUTION! Risk of Burns! Install this refractory only after
the appliance has cooled and the gas and electricity have
been shut off.
NOTICE: Handle refractory panels with care. Refractory
may chip or crack if dropped or impacted.
INTRODUCTION
These refractory panels are intended for use with the
multi-sided series direct vent gas appliances. Refer to the
installation instructions supplied with the appliance for the
correct accessories to be used. If you encounter any prob-
lems regarding code approvals or if you need clarification
of the instructions contained here, contact your dealer.
KIT CONTENTS

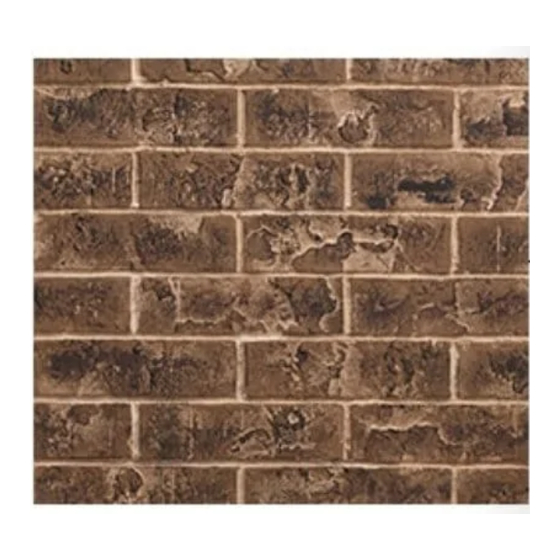

Refractory (See Figure 1) Pieces vary by model.
(2) Refractory Brackets (See Figure 2)
(6) Refractory Screws (See Figure 2)

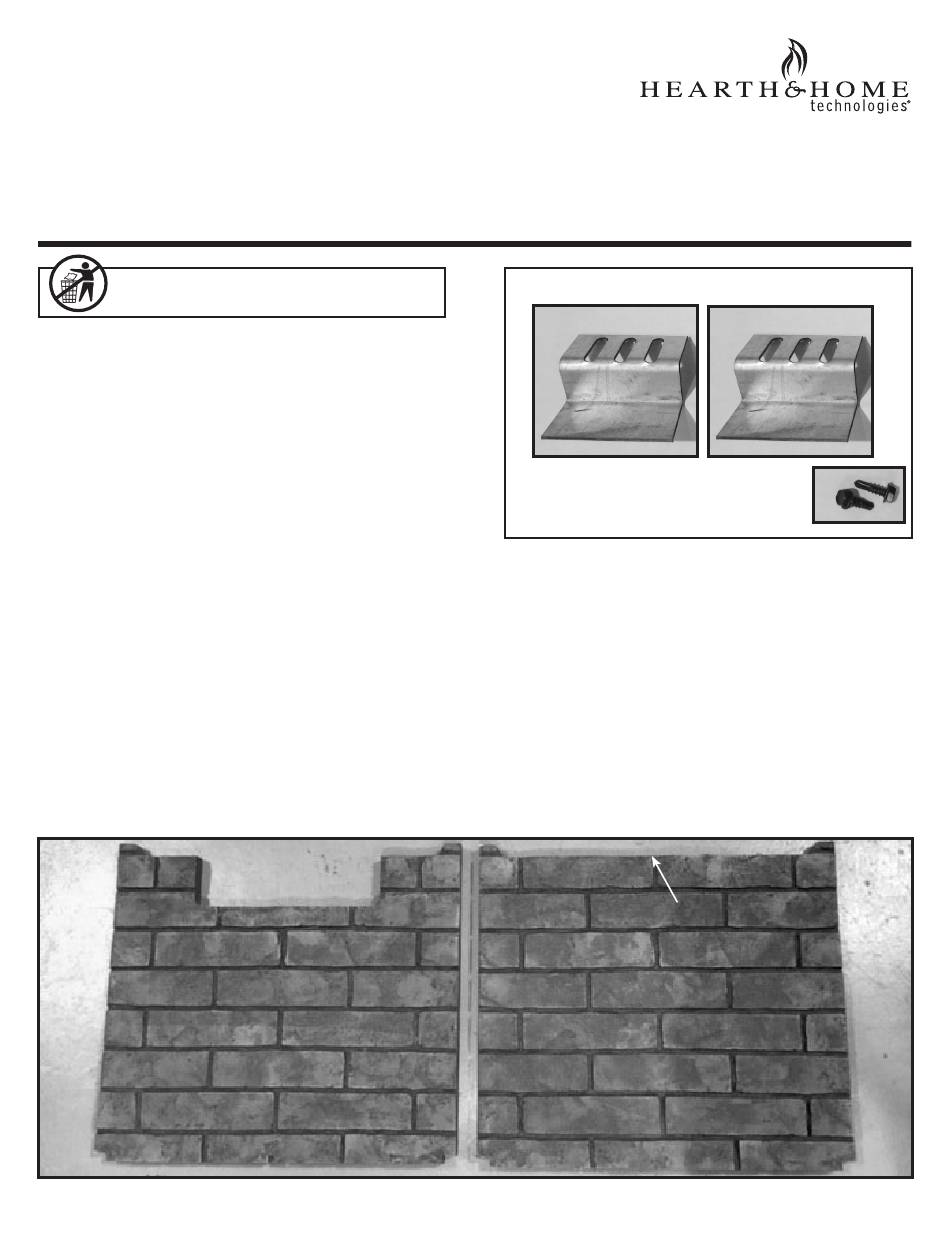

Figure 1. Refractory Kit Components
1 Hearth & Home Technologies • WTB36-ST/PR, BRICKST36TB/CR, BRICKPIER36TB/CR, BRICK-36ST-S/36PR-S • 2478-934 Rev. C • 3/22
Refractory Installation
- Installation Instructions -
REFRACTORY BRACKET SCREWS (6) REFRACTORY BRACKET SCREWS (6)
Figure 2. Refractory Kit Hardware
INTRODUCTION
1. Shut off the power to the appliance and turn the gas
2. Carefully remove the logs and grate (if applicable) from
3. Remove the black sheet metal panel by removing the
ST-36TR-IFT ONLY: The ember rock bracket must be
removed before installing refractory. See Figure 3.
INSTALL REFRACTORY CLIP HERE INSTALL REFRACTORY CLIP HERE
REFRACTORY BRACKETS (2) REFRACTORY BRACKETS (2)
shutoff valve to the closed position. Remove the
decorative front and glass from the appliance.
the firebox, if installed. Make sure not to damage or
impact logs.
two screws as shown in Figure 4. Discard the black
sheet metal panel.
SEE THROUGH MODELS ONLY SEE THROUGH MODELS ONLY
