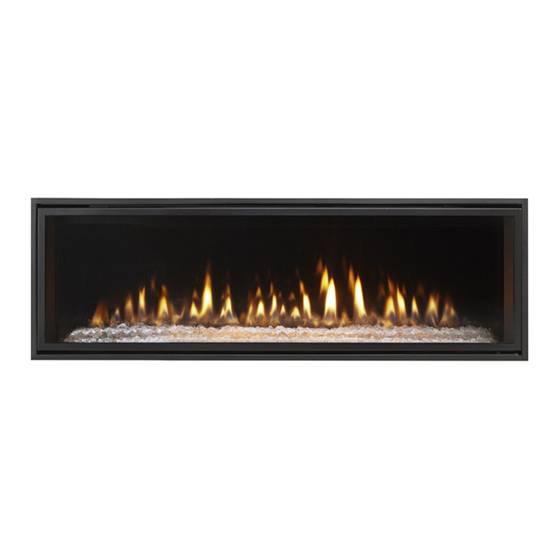

Models: MEZZO-C Series, CRAVE-C Series, ECHELON-C Series
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
CAUTION! Do not install damaged components.
If any parts are missing or damaged, contact your dealer before
starting installation. DO NOT install a damaged kit.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Good Faith TV Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Single-Sided or See-Through . . . . . . . . . . . . . . . . . . . . . . . 6
Single-Sided or See-Through . . . . . . . . . . . . . . . . . . . . . . . 7
Single-Sided or See-Through . . . . . . . . . . . . . . . . . . . . . . . 8
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
(Front, Side or Open Top Discharge) . . . . . . . . . . . . . . . . . . . . 9
Install Register Cover - Side Discharge Only . . . . . . . . . . . . 11
Management Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Passive Heat Kit
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
Hearth & Home Technologies • PH-FRT, PH-SIDE Instructions • 2600-970 Rev. H • 4/20
PH-FRT, PH-SIDE
Installation Instructions
Introduction
The Passive Heat (PH-FRT, PH-SIDE) Heat Manage-
ment System conveys warm air from the fireplace into the
same room through either a front discharge slot or two
side discharge heat registers. Installation of the Passive
Heat kit must be done in conjunction with the appliance
installation. Installation of this kit MUST be performed by
a qualified service technician.
WARNING! Risk of Fire! DO NOT install the Passive
Heat (PH-FRT or PH-SIDE) Heat Management System
with models that are not approved. Overheating will oc-
cur.
The Passive Heat Trim Kit (PHTRIM-XX) is also available
for installation with the Front Discharge Passive Heat
systems and must be purchased separately. Follow in-
structions included with the trim kit to complete installation
of the Passive Heat system.
The Passive Heat kit is tested and safe when installed in
accordance with this installation manual. It is your respon-
sibility to read all instructions before starting installation
and to follow these instructions carefully during installation.
The Passive Heat kit is carefully engineered and must
be installed only as specified. If you modify it or any of
its components you will void the warranty, and you may
possibly cause a fire hazard. Installation must be done
according to applicable local, state, provincial, and/or
national codes.
Preparation
Plan the location of the appliance.
Determine whether front or side discharge is to be installed
and follow instructions for the appropriate application.
Power Vent Option
If an optional power vent will be installed in conjunction
with the Passive Heat Kit (PH-FRT or PH-SIDE), Hearth &
Home Technologies recommends the PVLP-SLP power vent
option. If the application does not allow for the PVLP-SLP
to be used, the PVI-SLP-B may be used. The PVI-SLP-B
must be mounted outside the chase due to the higher
noise level created.
CAUTION! Risk of Burns!
• Appliance MUST be turned off and cooled before kit is
installed.
• Shut off gas supply.
1
Advertisement
Table of Contents
Related Manuals for Hearth & Home MEZZO-C Series
Summary of Contents for Hearth & Home MEZZO-C Series
-
Page 1: Table Of Contents
PH-FRT, PH-SIDE Models: MEZZO-C Series, CRAVE-C Series, ECHELON-C Series Passive Heat Kit Installation Instructions Introduction Leave this manual with party responsible for use and operation. The Passive Heat (PH-FRT, PH-SIDE) Heat Manage- ment System conveys warm air from the fireplace into the same room through either a front discharge slot or two CAUTION! Risk of Cuts, Abrasions or Flying Debris. -
Page 2: Kit Contents
Kit Contents Contents of Side Discharge Kit PH-SIDE Verify and remove contents from packaging before beginning installation. See Figure 1 (Front Discharge) or SIDE DISCHARGE KIT (PH-SIDE) Figure 2 (Side Discharge). DESCRIPTION SERVICE PART NO. Contents of Front Discharge Kit PH-FRT Register Cover 2560-120 Inner Flue, Top... -
Page 3: Clearances
Clearances Clearance - Sprinkler to Passive Heat WARNING! Risk of Fire! Maintain clearances to com- Figure 3 references the clearances that must be adhered bustibles as specified. to when installing a sprinkler head near a passive heat Ensure all clearances are maintained. discharge opening. -
Page 4: Mantel Projections
Mantel Projections Framing 1. Dimensions for framing using front discharge are Refer to the appliance Installation Manual. shown in Figure 5 using either the trim kit or using the clean face finishing method. 2. Figure 6 shows the framing requirements for the PH-SIDE kit using a side discharge. -
Page 5: Good Faith Tv Guidelines
Good Faith TV Guidelines Good Faith Guidelines for TV Installations Above a MEZZO-C/CRAVE-C/ECHELON-C Fireplace with Passive Heat Option (Single-Sided Appliance Shown) WARNING! Risk of Fire! Wire mesh required on bottom of discharge opening when discharge opening is greater than 3 inches. Secure wire mesh to top of framing. 1-1/2 IN. -
Page 6: Framing Dimensions - Passive Heat Front Discharge (Ph-Frt) Single-Sided Or See-Through
Framing Dimensions - Passive Heat Front Discharge (PH-FRT) Single-Sided or See-Through Front Discharge: Air conveyed into the room through one front discharge slot. CHASE DETAIL 1-1/2 IN. (2 X 4 FRAMING) ROOM CEILING 2 IN. MIN. CHASE CEILING (REQUIRED) 1/2 IN. X 1/2 IN. WIRE MESH** WIRE MESH** = PASSIVE HEAT... -
Page 7: Framing Dimensions - Passive Heat Side Discharge (Ph-Side) Single-Sided Or See-Through
Framing Dimensions - Passive Heat Side Discharge (PH-SIDE) Single-Sided or See-Through Side Discharge: Air conveyed into the room through two discharge registers, one on each side of appliance. CHASE DETAIL E = NON-COMBUSTIBLE ZONE 1-1/2 IN. (2 X 4 FRAMING) (BOTH SIDES) CHASE CEILING ZONE ROOM CEILING... -
Page 8: Framing Dimensions - Passive Heat Open Top Discharge Single-Sided Or See-Through
Framing Dimensions - Passive Heat Open Top Discharge Single-Sided or See-Through Open Top Discharge: Both sides and the top are open allowing air to be conveyed into the room. WARNING! Risk of Fire! Wire mesh required on bottom of discharge opening when discharge opening is greater than 3 inches. -
Page 9: Installation Instructions
Installation Instructions 3. Set a collar in each of the holes where the knockouts were removed. See Figure 10. (Front, Side or Open Top Discharge) CAUTION! Risk of Cuts, Abrasions or Flying Debris. Wear protective gloves and safety glasses during installation. - Page 10 Figure 12 Pull Tools Separated 6. Insert pull tool into slots on left and right sides of appliance. See Figure 13. 7. Carefully pull the heat shield out of the appliance as shown in Figure 14 and Figure 15. Discard heat Figure 15 Remove Heat Shield shield.
-
Page 11: Install Register Cover - Side Discharge Only
Install Register Cover - Side Discharge Only Installation of Passive Heat with Other Optional Heat Management Systems WARNING! Risk of Overheating! Both passive heat There are other heat management options available for side discharge assemblies included with kit MUST be use with the MEZZO-C, CRAVE-C and ECHELON-C installed and operational.
