Epygi QUADRO FXO Administrator's Manual

Pstn/voip gateway
Hide thumbs Also See for QUADRO FXO:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

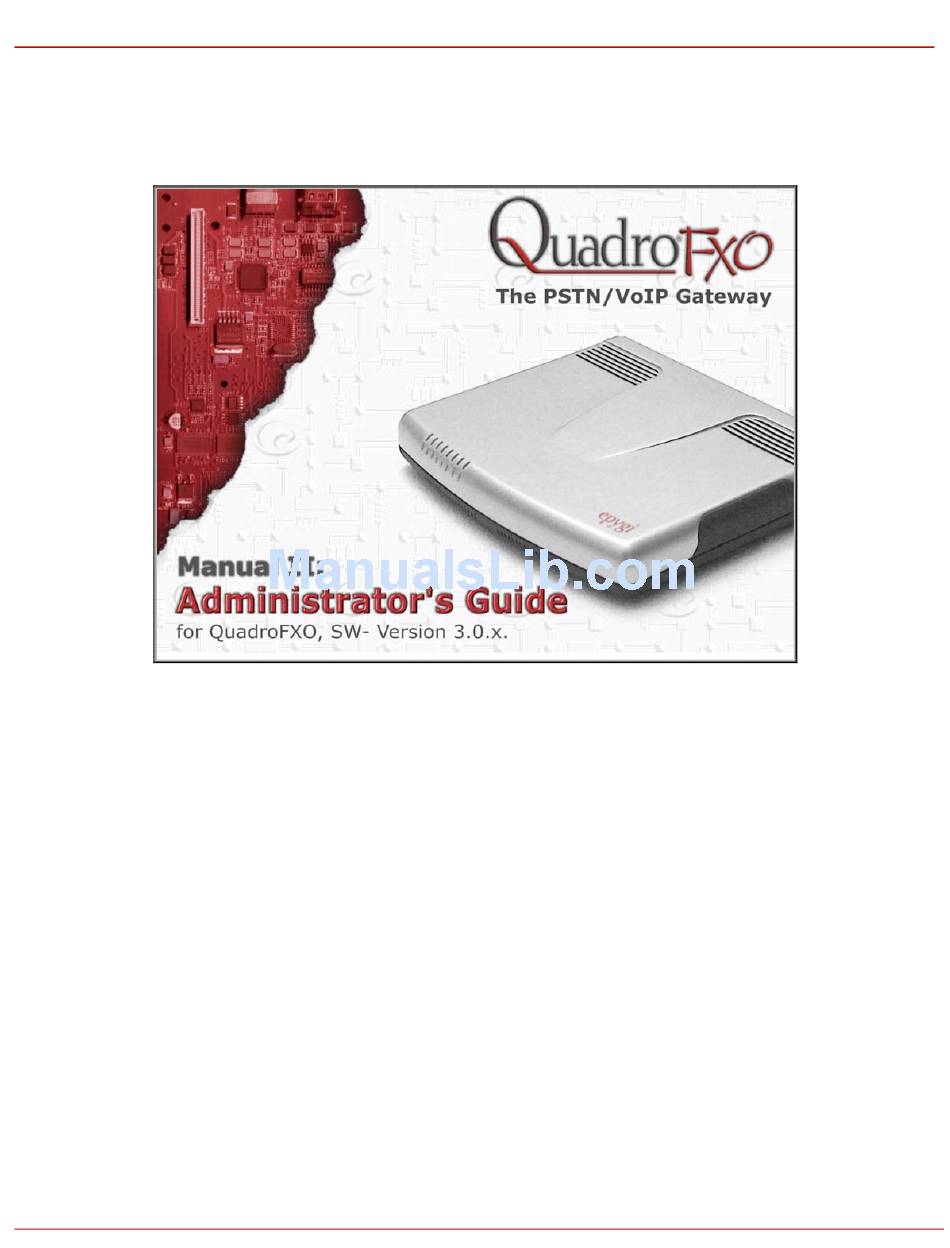

QuadroFXO Manual II: Administrator's Guide
Edition 1, SW Release 3.0.10 and higher, October 2005
QuadroFXO; SW Version 3.0.x

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUADRO FXO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Epygi QUADRO FXO

Summary of Contents for Epygi QUADRO FXO

  • Page 1 QuadroFXO Manual II: Administrator's Guide Edition 1, SW Release 3.0.10 and higher, October 2005 QuadroFXO; SW Version 3.0.x...

  • Page 2: Table Of Contents

    QuadroFXO Manual II: Administrator's Guide Table of Contents Manual I: see Installation Guide Step-by-step guide to install and configure Quadro. Manual II: Administrator's Guide About this Administrator's Guide.....................4 Quadro’s Graphical Interface ....................5 Administrator’s Main Page ......................5 Recurrent Buttons .......................... 6 Recurrent Functional Buttons......................
  • Page 3 QuadroFXO Manual II: Administrator's Guide QuadroFXO’s Feature Codes ....................73 Establishing a call ........................73 Administrator Login........................73 Appendix: System Default Values ..................74 Administrator Settings ......................... 74 Extension Settings ........................75 Appendix: Software License Agreement ................76 QuadroFXO; SW Version 3.0.x...

  • Page 4: Manual Ii: Administrator's Guide

    Manual I: Installation Guide gives step-by-step instructions to provision the QuadroFXO and configure the phone extensions with the Epygi SIP Server. After successfully configuring the Quadro, a user will be able to make SIP phone calls to remote Quadro devices, make local calls to the PSTN and access the Internet from devices connected to the LAN.

  • Page 5: Quadro's Graphical Interface

    QuadroFXO Manual II: Administrator's Guide Quadro's Graphical Interface Quadro’s Graphical Interface Administrator’s Main Page As the result of logging in as an administrator, the page Quadro Management is displayed with a table of active calls (including information about call peers, call duration and start time) at the startup. Here the administrator may access the following settings and perform the actions: Fig.

  • Page 6: Recurrent Buttons

    QuadroFXO Manual II: Administrator's Guide Quadro's Graphical Interface Recurrent Buttons Button Description Button Description This button leads back to the previous This button leads back to the page you have page of a fixed sequence of pages (used been on before. mainly in wizards).

  • Page 7: Administrator's Menus

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Administrator’s Menus System Menu Fig. II-1: System Menu in Dynamo theme Fig. II-2: System Menu in Plain theme System Configuration Wizard The System Configuration Wizard is the helpful tool for the administrator to define the Quadro’s Local Area Network settings and to specify regional configuration settings to make Quadro operational in its LAN.
  • Page 8 QuadroFXO Manual II: Administrator's Guide Administrator's Menus The System Configuration page contains the host name, IP address and Subnet Mask information about the Quadro LAN interface. These settings make Quadro available to the internal network. The System Configuration page offers the following input options: Host Name requires a host name for the Quadro device.

  • Page 9: Internet Configuration Wizard

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Internet Configuration Wizard The Internet Configuration Wizard is the helpful tool for the administrator to configure the WAN interface settings and to adjust Quadro’s connectivity with an external network. The Internet Configuration Wizard MUST be run if it is desired for Quadro to be connected to the Internet.
  • Page 10 QuadroFXO Manual II: Administrator's Guide Administrator's Menus The WAN Interface Bandwidth settings allow the specification of the upstream and downstream speeds in kbit/s, helping to assure the quality of IP calls. An IP call looses the voice quality if there will be no available bandwidth. In case of reaching the borders of bandwidth, another IP call will be declined.
  • Page 11 QuadroFXO Manual II: Administrator's Guide Administrator's Menus The WAN IP Configuration page only is displayed if Ethernet or PPTP has been selected to be the uplink protocol. It offers the following components: The Assign automatically via DHCP radio-button selection switches to automatic retrieval of the WAN IP address from a DHCP server at the ISP/uplink.

  • Page 12: Status

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Status The system status window displays non-editable tables providing extensive status information about Quadro: General Information, Network Status, Lines Status, Memory Status, Hardware Status SIP Registration Status. The links on this page lead to device Transfer Statistics, user mailboxes and supplementary services configuration pages.
  • Page 13 QuadroFXO Manual II: Administrator's Guide Administrator's Menus The Transfer Statistics page allows a user-defined statistic table depending on the transmit/receive value (criteria), interface type and time period. It contains the following components: Time Range of statistic table - the drop down list includes the period(in days) statistics data is to be collected and the corresponding diagram charts are to be built.
  • Page 14 QuadroFXO Manual II: Administrator's Guide Administrator's Menus Lines Status The page Quadro Status - Lines Status shows the current status of each FXO line with all details of the active calls. Since only one line of information can be displayed at a time, the FXO# functional buttons are used to navigate through the other lines’ information. The Lines Status table of each FXO Line gives information about the Allowed Call Types, shows the extension number (attendant or routing client), shows to whom the Incoming Call is Routed To and displays...

  • Page 15: Ip Routing Configuration

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Hardware Status The Hardware Status table displays a list of the hardware devices present and currently available on the Quadro board. The hardware device version number and additional comments about its state are indicated here.
  • Page 16 QuadroFXO Manual II: Administrator's Guide Administrator's Menus The page Add IP Static Route offers the following components: Route To requires the IP address and subnet mask of the destination the IP packet ought to be forwarded to. Via IP address requires the IP address of the subsequent router for IP packet forwarding to the specified destination.

  • Page 17: Configuration Management

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Configuration Management The Configuration Management assists the administrator to manage the system configuration settings and voice data, i.e., to backup and download the settings to the PC and then to upload and restore them back to the Quadro. Additionally this page gives a possibility to restore the factory default configuration settings.

  • Page 18: Update Configuration

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Update Configuration The Update Configuration allows to automatically or interactively update Quadro’s configuration, as well as to download a legible and editable configuration file, make necessary changes and upload it back to the system. This particularly allows to use parts of the configuration of one Quadro on another Quadro with some changes done prior to uploading the new configuration.

  • Page 19: Events

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Configuration Summary page is used to define the necessary configuration part and to download it to PC or to view it directly in the browser. In the text field on this page configuration part need to be downloaded should be specified.
  • Page 20 QuadroFXO Manual II: Administrator's Guide Administrator's Menus Numerous circumstances may cause a certain application on Quadro to flag an event. The page Event Settings lists all possible events on the Quadro and allows controlling the way of notification (action), if one of those events takes place.

  • Page 21: Time/Date Settings

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Time/Date Settings The Time and Date Settings provide information about the current system time and date. The settings may be updated through the international time and date servers. Time is used to set the local time (hour, minute). Date is used to set the date (month, day, year).

  • Page 22: Mail Settings

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Mail Settings The System Mail Settings page gives a possibility to send warnings automatically about the board status or problems to the administrator. System events that require email notification are selected on the Events page.

  • Page 23: Firmware Update

    Firmware Update This window allows to update the software of Quadro by installing new firmware called image. Users registered at Epygi will receive a notice when new firmware is available and will be able to download it from the Epygi Technical Support WEB page.

  • Page 24: Networking Tools

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Networking Tools The Networking Tools provide the possibility to check the Internet connection. Ping sends four ICMP (Internet Control Message Protocol) requests with a default size of 64 bytes to the destination (IP address or host name) specified in the text field Ping Target.

  • Page 25: Diagnostics

    The Download system logs button is used to download all logs to the local PC as a *.tar archive file. These logs can then be used by the Epygi Technical Support Office to determine the problem that had occurred on your Quadro.

  • Page 26: Users Menu

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Users Menu F Fig. II-40: Telephone Users Menu in Plain Theme Fig. II-39: Telephone Users Menu in Dynamo Theme User Management The User Management is used to create user extensions and auto attendants on the Quadro. From this page, by clicking on the user extension, administrator can get the extension settings pages.
  • Page 27 QuadroFXO Manual II: Administrator's Guide Administrator's Menus • Attached Line - indicates the FXS or IP line corresponding extension is attached to. “R” is displayed in this column when SIP Remote Extension (see below) functionality is enabled on the extension. •...
  • Page 28 Registration SIP Server indicates the host address of the SIP server. The field is not limited regarding symbol usage and length as it can be either an IP address, e.g., 192.168.0.26 or a host address, e.g., sip.epygi.com. Registration SIP Port indicates the host port number to connect to the SIP server. The SIP server port may only contain digit values, otherwise the error message “SIP Server Port is incorrect”...
  • Page 29 QuadroFXO Manual II: Administrator's Guide Administrator's Menus • Send AA Digits to Routing Table checkbox selection switches the Auto Attendant to the routing mode. Any inserted digits in the Connection menu will be parsed through the Routing Table on the Quadro. Please Note: This checkbox affects ONLY Connections Menu (see Auto Attendant Services).
  • Page 30 Upload Scenario File indicates the file name used to upload a new scenario file. The uploaded file needs to be in EpygiXML format (the coding standard can be found at Epygi Technical Support) and is restricted to 20KB file size. Browse opens the file chooser window to browse for a custom scenario file.
  • Page 31 QuadroFXO Manual II: Administrator's Guide Administrator's Menus prevents uploading also if there is not enough memory available for the corresponding extension. This will cause the “You do not have enough space” warning. Browse opens the file chooser window to browse for a default hold music file. The Download Default Hold Music link appears only if default hold music has been previously uploaded.
  • Page 32 QuadroFXO Manual II: Administrator's Guide Administrator's Menus Configure SIP Registration Settings (SIP server, port number, SIP registration user name, and the password) and Enable Registration on SIP Server, if needed. Configure Advanced SIP Settings (User ID, Send Keep-alive Messages to Proxy, Outbound Proxy, Secondary SIP Server and Outbound Proxy for Secondary SIP Server).
  • Page 33 QuadroFXO Manual II: Administrator's Guide Administrator's Menus SIP Advanced Settings The SIP Advanced Settings page is used to configure the Outbound Proxy, Secondary SIP Server and Outbound Proxy for the Secondary SIP Server settings and to define other SIP server specific settings. SIP Outbound proxy is such a SIP server, where all the SIP requests and other SIP messages are transferred.
  • Page 34 QuadroFXO Manual II: Administrator's Guide Administrator's Menus Add opens the Add Entry page where the user may add codecs supported by Quadro. The voice codec defines the voice compression algorithm for the incoming and outgoing DSP packages. Codecs lists all codecs supported by Quadro. If no more codecs are available (all available codecs have already been transferred to the Active Codecs table), the Add Entry page will display the message “No Available Codecs”...

  • Page 35: Change Admin Password

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Being registered in the Authorized Phones Database once (by means of Permanent Call Back service or from the Quadro’s Web Management), PSTN caller is able to use Instant Call Back service, i.e. next time when calling from the same PSTN number to the Quadro and hanging up after the second ring, the system will call the defined Call Back destination since the number is already registered in the Authorized Phones Database on the Quadro.

  • Page 36: Telephony Menu

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Telephony Menu Fig. II-52: Telephony Menu in Dynamo Theme Fig. II-53: Telephony Menu in Plain Theme Call Statistics The Call Statistics page displays four tables and provides information on successful, unsuccessful and missed incoming and outgoing calls on the first three tables, and statistics settings on the fourth page.
  • Page 37 QuadroFXO Manual II: Administrator's Guide Administrator's Menus Calling Phone and Called Phone respectively require the caller and called party’s SIP address (see chapter Entering a SIP Addresses correctly), extension or PSTN number as search criteria. Wildcard symbols are allowed here. The Call Statistics: Successful Calls, Missed Calls and NonSuccessful Calls tables are lists of successful, missed and unsuccessful incoming and outgoing calls and their parameters (Call Start Time, Call Duration, Call destinations).

  • Page 38: Sip Settings

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus SIP Settings The SIP Settings provide information on the SIP receive UDP and TCP ports and allows to select DNS server configuration for SIP and SIP timers scheme. UDP Port indicates the SIP UDP (User Datagram Protocol) receive port number.

  • Page 39: Rtp Settings

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus RTP Settings The RTP Settings page allows the administrator to configure the codec’s packet size and silence suppression for each voice codec, to select the G726 codec standard, to define RTP/RTCP port ranges, etc. All parameters listed on this page may be modified and submitted. The Codec Properties table lists all codecs with the corresponding packetization interval and information about silence suppression.
  • Page 40 QuadroFXO Manual II: Administrator's Guide Administrator's Menus The RTP Settings – Edit Entry page offers a drop down list and a checkbox. Packetization Interval contains possible values (in milliseconds) to be configured for the selected codec. The Enable Silence Suppression checkbox selection enables voice activity detection for the selected codec.

  • Page 41: Nat Traversal Settings

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus NAT Traversal Settings The NAT Traversal Settings page is divided into separate pages used to configure SIP NAT parameters, RTP and STUN parameters for NAT and a page where the NAT Exclusion table may be filled. Use NAT Traversal for SIP checkbox applies to all pages and is used to enable NAT traversal for the SIP traffic, hence any incoming and outgoing SIP messages from and to the Quadro will be routed through the NAT PC.
  • Page 42 QuadroFXO Manual II: Administrator's Guide Administrator's Menus STUN Parameters page enables automatic configuration through the STUN server and is used to configure the STUN (Simple Traversal of UDP over NAT) client on the Quadro. The page requires the following data to be inserted: The STUN Server text field requires the STUN server’s hostname or IP address.
  • Page 43 QuadroFXO Manual II: Administrator's Guide Administrator's Menus To Configure the NAT Exclusion Table Press the Add button on the NAT Exclusion Table page. The Add Entry page will appear in the browser window. Specify an IP Address and its Subnet Mask in the corresponding text fields. Press Save on the Add Entry page to add the selected IP range to the NAT Exclusion Table list.

  • Page 44: Fxo Settings

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus FXO Settings The FXO Settings are used to configure the FXO support that allows Quadro to connect to other PBXs or analog telephone lines. The FXO Settings also give a possibility to limit incoming or outgoing calls for the selected FXO line if required. Depending on the Quadro model, several FXO ports will be available on the board, thus giving the possibility to connect several PSTN lines to the Quadro and to use them simultaneously.

  • Page 45: Gain Control

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Gain Control The Gain Control settings are used to define the transmit and receive gains. For FXS lines, Transmit Gain defines the phone speaker volume and Receive Gain defines the phone microphone volume. For FXO lines/ISDN trunk Transmit Gain defines the level of voice transmitted from Quadro to the PSTN/ISDN network and Receive Gain defines the volume of voice received by Quadro from the PSTN/ISDN network.
  • Page 46 QuadroFXO Manual II: Administrator's Guide Administrator's Menus Fig. II-69: Local Routing table Defining patterns in the Local Routing Table avoids registering Quadro at the routing management server and gives a possibility to establish a direct connection to the destination or to use a SIP server for call routing. The Local Routing Table lists manually defined routing patterns along with their parameters (pattern number, state, routing and inbound caller settings, RTP Proxy and Date/Time period settings, metric and description), as well as automatically created and undeletable patters created from System Configuration Wizard.
  • Page 47 QuadroFXO Manual II: Administrator's Guide Administrator's Menus Since Local Routing Table may have multiple entries that could match to same pattern, the table will be internally rearranged according to the rules with these consequences: • The pattern matching best to the Best Matching algorithm will have the higher position in the rearranged list •...
  • Page 48 QuadroFXO Manual II: Administrator's Guide Administrator's Menus The second page of the Local Call Routing Wizard offers different components depending on the Call Type selected on the previous page. Use Extension Settings is applicable to SIP and IP-PSTN call types only and allows to select the extension (also Auto Attendant) on behalf of the call that will be placed.
  • Page 49 QuadroFXO Manual II: Administrator's Guide Administrator's Menus The Local Call Routing Wizard - Page 3 appears if the Fill Call Source Information checkbox previously had been enabled on Page 1 of the Local Routing Wizard, and it will require information about the Inbound caller. The Inbound Caller Pattern field requires the caller’s address where the current route will be applied.
  • Page 50 QuadroFXO Manual II: Administrator's Guide Administrator's Menus The Duplicate functional button is used to create a routing pattern with the settings of an exiting one. This is to avoid configuring a new routing entry completely by duplicating an existing entry with different settings. To use the Duplicate button only one record may be selected, otherwise an error will occur: “One row should be selected”.
  • Page 51 QuadroFXO Manual II: Administrator's Guide Administrator's Menus Specify the Destination Host and Port Number, Username and Password if IP or IP-PSTN call type has been selected. For IP-PSTN call type, enable Multiple Logons if necessary. Enable Use RTP Proxy checkbox, if needed. Choose the Authentication and Accounting method from AAA Required drop down list.

  • Page 52: Voip Carrier Wizard

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus VoIP Carrier Wizard VoIP Carrier Wizard is used to define access codes for available VoIP Carrier account which will particularly allow to reach users over IP-PSTN providers or to call to the peers registered on the certain SIP servers by dialing simple digit combinations. For each configured VoIP carrier, wizard creates specific IP-PSTN routing rule in the Local Call Routing table.

  • Page 53: Radius Client Settings

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus UserID requires an identification parameter to reach the SIP server. It should have been provided by the SIP service provider and can be requested for some SIP servers only, for others, the field should be left empty. Send Keep-alive Messages to Proxy enables the SIP registration server accessibility verification mechanism.

  • Page 54: Dial Plan Settings

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus 1. Registration Settings Primary Server requires the IP address of the primary Radius Server. Secondary Server requires the IP address of the secondary Radius Server. NAT Station IP text fields require the NAT PC WAN IP address. If no NAT Station is specified here, Quadro’s IP address will be sent to the RADIUS server.

  • Page 55: Internet Uplink Menu

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Internet Uplink Menu Fig. II-81: Internet Uplink menu in Dynamo theme Fig. II-82: Internet Uplink menu in Plain theme PPP Dial Settings The PPP Dial Settings page is used to establish a connection over the DSL link or any other type of uplink, to the ISP (provider party). A connection is needed to set up and to make or receive calls through PPP over Ethernet.

  • Page 56: Isp Authentication Settings

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus The Advanced PPP Settings page offers a group of checkboxes: Enable automatic PPP restart at checkbox is used to select the time when PPP connection will be automatically restarted. Checkbox selection enables LCP echo failures text field that indicates the number of LCP echo failure packets received before the PPP connection will be considered as dead and will be restarted.
  • Page 57 QuadroFXO Manual II: Administrator's Guide Administrator's Menus Firewall Configuration page offers following components: The Enable NAT checkbox selection enables Network Address Translation. The Enable Firewall checkbox selection enables the firewall security service. The firewall security level has to be selected, otherwise the firewall cannot be enabled.

  • Page 58: Filtering Rules

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Filtering Rules The Filtering Rules page allows the configuration of filters for the incoming and outgoing traffic. To prevent misconfiguration, only one rule per service is allowed. The user may use IP groups to include several IP addresses for this rule. As the filtering rules specify the operation mode of the firewall, they only take effect if the firewall has been enabled (additionally NAT should be enabled to use the Port Forwarding function in the Incoming Traffic / Port Forwarding filtering rules).
  • Page 59 QuadroFXO Manual II: Administrator's Guide Administrator's Menus For example, the page to add a rule for Incoming Traffic/Port Forwarding offers the following input options: Service includes a list of possible services to be configured. All user defined services also will be displayed in this list. Action includes possible actions to setup the rule.
  • Page 60 QuadroFXO Manual II: Administrator's Guide Administrator's Menus Service Pool The Service Pool table is a list of all created services and their parameters. It is used to add new services with the appropriate settings (protocol type and port range). New services can be used to add a restriction or permission by defining a new filtering rule: Add opens the Add New Service page where new services may be added.
  • Page 61 QuadroFXO Manual II: Administrator's Guide Administrator's Menus IP Pool The Manage IP Pool Groups link opens the IP Pool Configuration page. The IP Pool table is the list of all added groups and the members assigned to these groups. If a group is empty, EMPTY will be indicated in the Members column.
  • Page 62 QuadroFXO Manual II: Administrator's Guide Administrator's Menus To Add a new Group with Members Select the Manage IP Pool Groups link on the Filtering Rules page. Click on the Add button on the IP Pool Configuration page. A page where a new group may be added will appear in the browser window. Define a group name in the New Group text field.

  • Page 63: Lan Services Menu

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus LAN Services Menu Fig. II-97: LAN Services menu in Plain theme Fig. II-96: LAN Services menu in Dynamo theme DNS Settings The DNS Settings page gives the possibility to setup a name server for the Quadro. It offers the following components: NameserverAssignment radio buttons: •...

  • Page 64: Dhcp Settings For The Lan Interface

    The Registration Form page appears when administrating an unregistered Quadro, and has been established for customer support purposes. The page requires customer registration at the Epygi Technical Support Center. It provides several links offering registration options: Register now leads to the Epygi Technical Support System Registration page and requires customer’s information to...

  • Page 65: Additional Features Of Administrator In Extension User's Menus

    QuadroFXO Manual II: Administrator's Guide Administrator's Menus Additional Features of Administrator in Extension User’s Menus As a result of entering the Extension Settings page via User Management table, the page shown below will be displayed as a startup. The following settings can be configured here that are private for each extension: Your Extension •...

  • Page 66: Extension User's Menus

    Quadro Manual II: Administrator's Guide Extension User's Menus Extension User's Menus Your Extension Fig.0-1 Your Extension menu in Dynamo theme Fig. III-2 Your Extension menu in Plain Theme Call Statistics The page Call Statistics allow collecting the call events and their parameters over the Quadro, i.e. incoming and outgoing calls reporting. It contains three tables and provides reports on successful, not successful and missed incoming and outgoing calls for the current extension only.

  • Page 67: Account Settings

    Quadro Manual II: Administrator's Guide Extension User's Menus Account Settings The Account Settings page provides information on the extension display name, allows changing the user password, enabling user password protection for incoming/outgoing calls and downloading/uploading of a file with the user-defined voice greetings. All parameters listed on this page may be modified and submitted.

  • Page 68: Call Handling

    Quadro Manual II: Administrator's Guide Extension User's Menus Call Handling Fig. III-6 Call Handling menu in Dynamo Theme Fig. III-7 Call Handling menu in Plain Theme Supplementary Services The Supplementary Services page provides a possibility to configure a set of telephony settings from the same page. Call Forwarding, Incoming and Outgoing Call Blocking Settings, Call Hunting settings are configurable from this page.
  • Page 69 Quadro Manual II: Administrator's Guide Extension User's Menus Addresses requires a SIP address (see chapter Entering a SIP Addresses correctly), an extension or a PSTN number, for whom supplementary services should be applied. If the address already exists in the table, selecting Save will give the error “Caller address already exists”. Wildcard is allowed in this field (see chapter Entering a SIP Addresses correctly).
  • Page 70 Quadro Manual II: Administrator's Guide Extension User's Menus Incoming Call Blocking Incoming Call Blocking allows blocking unwanted incoming calls for a Quadro extension. This page provides the necessary settings for incoming call blocking. It indicates if the service is enabled for the particular caller and whether or not the custom message will be used to inform the caller about the call being blocked.
  • Page 71 Quadro Manual II: Administrator's Guide Extension User's Menus Call Hunting The Call Hunting service provides the possibility of incoming call consecutive ringing on several extensions depending on the calling party. The Call Hunting page contains a table where all the participants in the call hunting group for the corresponding extension should be defined. Attention: By configuring the Call Hunting service, Forwarding and Many Extensions Ringing automatically will be disabled on the current extension.

  • Page 72: System Settings

    Quadro Manual II: Administrator's Guide Extension User's Menus addresses will apply the configuration of supplementary services to all extensions or PSTN users. Two digits should be inserted in the Forward To text field for the PBX call type. The PSTN number length depends on the area code and phone number.

  • Page 73: Quadrofxo's Feature Codes

    Quadro Manual II: Administrator's Guide QuadroFXO's Feature Codes QuadroFXO’s Feature Codes This chapter describes how to Establishing a Call on the Quadro. Establishing a call To make a call, dial the Routing Number. Routing Numbers and available routs to, from and through Quadro are listed in the Local Routing Table, which is configured and managed by Quadro’s Administrator.

  • Page 74: Appendix: System Default Values

    Regional Settings Language - English Theme - Dynamo NTP Server and Client - Enabled Polling interval - 6 Time/Date Settings Predefined NTP Server - npi1.epygi.com WAN Interface Protocol Ethernet Upstream – 10000 WAN Interface Bandwidth Downstream – 10000 Min Data Rate – 0...

  • Page 75: Extension Settings

    System Default Value Comments 00 Attendant extensions exist Display name - Attendant SIP registration settings: SIP server - sip.epygi.com SIP Server port - 5060 User Management Ext: 00: 3% space for Voice Data Registration username and password - automatically generated...

  • Page 76: Appendix: Software License Agreement

    • License. Epygi Technologies, Ltd. (the "Licensor"), hereby grants to you a non-exclusive right to use the Quadro Operational Software program, the documentation for the software and such revisions for the software and documentation as the Licensor may make available to you from time to time (collectively, the "Licensed Materials").
  • Page 77 If you have any questions about this Agreement, please write to Epygi at 6900 North Dallas Parkway, Suite 850, Plano, Texas 75024 or call Epygi at 972.692.1166.
