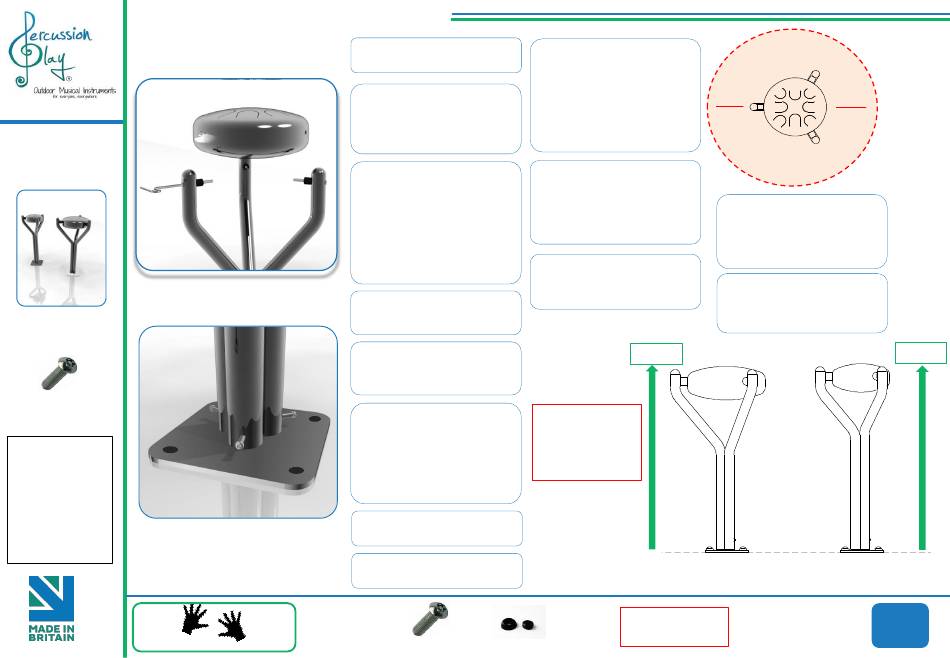

Percussion Play Surface Fixed Installation Instructions

Installation Instructions

Surface Fixed
Babel Drum
Page 1 of 2
Instrument
Components:
x3
M8x25mm Pin Torx

Metric Conversion:

200mm/ 8"
400mm/ 16"
570mm/ 22"
600mm/ 24"
700mm/ 28"
770mm/ 30"
870mm/ 34"
1070mm/ 42"
1.5m/ 59"
Weight of heaviest part
Weight of heaviest part
Played with hands
BS EN 1176
1. Unpack ground fixing legs
3no.
2. Lay packaging out on floor
or assemble on non-abrasive
surface to prevent marking of
polished stainless steel.
3. Align holes on legs to holes
on surface fixing(opposite end
to polished domes) and secure
in place using 3no. M10 x
30mm Screws provided
Tools required TX 45 Driver
Bit)
4. Invert assembled frame so
domed ends face upwards.
5. Place 8mm Hex Key
supplied into hole in leg and
lock into internal bolt.
6. Remove M10 nut on
opposite side of leg and
keeping Hex Key in place, slide
black polyurethane damper
over bolt until flush with end
of bolt. Repeat for other 2 legs
7. Unpack babel drum leaving
black film in place to protect.
8. Align holes in side of babel
17.5kg (Large Babel Drum)
drum with bolts on legs.
13.4kg (Small Babel Drum)
Ground Fix
Components:
M10x30 Security Screw
9. Using 8mm Hex Key screw
bolts into drum to secure in
place.
Use thread locking solution
All hole locations are laser cut
for accuracy to ensure holes in
drum align perfectly with legs.
10. Using TX40 driver provided
secure M8 x 25mm security
bolts into external holes in
legs 3no. Use thread lock
solution
11.Locate Babel Drum in
desired location and mark
holes to fix to desired surface.
CAUTION: Drum
surface can get hot
in direct sunlight, if
possible install in
shaded areas.
x3
Ground Anchors
x4
not supplied
2 Part Cover Cap
1.5m
12. Fix to Surface using
recommended ground
anchors (Ground Anchors are
not supplied)
13. Make sure all fixings are
covered and secure using
cover caps provided
990mm
Ground Surface
Large 8 note
Spares available form
percussionplay.com
or from your
local distributor
Install
Instrument
with 1.5m free
space (from
widest point)
around it.
1.5m
1005mm
Small 6 note
22 Kg
13.4 Kg
