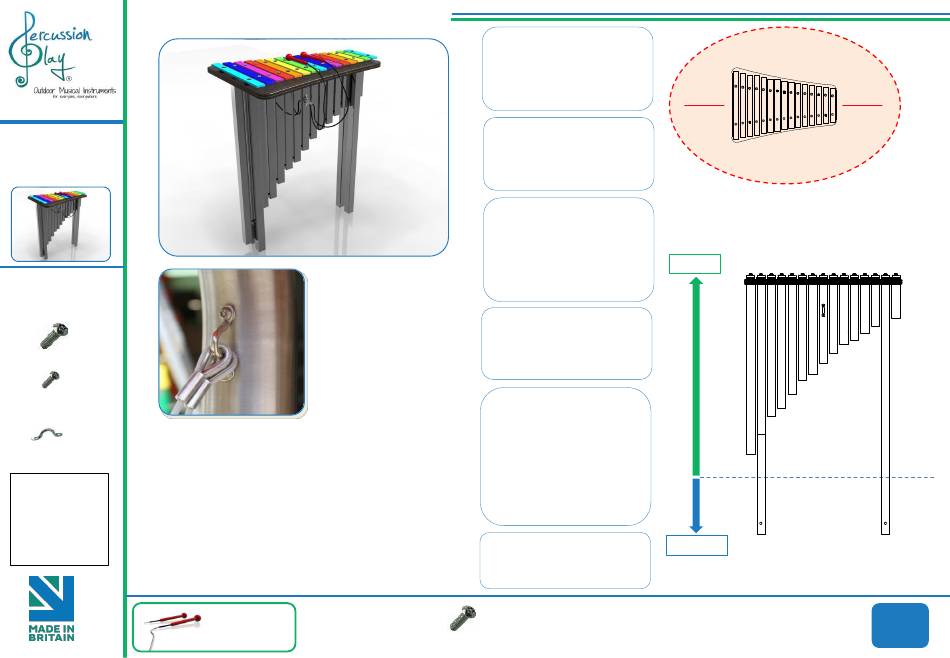

Percussion Play Capella Installation Instructions

Installation Instructions

Ground Fixed

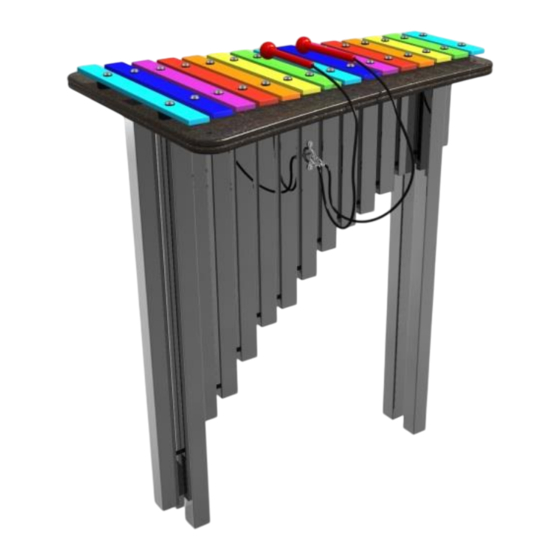

Capella
Page 1 of 3
Instrument
Components:
x8
M8x60 Security Screw
x2
M6x20 Security Screw
x2
M6 Saddle Strap
Metric Conversion:
250mm/ 10"
300mm/ 12"
450mm/ 18"
700mm/ 28"
850mm/ 33"
1.5m/ 59"
Weight of heaviest part
BS EN 1176
(1.3)
(1.1)
15kg (Resonators)
Ground Fix
Pair Small Red
Beaters X1
Components:
1. Attach the steel legs to the
resonators of the instrument
with the M8x60 security
screws and lock washers. (See
Assembly Guide)
2. Attach Ground Fixing s to
base of legs(1.2) (See Ground
Fix Post Installation Sheet)
3.Excavate 2 holes for the
Steel legs 250mm diameter by
450mm deep in desired
location upon decision from
customer.
4. Locate (lower) legs into
holes making sure they are
vertical and level prior to
concreting in place.
5. Once happy with location of
the Instrument, fill holes using
rapid hardening concrete. Be
sure to compact concrete
around legs and leave to dry
according to manufactures
guidelines.
6. Attach the 1 pair of beater
to the saddle strap on the leg.
(1.3)
x4
M10x30 Security Screw
1.5m 1.5m
930mm
Ground Surface
400mm
Spares available form
percussionplay.com
or from your local
distributor
Install Instrument
with 1.5m free space
(from widest point)
around it.
30 Kg
