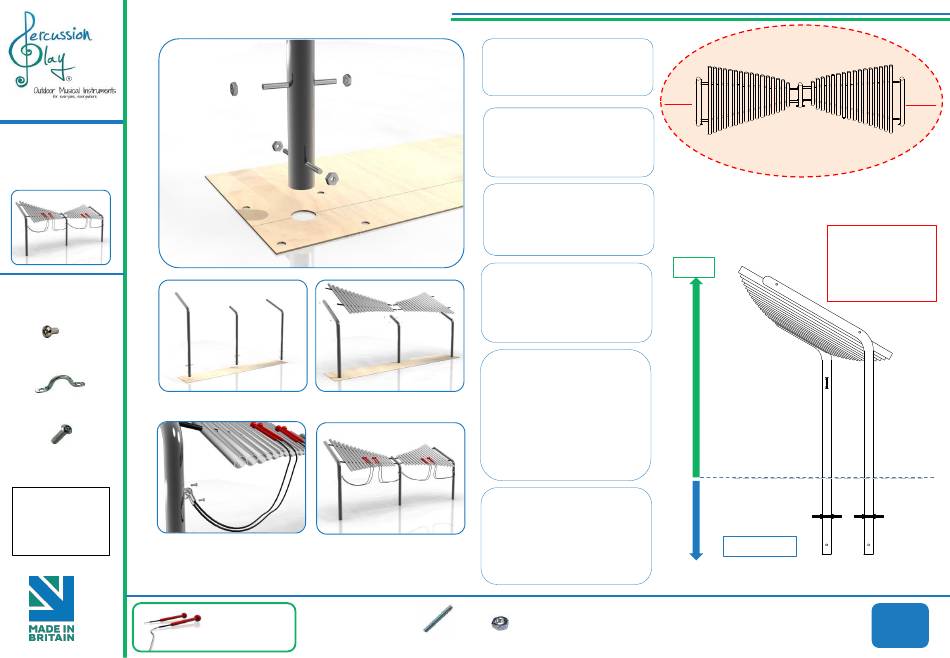

Percussion Play Papilio Bells Installation Instructions

Installation Instructions

(1.1)
Ground Fixed

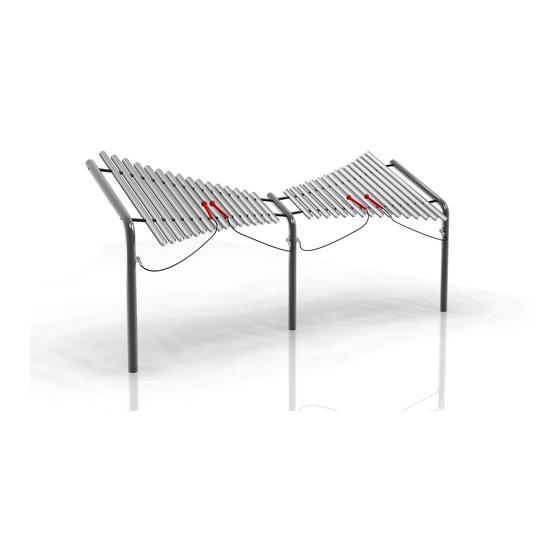

Papilio Bells
Page 1 of 3
Instrument
Components:
x8
M8 Barrel Nuts
Eye Straps
X4
M6x20mm
Secure Screw
X8
Metric Conversion:
250mm/ 10"
400mm/ 16"
1110mm/ 44"
1.5m/ 59"
Weight of heaviest part
BS EN 1176
(1.1)
13kg (Notes)
Ground Fix
Pair Small Red
Beaters X4
Components:
1. Attach M10x150 Bar and
Nuts to each of the 3 Legs.
(1.1) (See Assembly Guide)
2. Use wooden jig to mark out
hole positions for each of the 3
legs in desired location upon
decision from customer. .
3.Excavate 3 holes for the
Steel legs 250mm diameter by
400mm deep. (See GF Post
Installation Sheet)
4. Locate (lower) legs into
holes making sure they are
vertical and level and use jig
to check positioning
5. Once happy with location of
the Instrument, fill hole using
rapid hardening concrete. Be
sure to compact concrete
around legs and leave to dry
according to manufactures
guidelines, making sure to
leave jig in place until set.
6. Once concrete has set,
remove wooden jig and install
notes using M8 Barrel nuts
provided. Finally install
beaters using fixings provided.
(See Assembly Guide)
x6
x12
M10x150 Bolt M10 Nut
1.5m
CAUTION: Papilio
surface can get hot
in direct sunlight, if
1110
possible install in
shaded areas.
Ground Surface
400mm
Spares available form
percussionplay.com
or from your
local distributor
1.5m
Install Instrument
with 1.5m free space
(from widest point)
around it.
36 Kg
