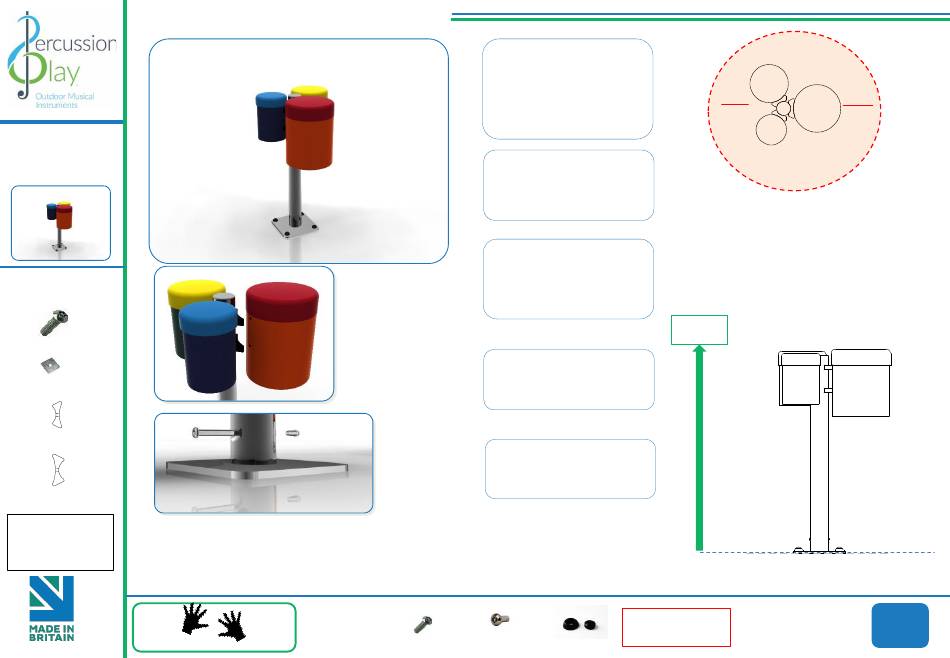

Installation Instructions
Surface Fixed

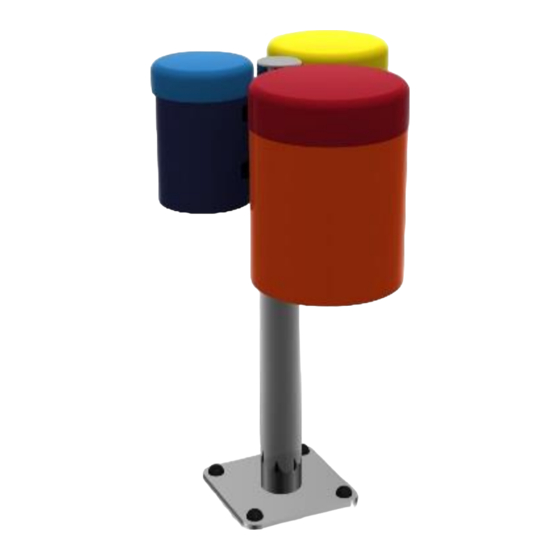

Rainbow Bongos
1 of 2
Instrument
Components:
x6
M10x50 Security Screw
x6
M10x50x3 Square washer
x4
PU 200 Mount
x2
PU 250 Mount
Metric Conversion:
250mm/ 10"
850mm/ 33"
1.5m/ 59"
Played with hands
BS EN 1176
(1.1)
(1.2)
Weight of heaviest part
7 kg
(bongos)
Surface Fix
Components:
1. Attach the steel leg to each
of the congas with the
M10x50 security screws,
square washers and PU
mounts. (1.1) (See Assembly
Guide)
2. Attach Surface Fixing posts
to legs(1.2) (See Ground Fix
Post Installation Sheet)
3.Locate Plate in desired
location and mark holes to fix
to desired surface.
4. Fix to Surface using
recommended ground
anchors not supplied
5. Make sure all fixings are
covered and secure using
cover caps provided
x1
x1
M10x70 Security Screw
M10 Barrel Nut
2 Part Cover Cap
1.5m
850mm
from Plate
Ground Surface
Spares available from
Ground Anchors
x4
percussionplay.com
not supplied
local distributor
Install Instrument
with 1.5m free space
(from widest point)
around it.
1.5m
15 Kg
or from your
