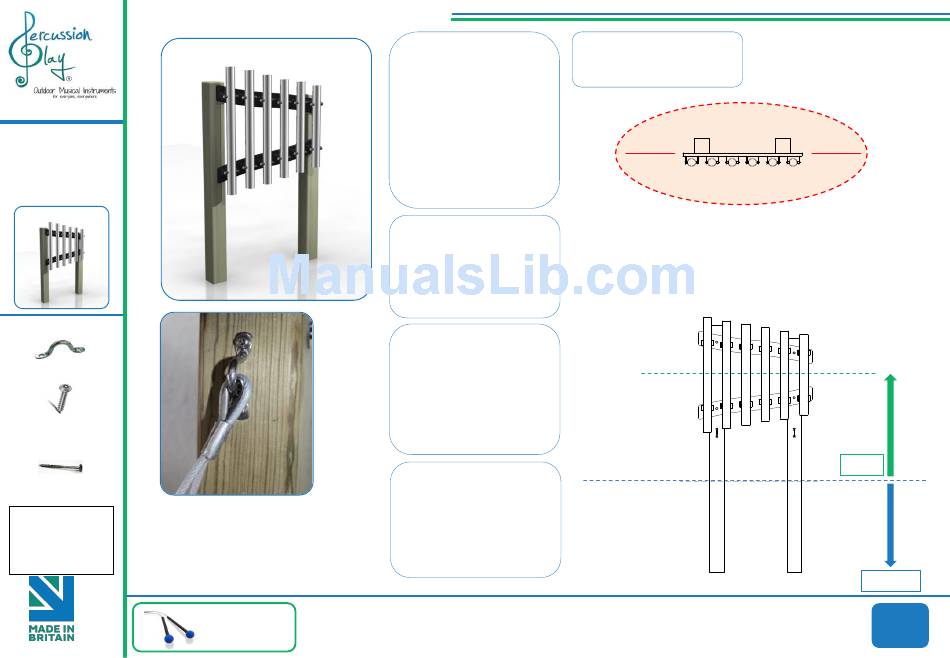

Percussion Play Soprano Pentatonic Installation Instructions

Installation Instructions

Ground Fixed
Freechimes
Alto/ Soprano
Page 1 of 3
Components:
Eye Straps
X2
10x38mm
Secure Screw
X4
6x80/50
Screw X4
Metric Conversion:
600mm/ 24"
700mm/ 28"
850mm/ 33"
1.5m/ 59"
Weight of heaviest part
BS EN 1176
1. Carefully lay 2 x legs on a
level surface and check
distance between legs is
equal. Line up pre drilled holes
in the backboards with the
legs and ensure the
instrument is aligned square
with the legs. Fix in place
using 6x80mm screws
supplied (see installation
guide)
2.Excavate 2 holes on site of
installation approximately
600mm deep ( adjust depth
according to age range for
intended players)
3. Carefully raise the
instrument from the ground
with legs attached and locate
(lower) legs into holes making
sure they are vertical and level
prior to concreting in place.
(See Ground Fix Sheet)
4. Once happy with location
and levels, fill holes using
rapid hardening concrete. Be
sure to compact concrete
around legs and leave to dry
according to manufactures
guidelines
9.6kg (Wooden Posts Each)
Pair Small
Beaters X1
5. Beaters can be fixed to
wooded posts with fixings
provided
1.5m
Ground Surface
KS1 – 700mm
KS2 – 850mm
Spares available form
percussionplay.com
Install Instrument
with 1.5m free space
(from widest point)
around it.
1.5m
KS1,2,
600mm
28-32 Kg
or from your
local distributor
