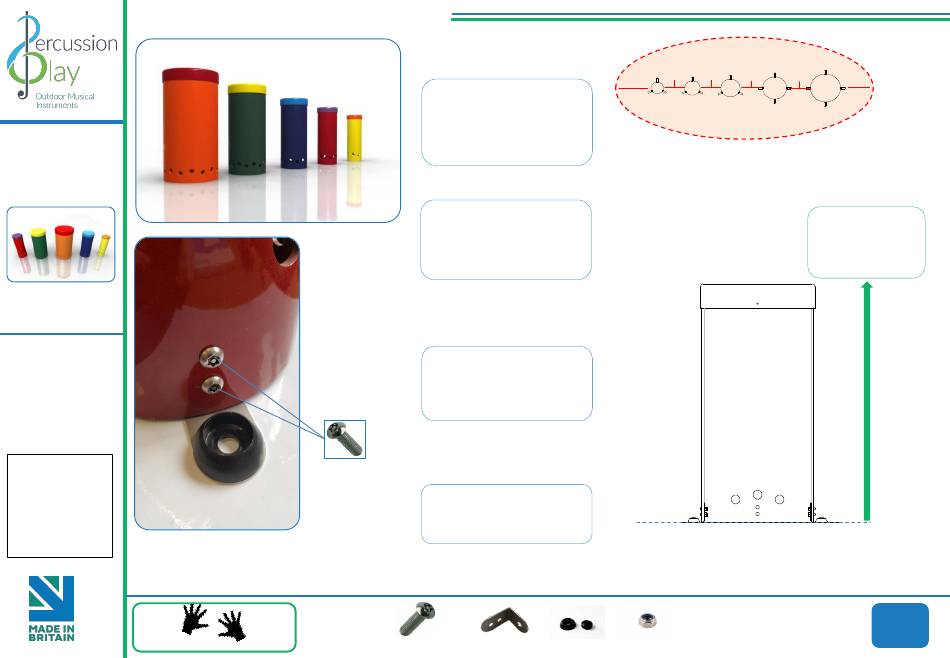

Percussion Play Rainbow Sambas Installation Instructions

Installation Instructions

Surface Fixed
Rainbow Sambas
Page 1 of 2
Instrument
Components:

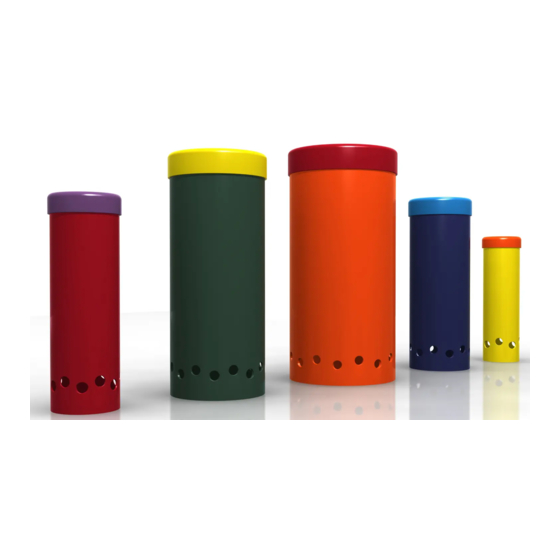

Rainbow
Sambas
are pre-
assembled
Metric Conversion:
80mm/ 3"
100mm/ 4"
230mm/ 9"
300mm/ 12" (1.1)
400mm/ 16"
450mm/ 18"
1.5m/ 59"
Weight of heaviest part
Played with hands
BS EN 1176
1. Assemble fixing brackets
to base of sambas using
M8x25mm security screws
and nyloc nuts. (1.1)( See
Assembly Guide)
2.Arrange Sambas in desired
location and mark holes to fix
to desired surface.
3. Fix to Surface using
recommended ground
anchors (Ground Anchors are
not supplied)
4. Make sure all fixings are
covered and secure using
cover caps provided
14.6kg (XL Samba)
Ground Fix Ground Fix
Components: Components:
M8x25 Security Screw
x34
x17
x17
2 Part M12
L Brackets
Cover Cap
230mm 230mm
230mm
230mm
1.5m
Ground Surface
Spares available from
x34
percussionplay.com
local distributor
M8 Nyloc Nut
1.5m
Install Instrument
with 1.5m free space
(from widest point)
around it.
Sambas will arrive
on site in pre set
heights.
47 Kg
or from your
