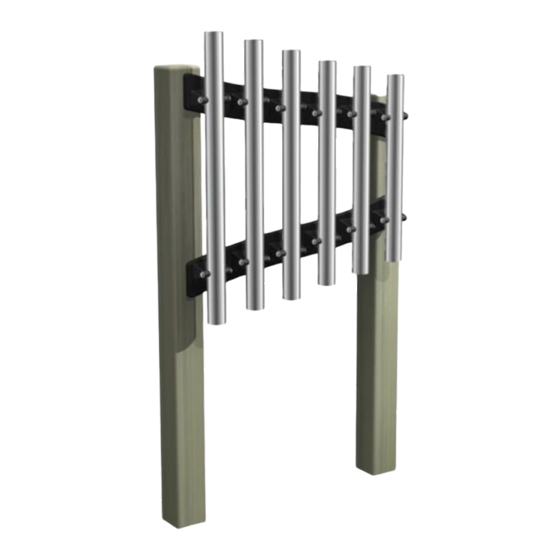

Percussion Play Freechimes Alto Installtion Instructions

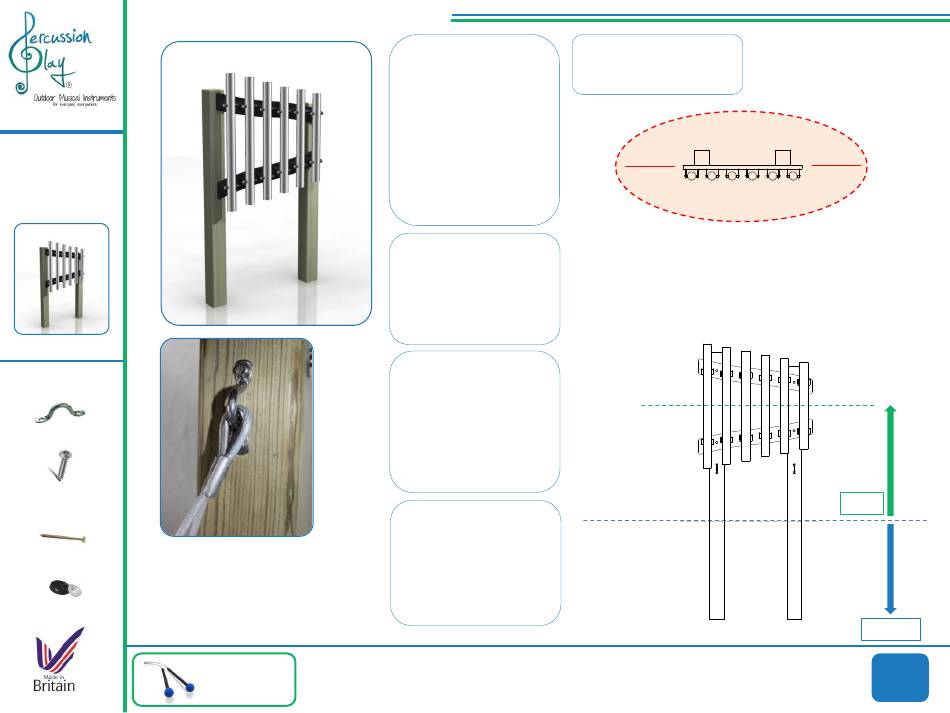

Installation Instructions
Ground Fixed
Freechimes
Alto/ Soprano
Page 1 of 3
Components:
Eye Straps
X2
10x38mm
Secure Screw
X4
5x70mm
Screw X4
2 Part Caps X4
Weight of heaviest part
BS EN 1176
1. Carefully lay 2 x legs on a
level surface and check
distance between legs is
equal. Line up pre drilled
holes in the backboards
with the legs and ensure
the instrument is aligned
square with the legs. Fix in
place using 8x70mm screws
supplied (see installation
guide)
2.Excavate 2 holes on site
of installation
approximately 600mm
deep ( adjust depth
according to age range for
intended players)
3. Carefully raise the
instrument from the
ground with legs attached
and locate (lower) legs into
holes making sure they are
vertical and level prior to
concreting in place. (See
Ground Fix Sheet)
4. Once happy with location
and levels, fill holes using
rapid hardening concrete.
Be sure to compact
concrete around legs and
leave to dry according to
manufactures guidelines
9.6kg (Wooden Posts Each)
Pair Small
Beaters X1
5. Beaters can be fixed to
wooded posts with fixings
provided
1.5m
Ground Surface
KS1 – 700mm
KS2 – 850mm
Spares available form
percussionplay.co.uk
your local distributor
Install Instrument
with 1.5m free
space (from widest
point) around it.
1.5m
KS1,2,
600mm
28 Kg
or from
