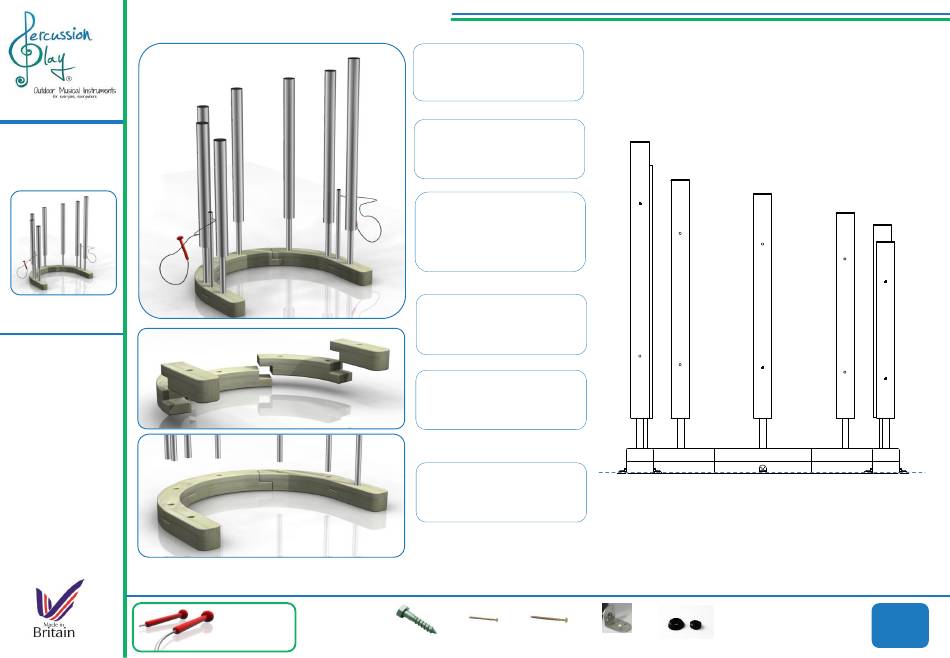

Installation Instructions
Surface Fixed
Tubular Bells
Page 1 of 2
Instrument
Components:

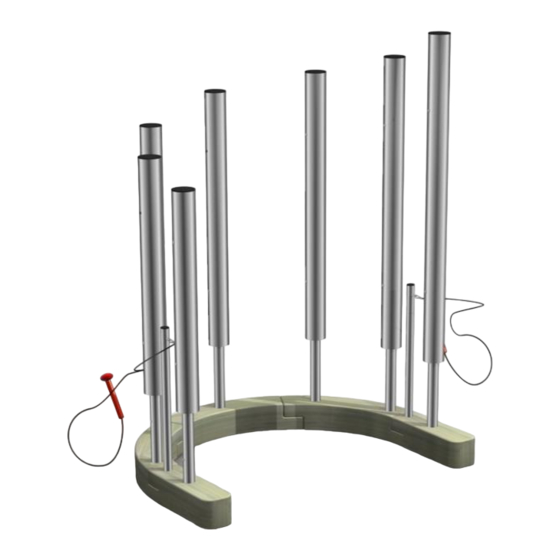

Tubular Bells
are pre-
assembled
Weight of heaviest part
BS EN 1176
31kg
(Wooden Base)
Ground Fix
Pair Large Red
Beaters X1
Components:
M8x50 Coach Screw
1. Assemble 5 sections of
wooden Base using screws
provided
2.Attach Surface fixing
brackets to the base using the
coach screws
3.Locate Base in desired
location and mark holes to fix
to desired surface.
4. Fix to Surface using
recommended ground
anchors not supplied
5. Make sure all fixings are
covered and secure using
cover caps provided
6. Insert Tubular Bells into
base an fix in place using
screws provided.
x6
x9
x10
6x120 Screw
L Brackets
5x70 Screw
Tubular Bells will arrive on
site in pre assembled
Spares available form
x6
x6
percussionplay.co.uk
or from your
local distributor
2 Part Cover Cap
Ground Surface
89 Kg
