Percussion Play Babel Drum Installation Instructions Manual

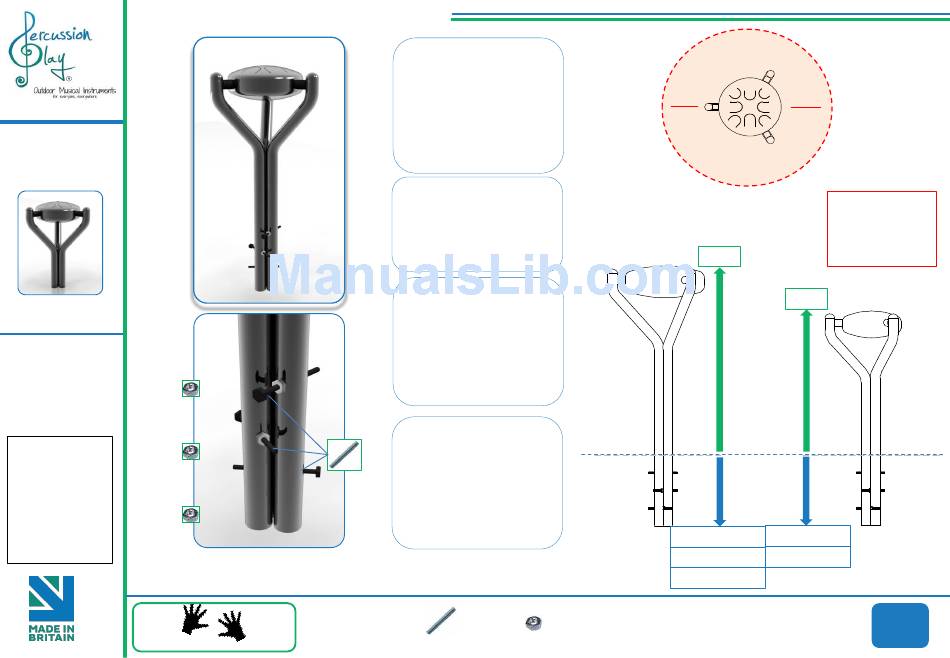

Installation Instructions

Ground Fixed

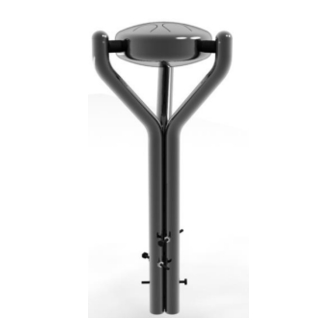

Babel Drum
Page 1 of 3
Instrument
Components:
x2
Babel Drums
are pre-
assembled
Metric Conversion:
x2
200mm/ 8"
400mm/ 16"
570mm/ 22"
600mm/ 24"
700mm/ 28"
x2
770mm/ 30"
870mm/ 34"
1070mm/ 42"
1.5m/ 59"
Weight of heaviest part
Weight of heaviest part
Played with hands
BS EN 1176
1. Using M10 nuts and
150mm bolts supplied locate
through pre drilled holes and
secure bolts in place to
support in ground pole in
concrete. 3 bolts per leg at
120 degree angles. ( See
Assembly Guide)
2.Excavate a hole for the
drum 200mm diameter by
KS2-400/KS1-570mm deep in
desired location upon decision
from customer.
3. Locate (lower) legs into hole
making sure they are vertical
and level prior to concreting in
place. Drum should be
700,870 from ground surface
to top of drum ( depending on
Key Stage).
4. Once happy with location of
the Drum, fill hole using rapid
x3
hardening concrete. Be sure to
compact concrete around legs
and leave to dry according to
manufactures guidelines.
17.5kg (Large Babel Drum)
13.4kg (Small Babel Drum)
Ground Fix
Components:
M10x200 Threaded bar
KS1 – 700mm
KS2 – 870mm
Adult- 1070mm
Ground Surface
Large 8 note
x3
x6
M10 BZP Nut
Install Instrument
1.5m 1.5m
with 1.5m free space
(from widest point)
around it.
CAUTION: Drum
surface can get hot
in direct sunlight, if
possible install in
shaded areas.
Adult
KS2
KS2 400mm Small 6 note
Adult 400mm
KS2 570mm
KS2 600mm
KS1 770mm
Spares available form
percussionplay.com
or from your
local distributor
22 Kg
13.4 Kg
