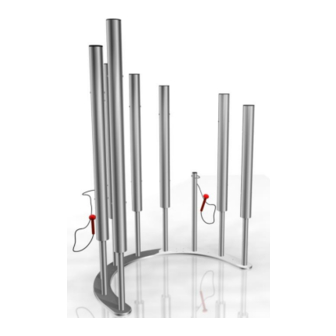

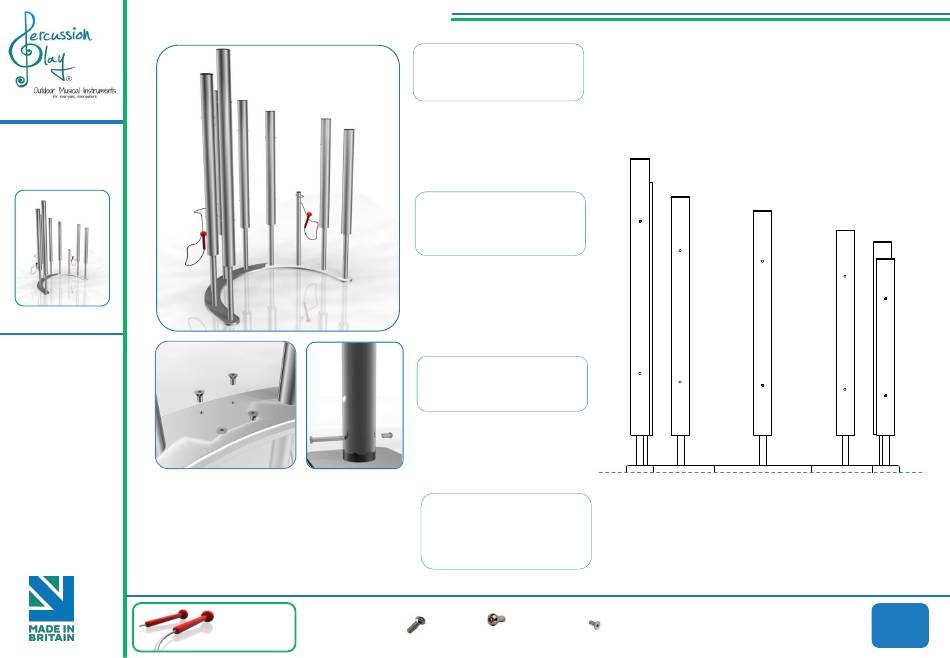

Installation Instructions
Surface Fixed
Tubular Bells
Page 1 of 2
Instrument
Components:
1.1
Tubular Bells
are pre-
assembled
Weight of heaviest part
BS EN 1176
1.2
30kg
(ALU Base)
Surface Fix
Pair Large Red
Components:
Beaters X1
M10x40 Security Screw
1. Assemble 3 Base sections
using M10 x 20 mm CSK
screws provided (1.1)
2.Locate Base in desired
location and before attaching
the bells.
3. Using the M10x 40 screw and
Barrel Nuts to attach each of
the 9 legs to the base (1.2)
4. Make sure that all fixings are
tightly secured and thread
locking solution used if
required.
x9
x9
M10 Barrel Nut
M10x20 CSK Security Screw
Tubular Bells will arrive on
site in pre assembled
Spares available from
percussionplay.com
x8
local distributor
Ground Surface
90 Kg
or from your
Advertisement
Related Manuals for Percussion Play Surface Fixed Tubular Bells
Summary of Contents for Percussion Play Surface Fixed Tubular Bells
- Page 1 Installation Instructions Tubular Bells will arrive on 1. Assemble 3 Base sections site in pre assembled using M10 x 20 mm CSK screws provided (1.1) Surface Fixed Tubular Bells Page 1 of 2 2.Locate Base in desired location and before attaching the bells.
- Page 2 Assembly Guide TBEL SF Tools: TX 45 Driver Bit Surface Fixed Tubular Bells Page 2 of 2 COMPONENTS LIST: M10 Barrel Nut Pin torx X9 M10x20 CSK Nut Socket X8 M10x40 Pin torx X9 Instrument Components: Tubular Bells Are Pre- assembled Spares available from Surface Fix...
