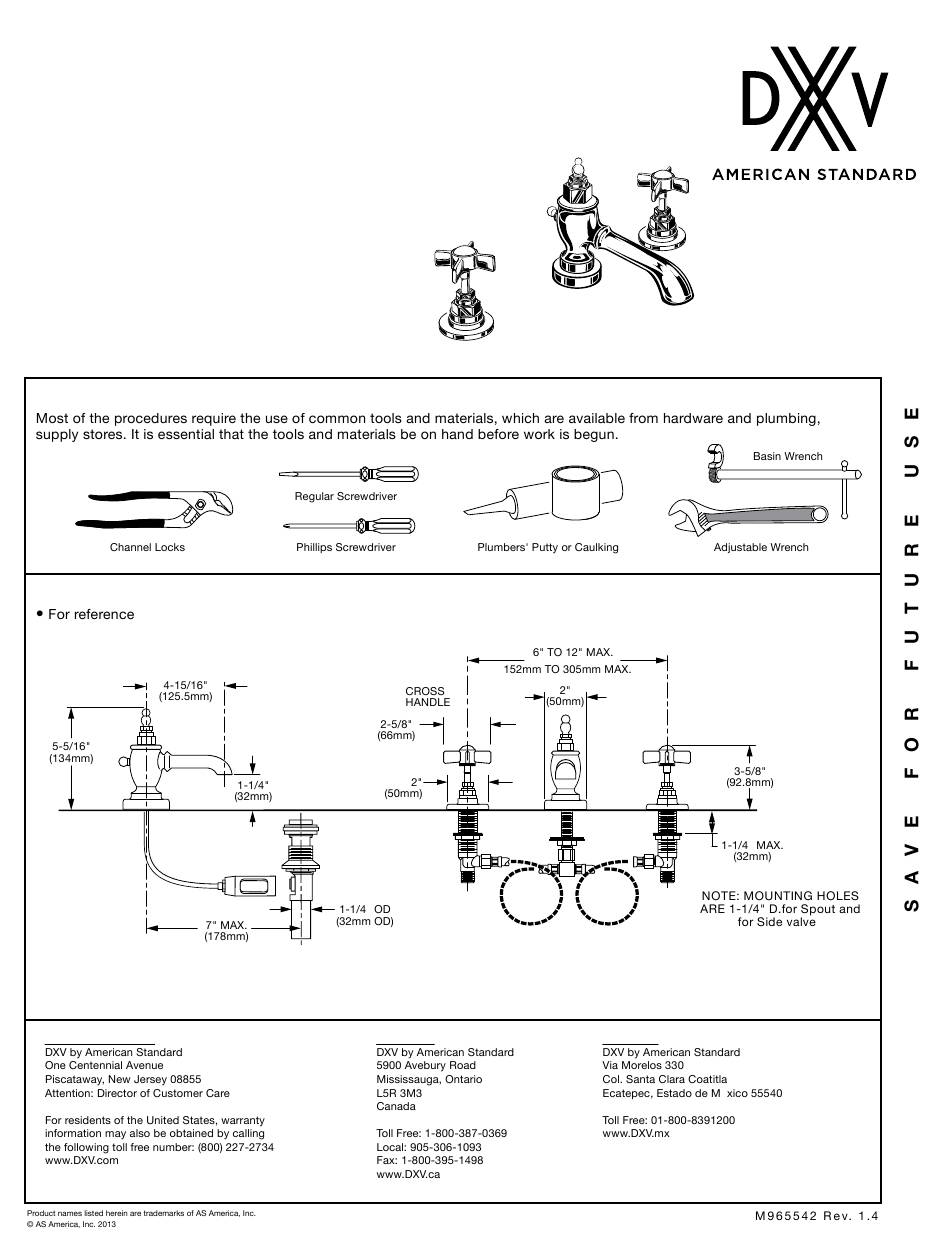

INSTALLATION INSTRUCTIONS
™
Landfair
Cross Widespread Lavatory Faucet
Model D35107.840
Thank you for selecting DXV by American Standard.
To ensure that your installation proceeds smoothly,
please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
ROUGHING-IN DIMENSIONS:
In the United States:
(
"
In Canada:
- 1 -
)
"
In Mexico:
é
Advertisement
Table of Contents
Related Manuals for DXV Landfair D35107.840
Summary of Contents for DXV Landfair D35107.840
- Page 1 INSTALLATION INSTRUCTIONS ™ Landfair Cross Widespread Lavatory Faucet Model D35107.840 Thank you for selecting DXV by American Standard. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS ROUGHING-IN DIMENSIONS: "...
- Page 2 Turn off hot and cold water SPOUT ASSEMBLY TEE ASSEMBLY CAUTION supplies before beginning. slot SLOT INSTALL VALVE BODIES REMOVE HANDLE ASSEMBLIES FROM VALVE BODIES Note: VALVE BODY marked Hot (RED DOT) is installed in the left mtg. hole, VALVE BODY marked Cold (BLUE DOT) in the right when facing front of fitting.Maximum mounting surface thickness is 1-1/4"...
- Page 3 INSTALL HANDLES AND SUPPLY HOSES INSTALL HANDLES (5). INSTALL SUPPLY HOSES Important: Loop SUPPLY HOSES (10) as illustrated so they do not kink. INSTALL POP-UP DRAIN Fig. A. Fig. B. (1) Fig. A. DRAIN BODY (3) Fig. A. Fig. B. REMOVE MOUNTING WASHERS Fig.
- Page 4 FLANGE GASKET AND POP-UP KNOB Fig. A. Fig. B. DOWN Fig. A. Fig. B. WHITE FOAM GASKET NOT VISIBLE DRAIN FLANGE ATTACH CABLE CONNECTOR Fig. A. Fig. B. Fig. A. Fig. B. Note: 1-1/4” O.D. Fig. B. (32mm) CHECK OPERATION OF POP-UP Note: MAKE WATER SUPPLY AND WASTE CONNECTIONS NOTE: FLEXIBLE SUPPLIES OR BULL-NOSE RISERS NOT INCLUDED...
- Page 5 CONNECT DRAIN WASTE OUTLET 1-1/4” O.D. TAILPIECE TEST INSTALLED FITTING CHECK DRAIN CONNECTIONS WASTE OUTLET COLD “P” TRAP - 5 -...
- Page 6 ® Speed Connect Drain Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: If Stopper does not raise up fully or sink drains too slowly: If you need to remove the Stopper: If you would like the ability to remove your Stopper simply by lifting it out of the drain: “Unlocked”...
- Page 7 STOPPER INSTALLATION PROCEDURE The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed) or “Unlock” Mode (Stopper is removable). Locked Mode: Fig. G. Fig. G. “Locked” rear Fig. G. Fig. J. LOOP TOWARD REAR OF SINK DRAIN Fig.
- Page 8 ™ Landfair Cross Widespread Lavatory Faucet MODEL NUMBER D35107.840 M964707-YYY0A M964706-YYY0A M964705-0070A M964611-YYY0A M964540-0070A M964676-YYY0A M964718-YYY0A H960295.191 H960136.191 H960628.191 " H960742.191 M952430-0070A " H960279.191 M953006-0070A H960104.191 " H960741.191 " 874214.XXX - 8 -...
