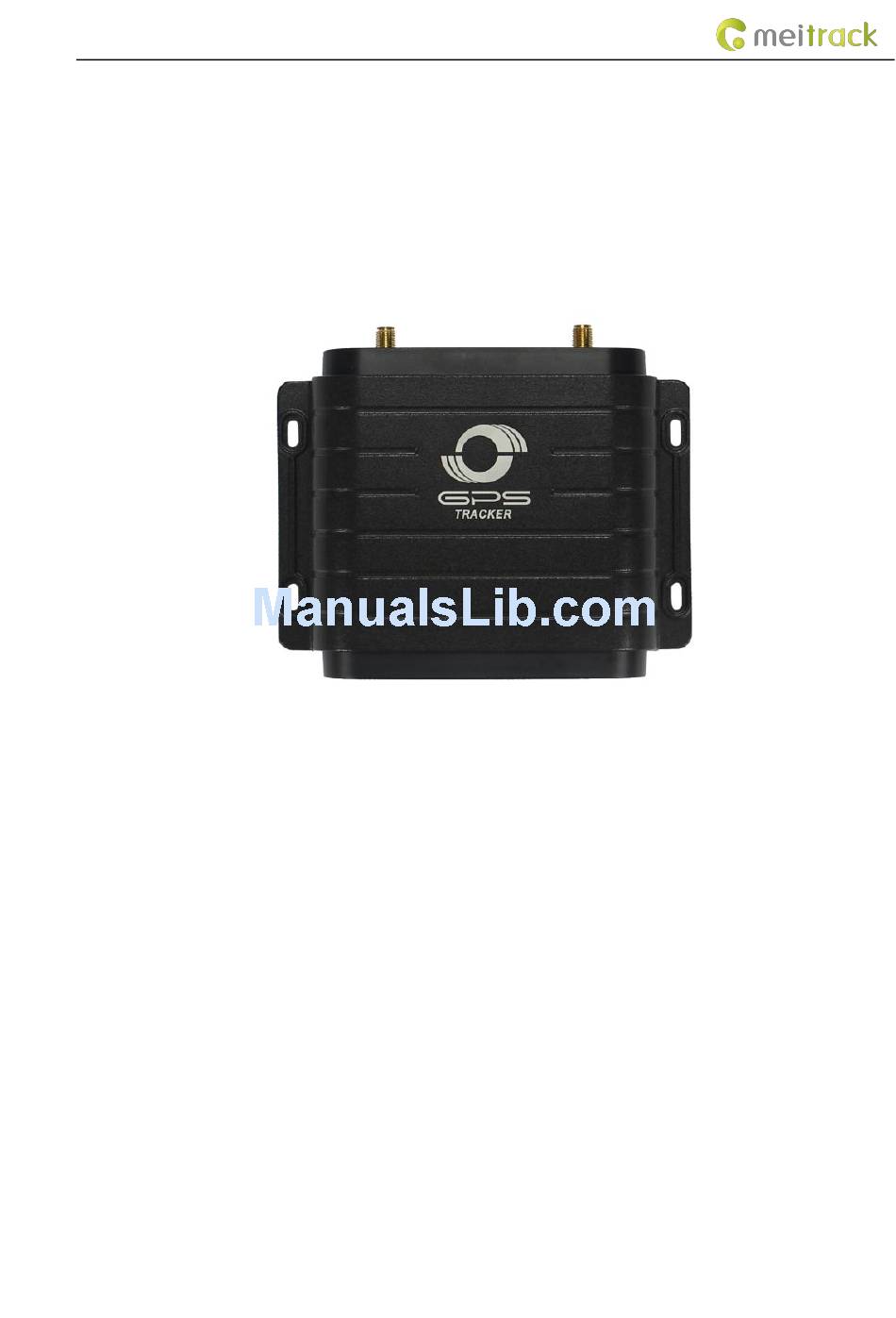

- Page 1 MEITRACK MVT600 User Guide MEITRACK MVT600 User Guide...
-
Page 2: Change History
Change History File Name MEITRACK MVT600 User Guide Created By Kyle Lv Project MVT600 Creation Date 2010-08-30 Update Date 2018-01-03 Subproject User Guide Total Pages Version V3.5 Confidential External Documentation Copyright © 2018 Meitrack Group All rights reserved. - 2 -... -
Page 3: Table Of Contents
6.1 Installing the SIM Card ................................- 7 - 6.2 Charging the Device ................................- 8 - 6.3 LED Indicator ..................................- 8 - 6.4 Configuring Device Parameters by Meitrack Manager .......................- 8 - 6.5 Tracking by Mobile Phone ..............................- 9 - 6.6 Common SMS Commands ..............................- 10 - 6.6.1 Setting Authorized Phone Numbers –... -
Page 4: Copyright And Disclaimer
2 Product Overview The MVT600 is a high-end GPS vehicle tracker supporting GPS, GSM, and GPRS functions. It can connect to a variety of peripherals, such as the camera, handset, LCD display, LED display, and RFID reader. This ensures high expansion. -
Page 5: Functions Of Optional Accessories
8 MB buffer Sensor 3-axis accelerometer (used to wake the device up by vibration and detect towing alarms) GSM frequency band GSM 850/900/1800/1900 MHz GPS sensitivity -161 dB Positioning accuracy Copyright © 2018 Meitrack Group All rights reserved. - 5 -... -
Page 6: Mvt600 And Accessories
RFID reader A21 LCD display (dialing and SMS display) A53 fuel level sensor cameras) A52 digital temperature sensor + A61 sensor LED display iButton box (at most 8 temperature sensors) Copyright © 2018 Meitrack Group All rights reserved. - 6 -... -
Page 7: Appearance
Ensure that the phone card PIN lock has been closed properly. Ensure that the SIM card in the device has subscribed the caller ID service if you want to use your authorized phone number to dial the device. Copyright © 2018 Meitrack Group All rights reserved. - 7 -... -
Page 8: Charging The Device
Blink (1 second on and 2 seconds off) No GSM signal is received. 6.4 Configuring Device Parameters by Meitrack Manager This section describes how to use Meitrack Manager to configure the device on a computer. Procedure: Install the USB-to-serial cable driver and Meitrack Manager. -
Page 9: Tracking By Mobile Phone
MEITRACK MVT600 User Guide Turn on the device, then Meitrack Manager will detect the device model automatically and the parameter page will appear accordingly. For details about Meitrack Manager, see the MEITRACK Manager User Guide. 6.5 Tracking by Mobile Phone Call or send the 0000,A00 command by SMS to the device's SIM card number. -
Page 10: Common Sms Commands
Reply: 353358017784062,A71,OK 6.6.2 Setting the Smart Sleep Mode – A73 SMS sending: 0000,A73,Sleep level SMS reply: IMEI,A73,OK Description: When the sleep level is 0 (default value), disable the sleep mode. Copyright © 2018 Meitrack Group All rights reserved. - 10 -... -
Page 11: Logging In To Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 12: Installing An I/O Cable
Connect to an external relay to remotely cut off the vehicle fuel cable or engine power supply. 8 (AD Input 1) Blue Analog input 1 with 12-bit resolution and valid voltage 0–6 V Copyright © 2018 Meitrack Group All rights reserved. - 12 -... -
Page 13: Wiring Diagram
Connect the power cable (red) and ground wire (black) to the positive and negative charges of the vehicle battery respectively. 8.3.2 Checking Vehicle Door Status and Trunk Status (Pin 4/5, Negative Trigger) Copyright © 2018 Meitrack Group All rights reserved. - 13 -... -
Page 14: Checking Engine Status (Pin 3, Positive Trigger)
Pin 10 is connected to the A53 fuel level sensor by default. You can install the sensor without calculation formula added on the platform. For details, see the MEITRACK Fuel Level Sensor User Guide. Pin 12 is connected to A61+A52 temperature sensor or iButton by default. For details, see the MEITRACK Temperature Sensor User Guide and MEITRACK iButton User Guide. -
Page 15: Installing A Camera (Rs232 Port)
Negative charge of the speaker Note: The RS232 port supports peripherals, such as the A21 LCD display and LED display. For details about peripheral functions, see the MEITRACK LCD Display User Guide or MEITRACK LED Display User Guide. 8.3.7 Installing a Camera (RS232 Port) -
Page 16: Installing The Micro Sd Card
Yellow Wiegand data 1 Remarks: The MVT600 RFID reader is not compatible with the T1 RFID reader. The T1 RFID reader is an RS232 port. For details about an RFID reader, see the MEITRACK RFID User Guide. 8.4 Mounting the MVT600 Tighten the four screws shown in the following figure. - Page 17 MEITRACK MVT600 User Guide If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2018 Meitrack Group All rights reserved. - 17 -...
