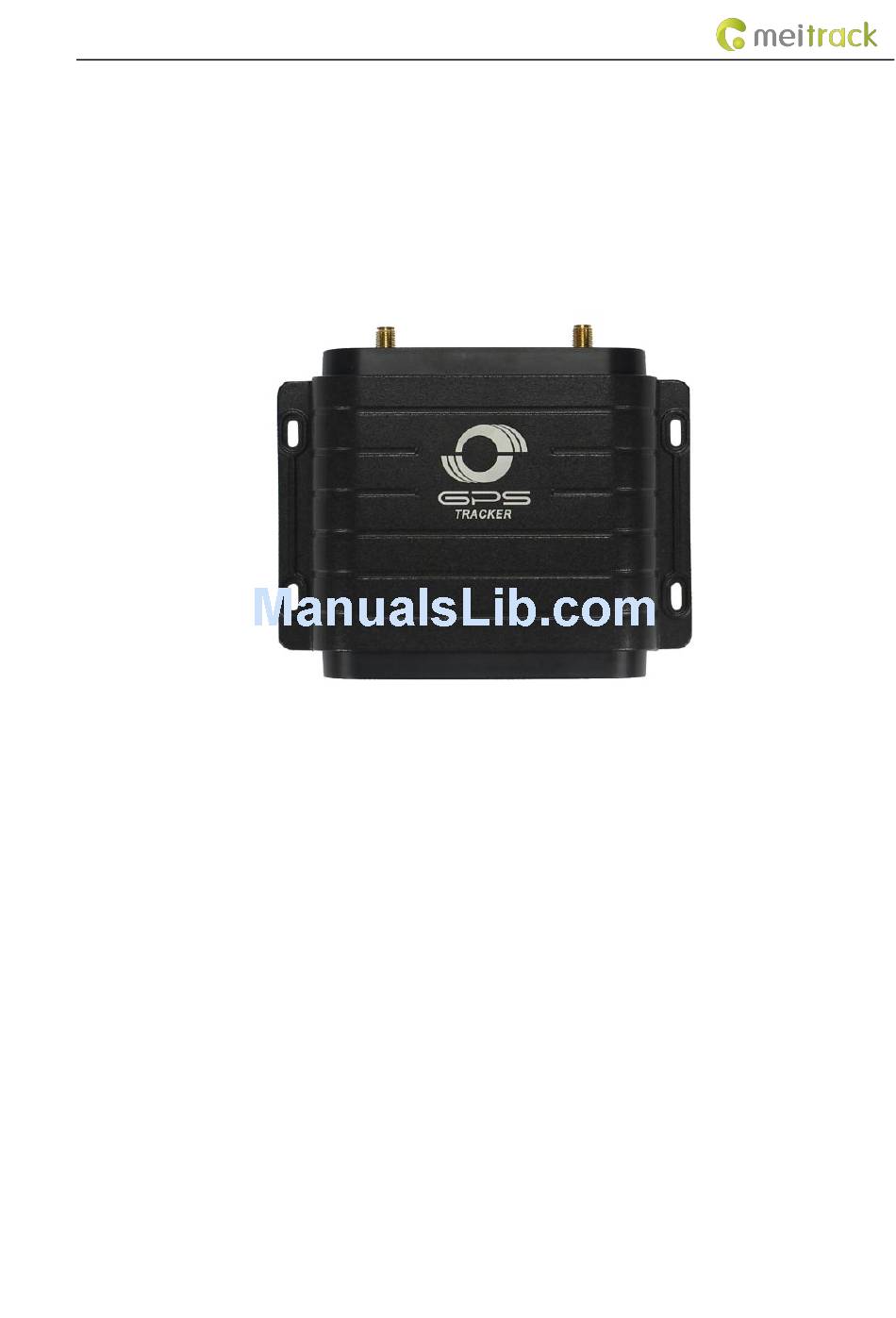

- Page 1 MEITRACK MVT600 User Guide MEITRACK MVT600 User Guide...
-
Page 2: Change History
Change History File Name MEITRACK MVT600 User Guide Created By Kyle Lv Creation Date 2010-08-30 Project MVT600 Update Date 2015-09-25 Subproject User Guide Total Pages Version V3.4 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -... -
Page 3: Table Of Contents
3.1.3 Functions of Optional Accessories ...........................- 5 - 3.1.4 Other Functions ...............................- 5 - 3.2 Specifications ..................................- 5 - 4 MVT600 and Accessories ................................- 6 - 5 Appearance....................................- 7 - 6 First Use ......................................- 7 - 6.1 Installing the SIM Card ................................- 7 - 6.2 Charging ....................................- 8 -... -
Page 4: Copyright And Disclaimer
2 Product Overview The MVT600 is a high-end GPS vehicle tracker supporting GPS, GSM, and GPRS functions. It can connect to a variety of peripherals, such as the camera, handset, LCD display, LED display, and RFID reader. This ensures high expansion. -
Page 5: Functions Of Optional Accessories
1 power button Memory 8 MB byte Sensor 3D acceleration sensor (for wake-up by vibration and towing alarms) GSM frequency band GSM 850/900/1800/1900 MHz GPS sensitivity -161 dB Positioning accuracy Copyright © 2015 Meitrack Group All rights reserved. - 5 -... -
Page 6: Mvt600 And Accessories
Handset RFID reader A21 LCD display (dialing and SMS display) A53 fuel sensor A52 digital temperature sensor + A61 sensor LED display iButton box (at most 8 temperature sensors) Copyright © 2015 Meitrack Group All rights reserved. - 6 -... -
Page 7: Appearance
Ensure that the phone card PIN lock has been closed properly. Ensure that the SIM card in the MVT600 has subscribed the caller ID service if you want to use your authorized phone number to dial the MVT600. ... -
Page 8: Charging
6.2 Charging When you use the MVT600 for the first time, connect the MVT600 GND (-Black) and Power (+Red) wires to 12 V or 24 V external power supply for charging. Ensure that the MVT600 is charged at least three hours. Eight hours are recommended. -
Page 9: Tracking By Mobile Phone
6.5 Tracking by Mobile Phone Call or send the 0000,A00 command by SMS to the MVT600 SIM card number. The device will reply an SMS with a map link. Click the SMS link. The location will be displayed on Google Maps on your mobile phone. -
Page 10: Common Sms Commands
The tracker works 25% longer in the normal sleep mode than that in the normal working mode. This mode is not recommended for short interval tracking; this will affect the route precision. Copyright © 2015 Meitrack Group All rights reserved. - 10 -... -
Page 11: Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 12: Installing An I/O Cable
Analog input 1 with 12-bit resolution and valid voltage 0–6 V 8 (AD Input 1) Blue Connect to an external sensor, such as the fuel sensor. Output 2 9 (Output2) Yellow Valid: low level (0 V) Invalid: open drain Copyright © 2015 Meitrack Group All rights reserved. - 12 -... -
Page 13: Wiring Diagram
Connect the power cable (red) and ground wire (black) to the positive and negative charges of the vehicle battery respectively. 8.3.2 Checking Vehicle Door Status and Trunk Status (Pin 4/5, Negative Trigger) Copyright © 2015 Meitrack Group All rights reserved. - 13 -... -
Page 14: Checking Engine Status (Pin 3, Positive Trigger)
Pin 10 is connected to the A53 fuel sensor by default. You can install the sensor without calculation formula added on the platform. For details, see the A53 Fuel Sensor User Guide. Pin 12 is connected to A61+A52 temperature sensor or iButton by default. For details, see the Meitrack Temperature Sensor User Guide and Meitrack iButton User Guide. -
Page 15: Installing A Camera (Rs232 Port)
MEITRACK MVT600 User Guide Orange RX, MVT600 receives data from the handset. Yellow TX, MVT600 sends data to the handset. Blue Positive charge of the microphone Green Negative charge of the microphone Purple Positive charge of the loudspeaker White Negative charge of the loudspeaker Note: The RS232 port supports peripherals, such as the A21 LCD display and LED display. -
Page 16: Installing The Micro Sd Card
Yellow Wiegand data 1 Remarks: The MVT600 RFID reader is not compatible with the T1 RFID reader. The T1 RFID reader is an RS232 port. For details about an RFID reader, see the RFID user guide. 8.4 Mounting the MVT600 Tighten the four screws shown in the following figure. - Page 17 MEITRACK MVT600 User Guide If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2015 Meitrack Group All rights reserved. - 17 -...
