Finally...

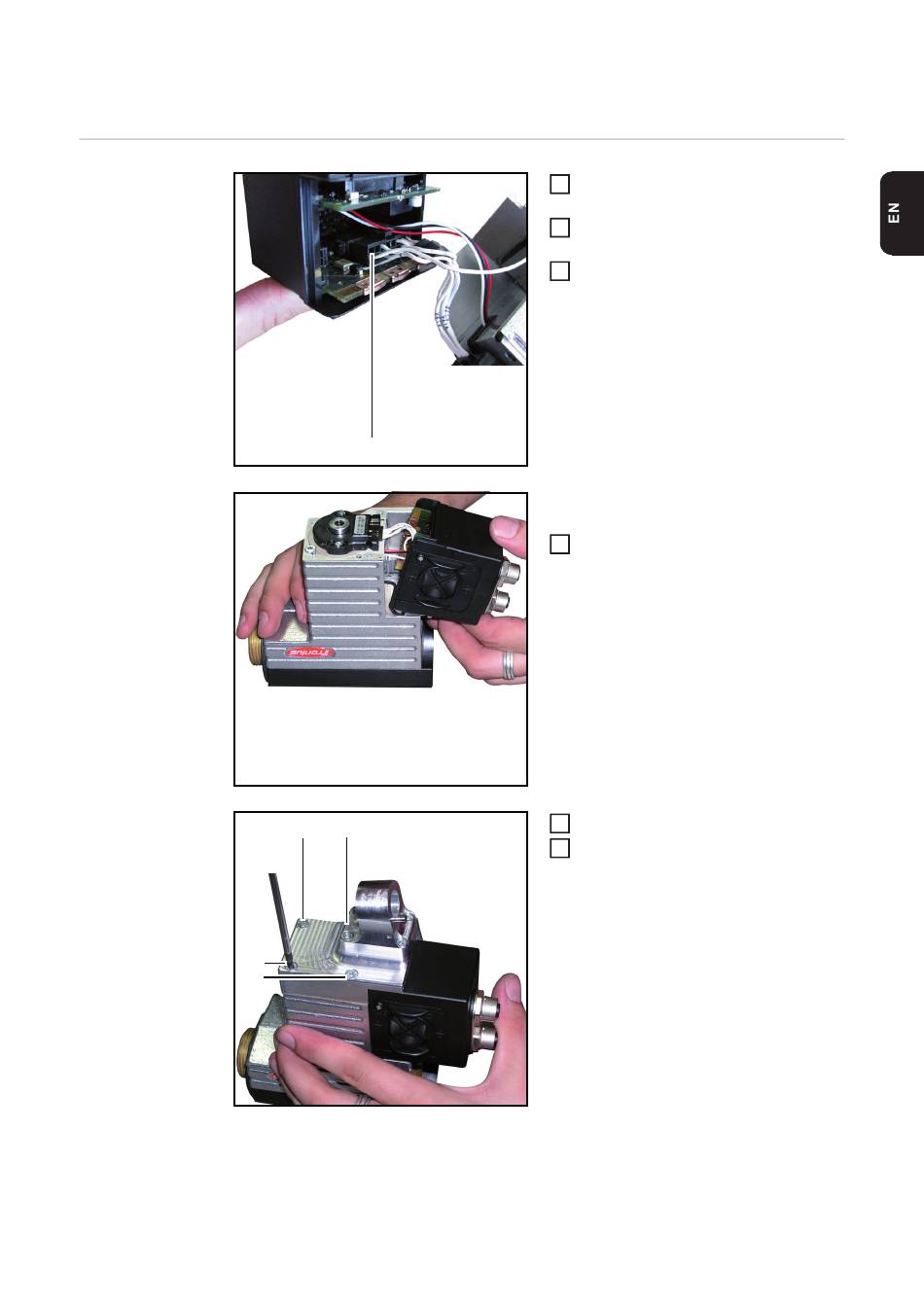

Reassemble the
drive unit
(2)
(2)
(1)
(2)
(2)
Connect the plug (1) to the RDIO 30 A
1
PC board
Disconnect the ENCODER adapter
2
from the drive unit
Disconnect the MOTOR adapter from
3
the electronics box
IMPORTANT! Ensure that the foam rubber
seal is in the slot for the electronics box.
Place the electronics box on the drive
4
unit
Locate the base plate
5
Fasten the base plate to the drive unit
6
with four screws (2)
- Tighten the screws diagonally
- Tightening torque = 3 Nm
