Control elements and connections
Control elements
and connections

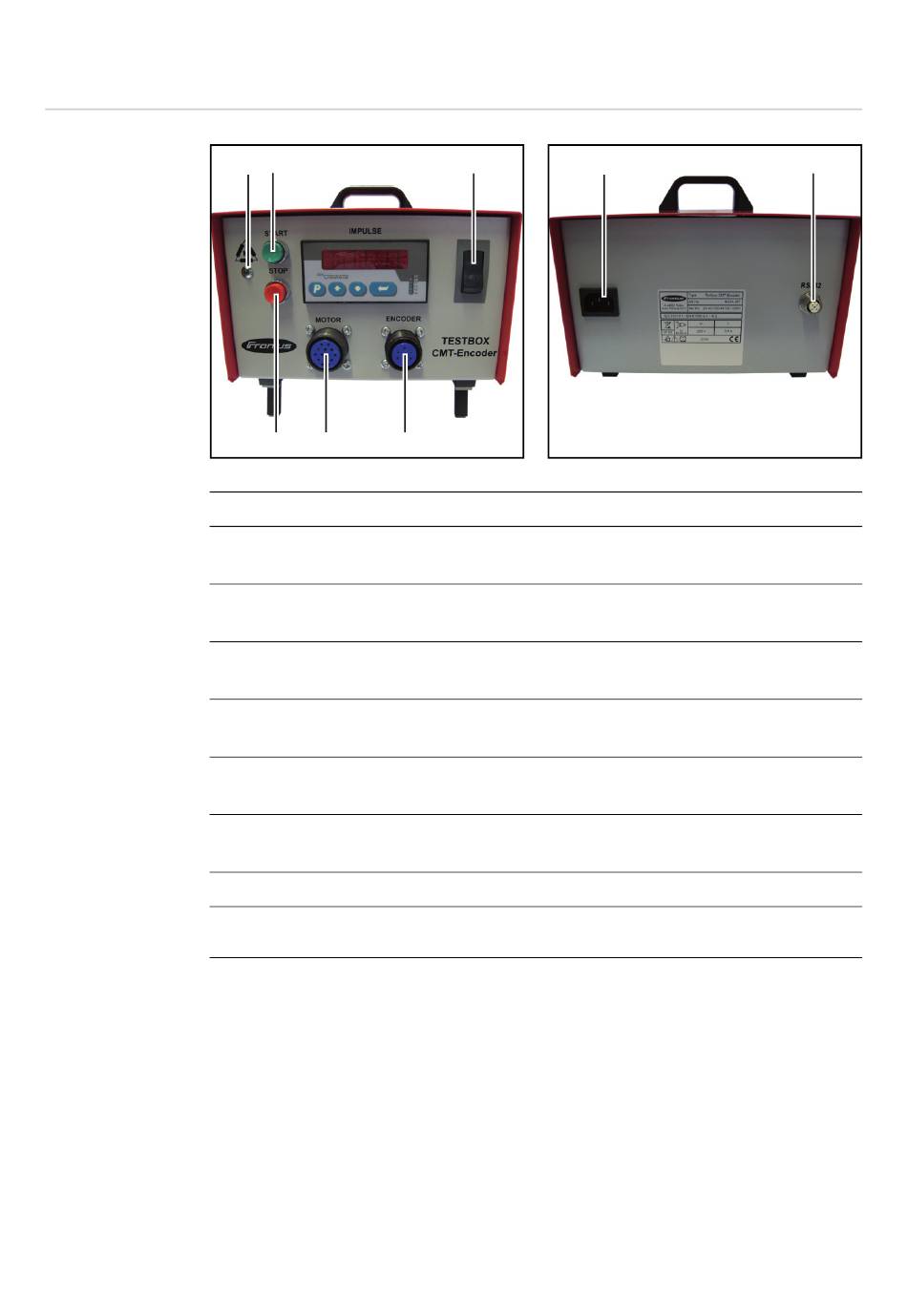

Front of the testbox
No.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
28
(1)
(2)
(6)
(5)
(4)
Function
'MOTOR WINDING OK' indicator light
Lights up to indicate that the drive unit motor windings are being powered correctly
START button
Switches the drive unit motor on
Mains switch
Switches the testbox on and off
ENCODER connection
For connecting the testbox to the drive unit encoder
MOTOR connection
For connecting the testbox to the drive unit motor
STOP button
Switches the drive unit motor off
Mains cable connection
Update connection
For software updates
(3)
(7)
Rear of the testbox
(8)
