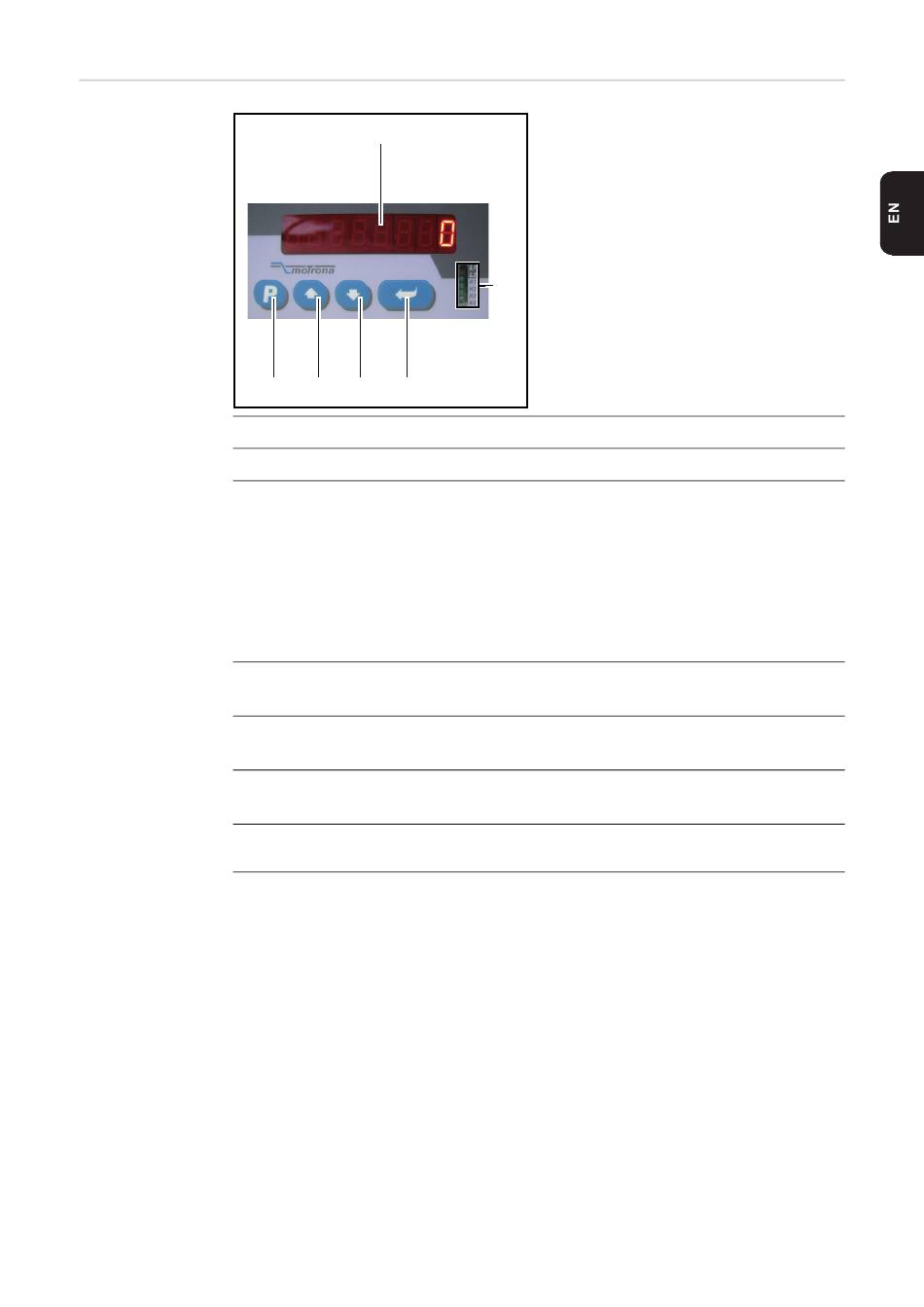

Display

No.
(1)
(2)
(3)
(4)
(5)
(6)
(1)
(6) (5) (4) (3)
Function
Display
LED L1, L2, K1 - K4
LED L1 flashes when the encoder is being set
LED L2 flashes when checking the encoder for index contact bounce
LED K1 lights up when a positive limit value is exceeded
LED K2 lights up when a negative limit value is exceeded
LED K3 has no function
LED K4 lights up when the index is counted several times (an index equates to a
complete rotation of the rotor shaft)
Enter key
To confirm a selection
Down key
To select a function
Up key
To select a function
P key
Has no function
(2)
