GET instruction

Using GET instruction, read from special module data.
*ANY: WORD, DWORD, INT, UINT, DINT, UDINT type available among ANY type
Input
REQ: execute function when 1
BASE: set base position
SLOT: set slot position
MADDR: module address
512(0x200) ~ 1023(0x3FF)
Output
DONE: output 1 when normal
STAT: Error information
DATA: data to read from module
Function
This instruction is used for reading data from designated special module.

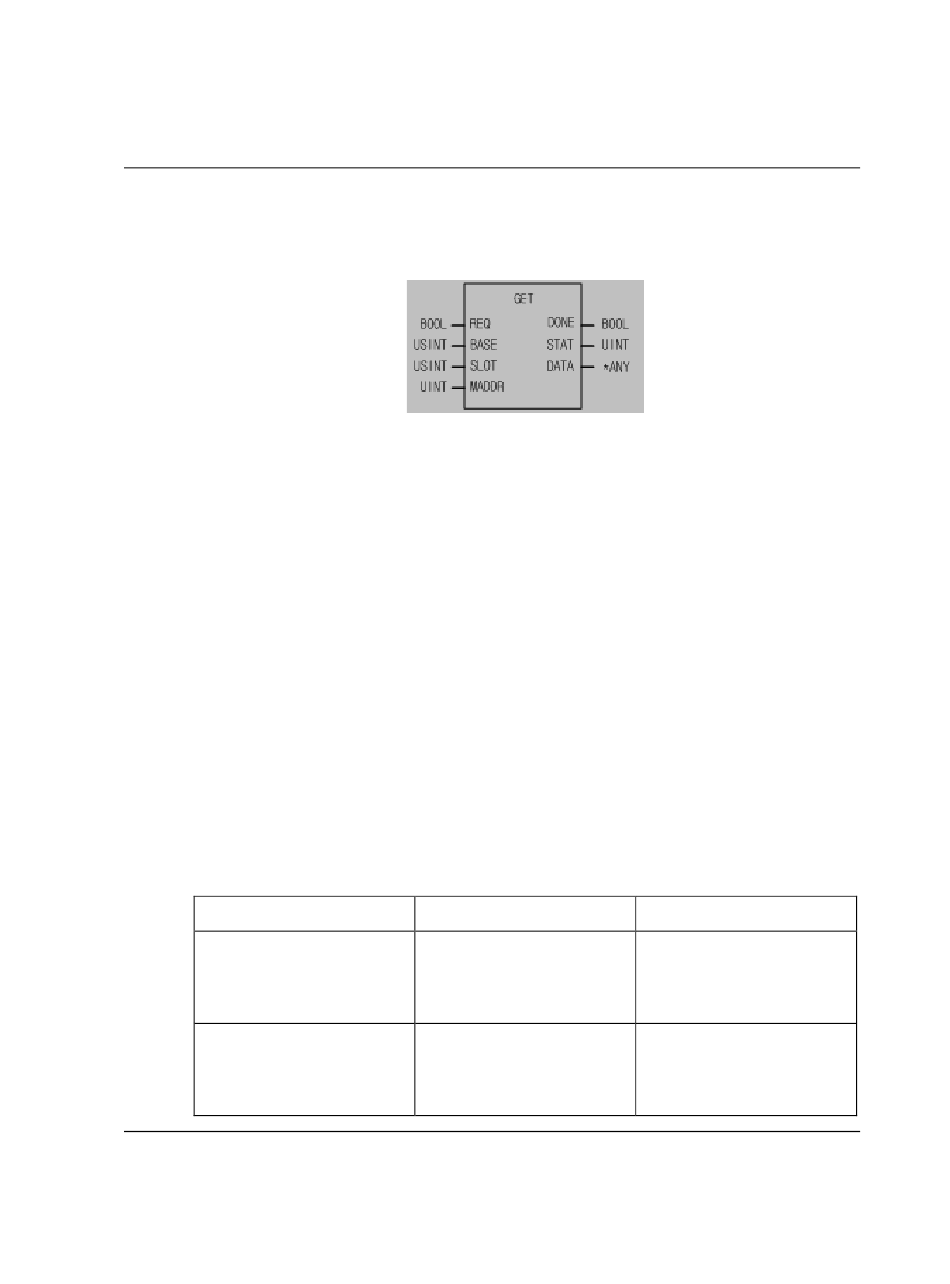

Function Block
GET_WORD
GET_DWORD
R200 Analog Input Module 2MLF-AV8A, AC8A User's Guide
September 2010
5. Configuration and Function of Internal Memory
5.5. PUT/GET function block use area (parameter area)
Output (ANY) Type
WORD
DWORD
Honeywell
Description
Read data as much as
WORD from the
designated module
address (MADDR).
Read data as much as
DWORD from the
designated module
address (MADDR).
