Special module monitoring

The special module monitoring function helps you to monitor the analog input modules
for testing. It also helps in tuning parameters like average processing constants.
To monitor and test the module, perform the following steps.
Step
1
Click Online > Connect. The SoftMaster is connected to PLC.
2
Click Monitor> Special Module Monitoring. The Special Module List
window appears. This window displays base/slot information in addition to
special module type.
3

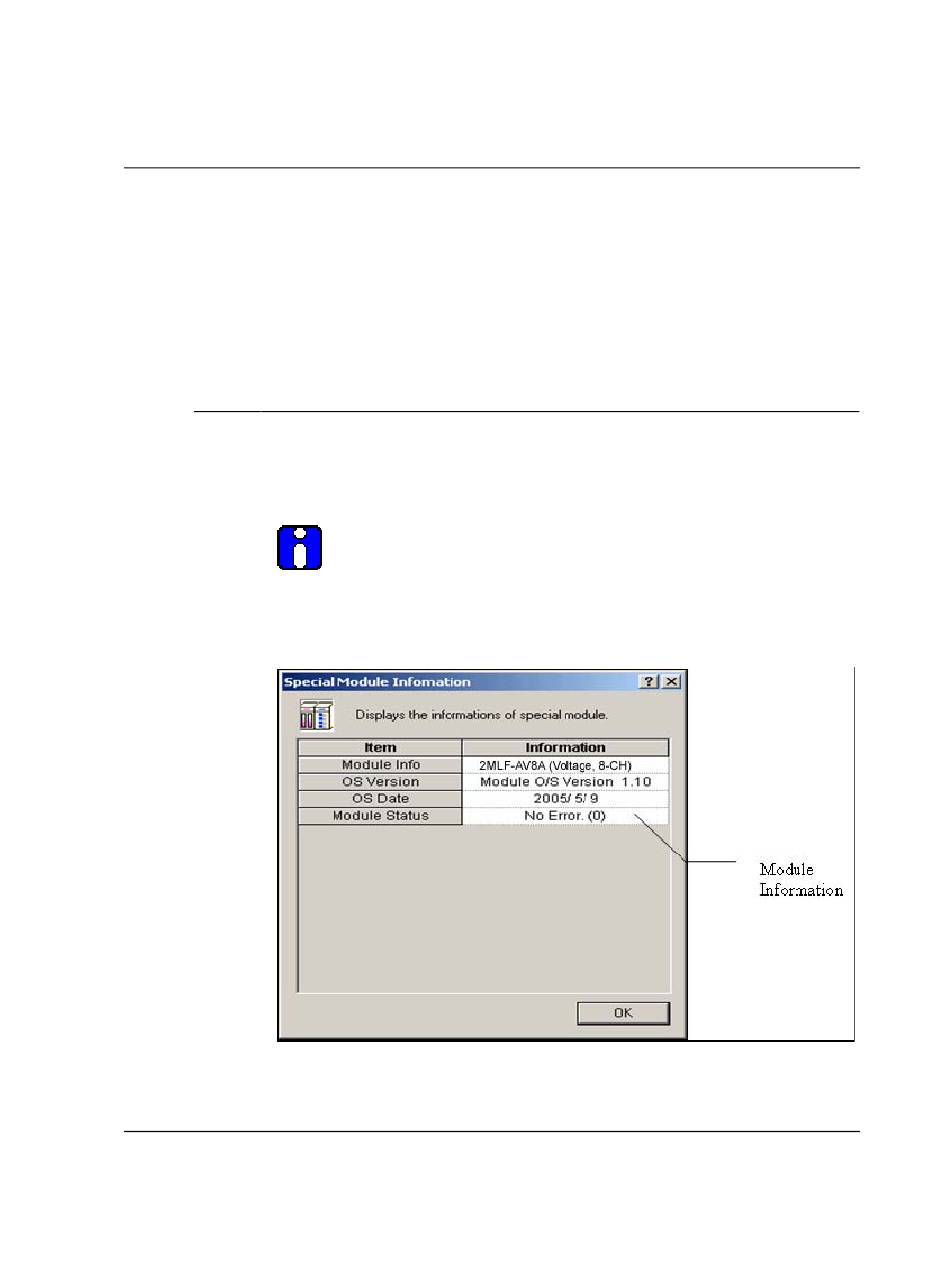

Click Module Info to display the module information as shown in the following
figure.
4
On the Special Module List window, select the module and click Monitor.
The Monitor Special Module window appears.
R200 Analog Input Module 2MLF-AV8A, AC8A User's Guide
September 2010
ATTENTION
If the module status is not Online, the Special Module Monitoring
menu is disabled.
